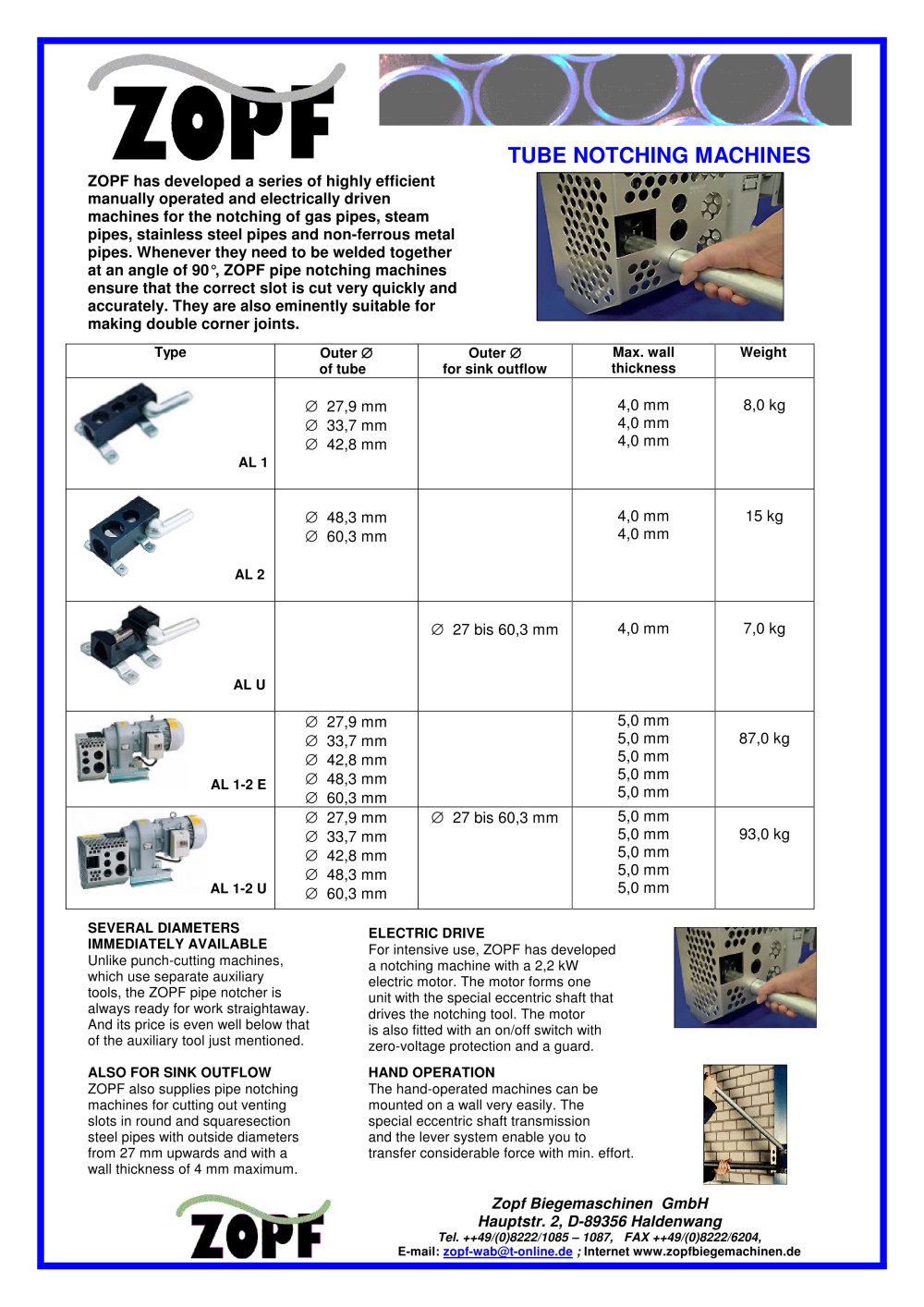

TUBE NOTCHING MACHINES ZOPF has developed a series of highly efficient manually operated and electrically driven machines for the notching of gas pipes, steam pipes, stainless steel pipes and non-ferrous metal pipes. Whenever they need to be welded together at an angle of 90°, ZOPF pipe notching machines ensure that the correct slot is cut very quickly and accurately. They are also eminently suitable for making double corner joints. Type Outer Æ of tube Outer Æ for sink outflow Max. wall thickness Weight AL 1 Æ 27,9 mm Æ 33,7 mm Æ 42,8 mm 4,0 mm 4,0 mm 4,0 mm 8,0 kg AL 2 Æ 48,3 mm Æ 60,3 mm 4,0 mm 4,0 mm 15 kg AL U Æ 27 bis 60,3 mm 4,0 mm 7,0 kg AL 1-2 E Æ 27,9 mm Æ 33,7 mm Æ 42,8 mm Æ 48,3 mm Æ 60,3 mm 5,0 mm 5,0 mm 5,0 mm 5,0 mm 5,0 mm 87,0 kg AL 1-2 U Æ 27,9 mm Æ 33,7 mm Æ 42,8 mm Æ 48,3 mm Æ 60,3 mm Æ 27 bis 60,3 mm 5,0 mm 5,0 mm 5,0 mm 5,0 mm 5,0 mm 93,0 kg SEVERAL DIAMETERS IMMEDIATELY AVAILABLE Unlike punch-cutting machines, which use separate auxiliary tools, the ZOPF pipe notcher is always ready for work straightaway. And its price is even well below that of the auxiliary tool just mentioned. ELECTRIC DRIVE For intensive use, ZOPF has developed a notching machine with a 2,2 kW electric motor. The motor forms one unit with the special eccentric shaft that drives the notching tool. The motor is also fitted with an on/off switch with zero-voltage protection and a guard. ALSO FOR SINK OUTFLOW ZOPF also supplies pipe notching machines for cutting out venting slots in round and squaresection steel pipes with outside diameters from 27 mm upwards and with a wall thickness of 4 mm maximum. HAND OPERATION The hand-operated machines can be mounted on a wall very easily. The special eccentric shaft transmission and the lever system enable you to transfer considerable force with min. effort. Zopf Biegemaschinen GmbH Hauptstr. 2, D-89356 Haldenwang Tel. ++49/(0)8222/1085 – 1087, FAX ++49/(0)8222/6204, E-mail: [email protected] ; Internet www.zopfbiegemachinen.de
