Mandrel-bendingmachines model ZB 54 H

Product catalog summary

Technical Specifications

Designed for bending profiles and tubes up to 54 mm.
Constructed for heavy-duty use.

Standard Equipment

Modern electromechanical movement.
SPS control unit for precise operations.
Electronic measurement of length and turning angle.
Manual stop system and hydraulic tube clamping.
Adjustable hydraulic pressure and clamping device.
External control unit with fast tool-changing capability.

Technical Data

Total power: 5.2 kW.
Connection: 400 V/50 Hz.
Bending direction: Left.
Bending speed: 28°/s.
Minimum bending radius: 40 mm.
Maximum bending radius: 150 mm.
Minimum tube diameter: 15 mm.
Maximum tube diameter: 54 mm.
Weight: 800 kg.
Dimensions: 2000 – 6000 x 750 x 1100 mm.

Control Unit Features

Positioning control with digital screen.
Indication of bending angle tolerance to 1/10 degree.
Automatic bending process with internal storage for 90 programs.
Programmable automatic mandrel return.

Options

Automatic tool return and fast tube clamping (manual/automatic).
Controlled stop system and automatic mandrel lubrication.
Foot pedal and mobility on wheels.
Pipe bending program available on CD.

Contact Information
Zopf Biegemaschinen GmbH, Hauptstr. 2, D-89356 Haldenwang
Tel: ++49/(0)8222/1085 – 1087, Fax: ++49/(0)8222/6204
Email: [email protected], Website: www.zopfbiegemaschinen.de

Catalog excerpts

total power connection bending direction left bending speed min.bending radius max. bending radius min.tube diameter max. tube diameter weight dimensions lxbxh kW V/Hz links >

Open the catalog to page 1

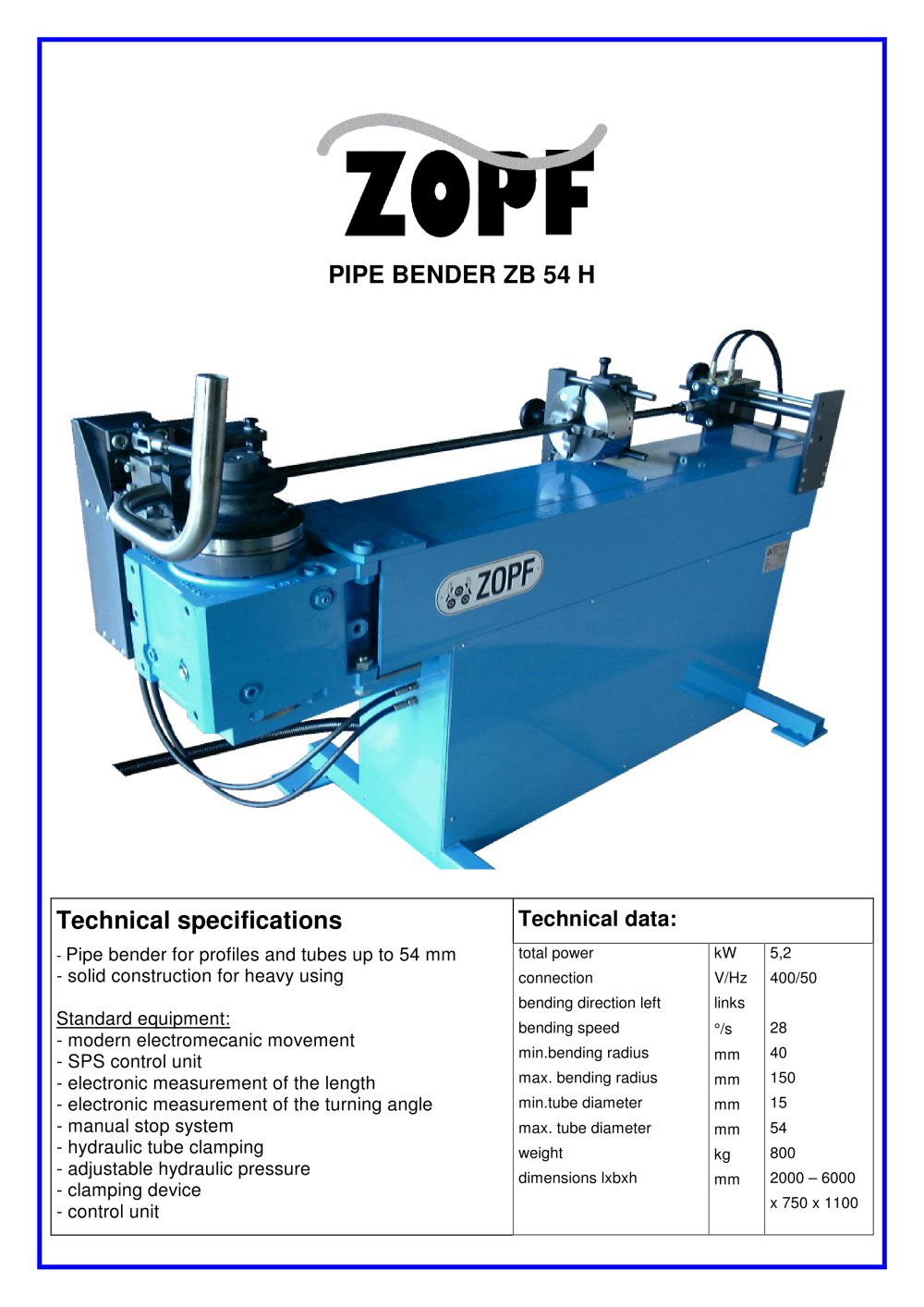

Pipe bender for profiles and tubes up to 54 mm solid construction for heavy using standard equipment: -electro-mecanic driving of the bending -SPS control unit -bending angle 0,1 degrees -electronic length and turning angle -manual stop system -hydraulic tube clamping -adjustable hydraulic pressure -programable mandrel return -tube clamping -external control unit -fast tool-changing options: -automatic tool return -fast tube clamping manual/automatic -controlled stop system -automatic mandrel lubrication -foot pedal -moveable on wheels -pipe bending program on CD control unit: -controlling of...
