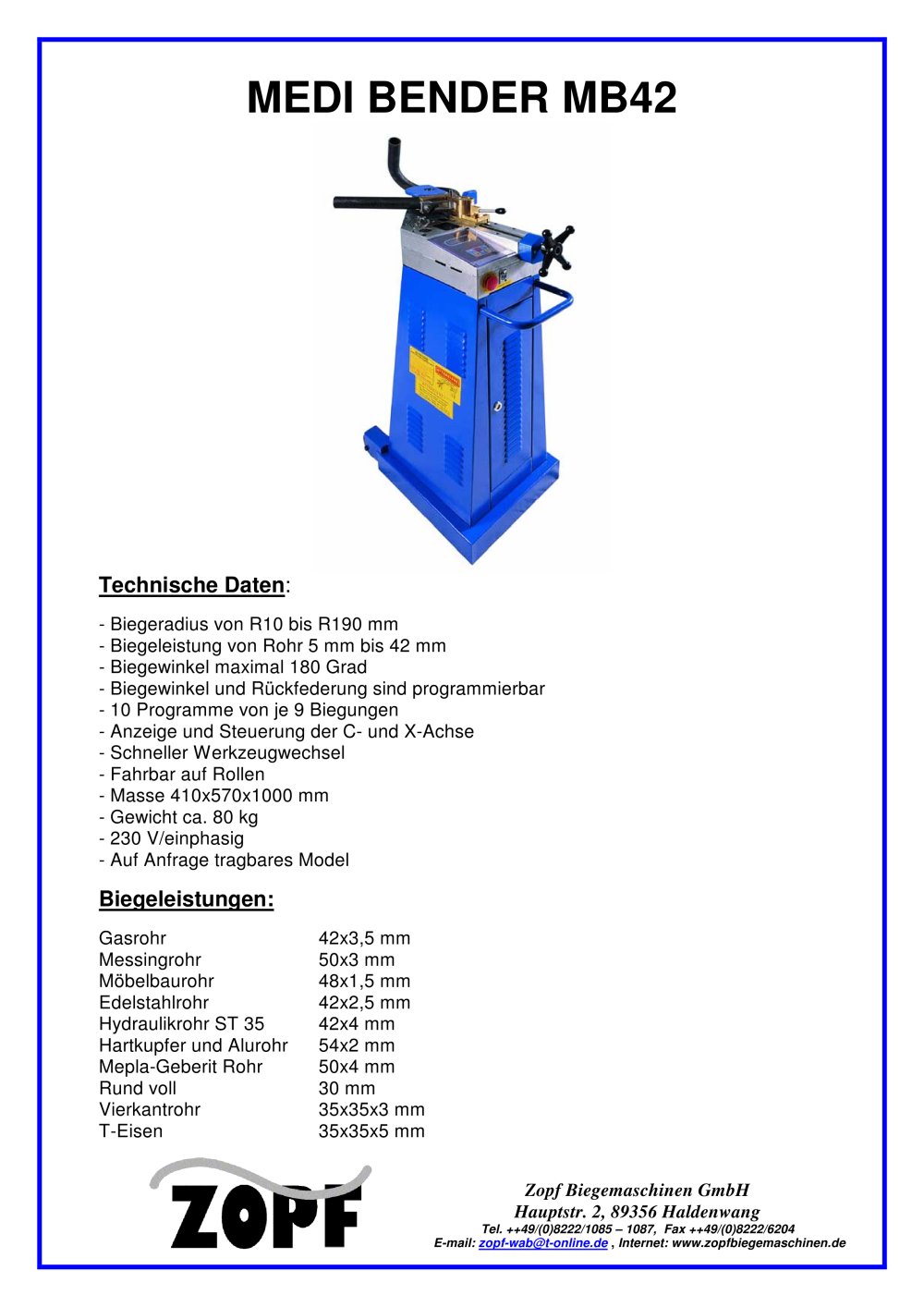

• Bending radius ranges from R10 to R190 mm.
• Capable of bending pipes from 5 mm to 42 mm in diameter.
• Maximum bending angle is 180 degrees.
• Bending angle and spring-back are programmable.
• Supports 10 programs with up to 9 bends each.
• Display and control of C- and X-axis.
• Quick tool change feature.
• Mounted on wheels for mobility.
• Dimensions: 410x570x1000 mm.
• Weight: approximately 80 kg.
• Power supply: 230 V/single-phase.
• Portable model available upon request.

• Gas pipe: 42x3.5 mm.
• Brass pipe: 50x3 mm.
• Furniture construction pipe: 48x1.5 mm.
• Stainless steel pipe: 42x2.5 mm.
• Hydraulic pipe ST 35: 42x4 mm.
• Hard copper and aluminum pipe: 54x2 mm.
• Mepla-Geberit pipe: 50x4 mm.
• Solid round: 30 mm.
• Square pipe: 35x35x3 mm.
• T-iron: 35x35x5 mm.

Zopf Biegemaschinen GmbH
Hauptstr. 2, 89356 Haldenwang
Tel: ++49/(0)8222/1085 – 1087
Fax: ++49/(0)8222/6204
Email: [email protected]
Website: www.zopfbiegemaschinen.de
