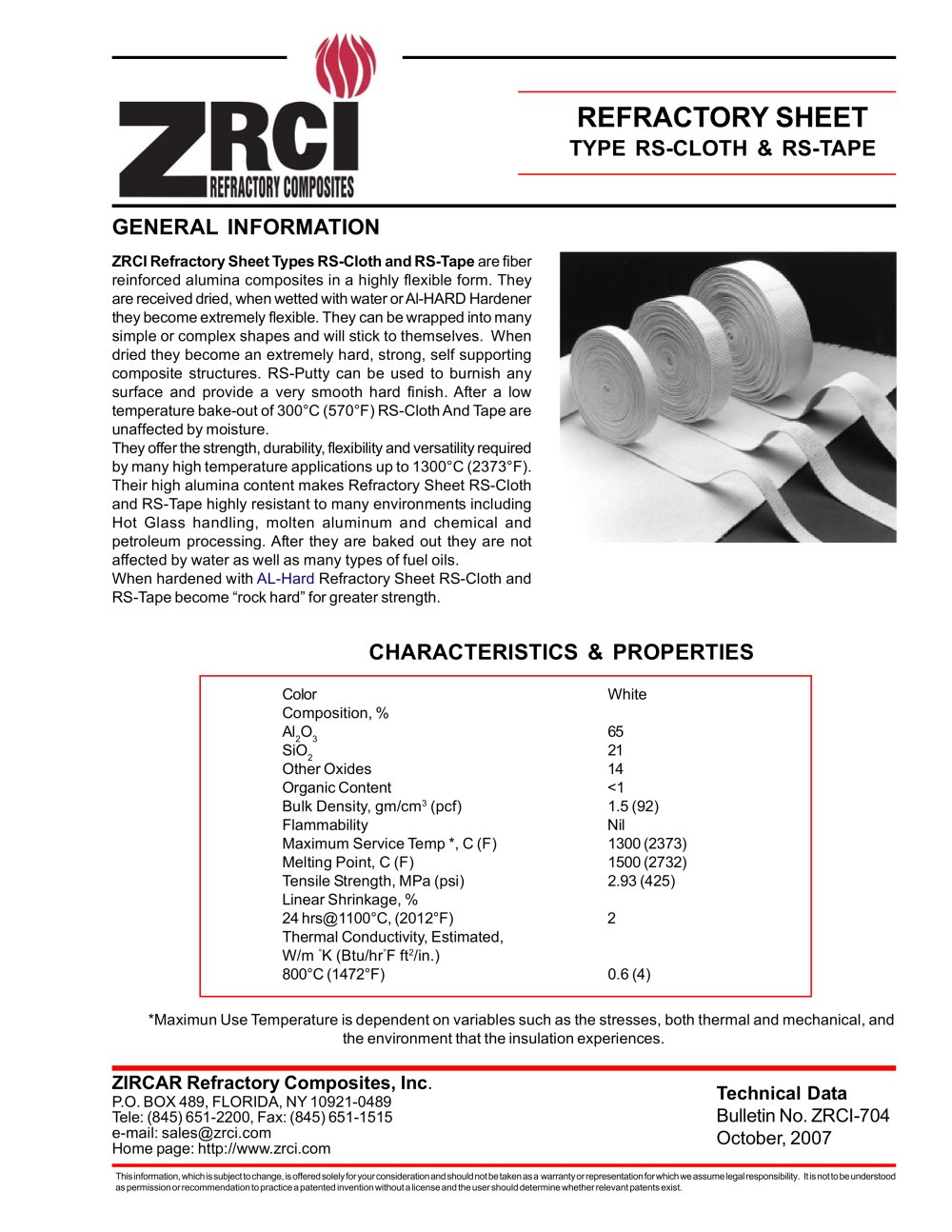

ZRCI Refractory Sheet Types RS-Cloth and RS-Tape are fiberreinforced alumina composites in a highly flexible form. They are received dried, when wetted with water or Al-HARD Hardener they become extremely flexible. They can be wrapped into many simple or complex shapes and will stick to themselves. When dried they become an extremely hard, strong, self supporting composite structures. RS-Putty can be used to burnish any surface and provide a very smooth hard finish. After a low temperature bake-out of 300C (570аF) RS-Cloth And Tape are unaffected by moisture. They offer the strength, durability, flexibility and versatility required by many high temperature applications up to 1300C (2373аF). Their high alumina content makes Refractory Sheet RS-Cloth and RS-Tape highly resistant to many environments including Hot Glass handling, molten aluminum and chemical and petroleum processing. After they are baked out they are not affected by water as well as many types of fuel oils. When hardened with AL-Hard Refractory Sheet RS-Cloth andRS-Tape become rock hardӔ for greater strength. ColorWhiteComposition, % Al > 2 O > 3 65SiO > 2 21Other Oxides14 Organic Content<1 Bulk Density, gm/cm > 3 (pcf)1.5 (92)FlammabilityNil Maximum Service Temp *, C (F)1300 (2373)Melting Point, C (F)1500 (2732)Tensile Strength, MPa (psi)2.93 (425)Linear Shrinkage, % 24 hrs@1100C, (2012аF)2 Thermal Conductivity, Estimated, W/m > K (Btu/hr > а F ft > 2 /in.)800C (1472аF)0.6 (4) *Maximun Use Temperature is dependent on variables such as the stresses, both thermal and mechanical, andthe environment that the insulation experiences. > P.O. BOX 489, FLORIDA, NY 10921-0489Tele: (845) 651-2200, Fax: (845) 651-1515 e-mail: sales@zrci.comHome page: http://www.zrci.com > This information, which is subject to change, is offered solely for your consideration and should not be taken as a warranty or representation for which we assume legal responsibility. It is not to be understoodas permission or recommendation to practice a patented invention without a license and the user should determine whether relevant patents exist. size="-1">

High temperature, high strength gasketing Flame and splash curtains Replacement for asbestos textiles ininduction glass melting furnaces Hot glass handling Reinforcement of composite structures High temperature pipe wrapping Immersion pyrometer protection tubes Induction heating furnace coil liners & insulators Small appliance electrical insulation Electrical insulation for band and strip heaters Wire and cable insulation Non-ferrous metal transport Pipe wrap and protection > Item #DescriptionItem #Description MS001RS-TAPE, 0.5" X 100' X 1/32"MS34RS-TAPE, 1.25" X 100' X 1/8"MS002RS-TAPE,...

Type RS-99R boards are prefired and are unaffected bymoisture. They remain rigid even if saturated with water. Type RS-99W boards can be moistened with water andmolded into any desired shape. After a low temperature bake-out of 300C (570аF) the boards are unaffected by moisture. Type RS-99M is a plastic highly moldable sheet ideallysuited for forming custom geometries or for molding in place. > 1650C (3002аF) and is able towithstand over 500 hours of continuous submersion in molten aluminum at 750C (1382аF) with no wetting and no degradation in properties. Type RS-99s high Alumina content...

?Refractory Sheet Type RS-DA RS-DA is a moldable Type D product which exhibits lower density than RS-DM, making it highly moldable. Drying with subsequent heat treatment to 300C will result in a permanently rigid structure. ?Refractory Sheet Type RS-DM RS-DM is a pre-moistened moldable Type D product. RS-DM is easily formed into complex shapes and can be dried and fired to impart high strength. RS-DM is ideally suited for use as a mold for slumping and fusing of glass. ?Refractory Sheet Type RS-DD RS-DD is a dried, rigid sheet which can be moistened with water to impart moldability. RS-DD...

ZIRCAR's Refractory Sheet Type RS-A Moldable is atough ceramic fiber reinforced insulation which contains no asbestos. Developed for induction coil liners and molten metal transport, Refractory Sheet Type RS-A Moldable is ideally suited for a wide range of high temperature, high thermal shock applications. It is also used for brazing separators and fixtures for jewelry making, as well as a high temperature gasket material. Its high Alumina (Al 1450C (2642аF). Refractory Sheet Type RS-A Moldable is a wet blanket that can be easily formed into a wide variety of simple and complex shapes....

is ideal forapplications up to 900C (1652аF). Type RS-C Moldable is ideal for applications to 1260C (2300аF) and Type RS-CH ZIRCAR Alumina-Silica Moldable Blankets Types RS-B Moldable and RS-C Moldable for applications to 1450C(2642аF) . . They are 100%inorganic, non-combustible and will not smoke upon initial heat up. They are ideal for insulation of complex shapes and can be cut to any size with a knife, scissors, or steel rule die. These moldable blankets possess excellent strength for ease of installation. A unique process of locking in the binder ensures that it will not migrate. The...

Trough and launder liners Օ Furnace repair Transport of molten non-ferrous metals Օ Furnace door linings and seals Expansion joint seals Օ Glass furnace crown insulation Insulation wrap for high temperature piping Օ High temperature gasketing High temperature kiln and furnace insulation Օ Self supporting mold wrap Fabrication into rigid fiber boards and cylinders Օ Useful where RCF's are not desired > Type,RS- A RS-BRS-CRS-SI Typical Composition, %Al 2 O 3 903366<0.1SiO 2 10413499+Other Oxides0260<0.1Density, g/cc(pcf)1.6(100)0.3(19)0.46(29)0.64(40) Solid Content, % by weight65 - -53Maximum...

Custom furnace components made using Refractory Sheet Type RS-A Moldable. TYPERS-A1RS-A2RS-A3 Densit y , g m/cm > 3 ( lb/ft > 3 ) 1.6(100)1.6(100)1.7(105)Porosity, %404038Modulus of Rupture,** MPa(psi) 3.4(500)3.9(560)9.1(1330)Compressive Strength,** MPa(psi) at 10% deflection6.9(1000)9.7(1400)17.2(2500)Hardness, Durometer "D"505570 Pullout Strength (lbs on #10 sheet metal screws)305090Moisture Content, %1022Linear Shrinka g e > , 16 hrs soak at 1200ǰC ( 2192F ) 400 >
