ZES ZIMMER Electronic Systems
Precision Power Meter LMG95

Precision Power Meter LMG95

Product catalog summary

Overview: The LMG95 is a high-precision single-phase power meter from ZES ZIMMER, designed for accuracy and versatility in measuring power across various waveforms and conditions. It is ideal for use in development, quality assurance, and manufacturing environments.

Specifications: The LMG95 offers a basic accuracy of 0.03% and measures signals from DC to 500kHz. It supports direct measurements up to 600V and 20A, with isolated inputs to ensure precise readings without interference.

Harmonics and Flicker Analysis: Compliant with EN61000-3-2/-3 standards, the LMG95 is suitable for CE compliance testing, analyzing up to the 40th harmonic, and offering optional flicker measurement capabilities.

Measurement Capabilities: The device handles active, reactive, and apparent power measurements, as well as voltage and current in both sinusoidal and distorted forms. It features real-time visualization and can store up to 2.106 sampling values.

Technical Data: The LMG95 supports multiple voltage and current ranges, with overload capabilities and high input resistance. It offers auto, manual, or remote-controlled range selection and features a robust isolation system.

Accuracy and Synchronization: The device provides high accuracy across a wide frequency range, with synchronization options for stable measurement displays. It supports averaging over multiple cycles and offers a graphical display for real-time signal visualization.

Additional Features: Options include memory extension, transient monitoring, and computer interfacing. It supports remote control and data output via RS232 and IEEE488.2 interfaces, with a parallel printer interface for direct printing.

Accessories and Software: Optional accessories include precision current transformers and application software for configuration and data logging. The TERM-L5 software facilitates real-time visualization and data recording for further analysis.

Compliance and Safety: The LMG95 adheres to various safety and electromagnetic compatibility standards, including EN61010 and IEC61000. It operates within a temperature range of 0 to 40°C and features a robust protection system.

Components and Accessories: The document details components and accessories for the LMG95, including drivers, shunts, transformers, scanners, adapters, and other related equipment. Key components include:

LMG95 Drivers: LWINDRV-L95 and LVDRV-L95 for LabWindows/CVI and LabVIEW 5.1, supporting RS232 and IEEE488 interfaces.
Shunts and Transformers: L95-SH-100 for small currents up to 1A and L95-Z06 for high-frequency current measurements.
Scanners: L95-SCAN15/30 for sequential measuring of multiple devices.
High Voltage Dividers: Precision dividers for 6/12kV measurements.
Measuring Adapters: MAS and MAK1 for devices with Schuko plugs and inlet connectors.
Mounting and Sockets: L95-Z01 for 19” rack mounting and L95-Z09 for rear-side measuring sockets.
Reference Meter: LMG95-REF with a basic accuracy of 0.01%, traceable with a calibration certificate by PTB.

Additional Features:

Calibration Certificate: KR-L95 traceable to ISO9000 standards.
Data Logging: NDL5 for long-term data logging with internet/ethernet communication.
Inverter: WR-24-230 for converting 24VDC to 230VAC/50Hz.
Process Signal Adapter: L5-IOBOX-S /-F for easy connection of process signals.

Catalog excerpts

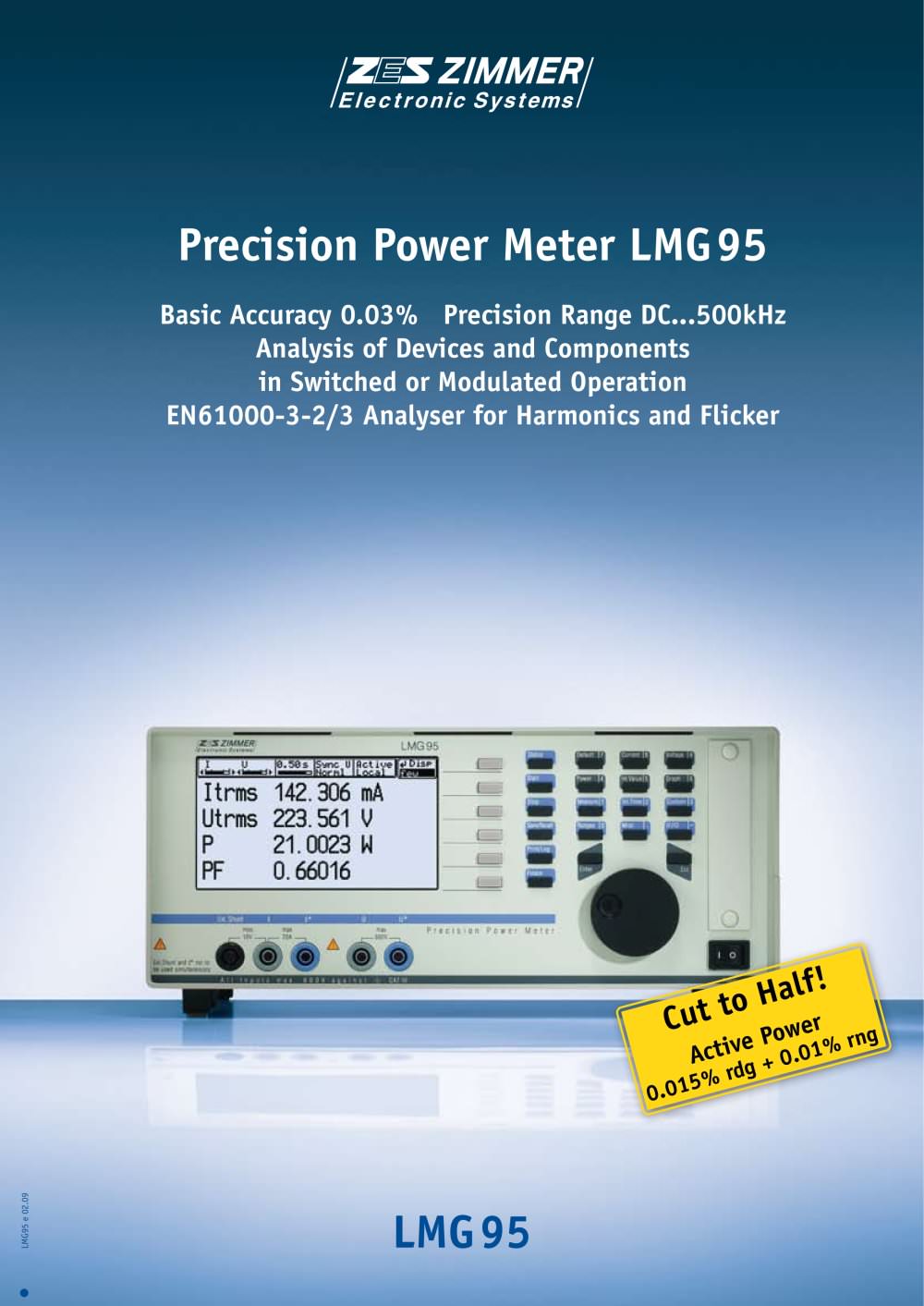

Precision Power Meter LMG95 > Basic Accuracy 0.03% Precision Range DC...500kHz Analysis of Devices and Components in Switched or Modulated Operation EN61000-3-2/3 Analyser for Harmonics and Flicker Cut to Half! Active Power 0.015% rdg + 0.01% rng LMG95 e 02.09 LMG95 >

Open the catalog to page 1

The LMG95 single-phase precision power meter is an outstanding product in the LMG series of proven ZES ZIMMER precision power measuring devices. Highly accurate continuous gap-free signal measurement and processing, ergonomic operation and presentation of the results, interfaces with high data rates for efficient system applications these are the performance features which distinguish the LMG95. > The high precision power measurements on components and devices wanted in development, quality assurance and manufacturing can be performed with ease ֖ independent of whether or not the current and...

Open the catalog to page 2

Electronic 12V transformer to supply a halogen lamp. Amplitude modulated 150 kHz carrier with 100Hz envelope. > Amplitude spectrum with the help of the HRM100 harmonic analysis. The burst fire presents a 1.56Hz modulation of the carrier (50Hz mains voltage). The DC component of the spectrum results from the blower motor in half-wave operation. The extended X-TrigӔ trigger mode detects the 1.56Hz periodicity which is used for synchronisation.Using the plot function the half-wave trms values U > l are plotted over time (lower curve B). Irregular sags of about 8V can be recognised. The momentary...

Open the catalog to page 3

LMG95-REF Reference meter for current, voltage, power. Basic accuracy 0.01%. Traceable with calibration certificate by PTB (National Institute of Standards) L95-Z01 Mounting kit for 19 rack mounting L95-Z09 Measuring sockets on rear side, e.g. when rack mounted Other data Electromagnetic compatibility IEC61000 (EN61000), EN50081, EN50082 Protection system IP20 in accordance with DIN40050 Operating/storage temperature 0...40ӰC, -20...50C Climatic class KYG in accordance with DIN40040 Power supply 90...250V, 45...65Hz, about 30W Special versions and designs KR-L95 NDL5 Longtime-data logging to...

Open the catalog to page 6
