DC EU made Deep drawn aluminium Instrument case

Product catalog summary

Overview: The document outlines the specifications and options for Zero's DC Series Equipment Cases, which are designed for improved product performance and are compliant with IP 65, BS 5490, and DIN 40 050 standards.

Standard Design Specifications:

Sizes: Six standard sizes available in two depths, with additional depths upon request.
Closure: Anodised aluminium alloy with interlocking tongue and groove.
Case Shells: Made from deep drawn aluminium alloy.
Catches: Chrome-plated and key lockable.
Hinges: Available in separable or fixed stainless steel.
Handle: Black moulded plastic, swing type.
Feet: Long bar feet with integral rubber.
Case Finish: Powder coated in a wide range of colours.

Optional Accessories:

Hinged aluminium inner lid for cable storage.
Individual panel mounting bracket.
Aluminium alloy front or lid panel.
External lid stay with approximately 90° opening.
Shoulder strap and riser section for extra height.
Custom foam internals and blank foam packs.
Alternative flanged closure extrusions for sealing/shielding.

Additional Features:

Document wallet available for all cases except DC3020.
External lid stays are standard for all cases.
Slide-off hinge allows easy lid removal; fixed hinge or external lid stays can make the lid non-removable.
Higher sealing levels available for special orders, achieving MIL-STD 108 in tests.

Design Changes: The new design includes changes in manufacture and closure extrusion, affecting panel sizes. Customers are advised to consult for panel manufacturing.

Ordering Information: Detailed model numbers, dimensions, and weights are provided for various case sizes, with deeper versions available on request.

Contact Information: Zero Cases (UK) Ltd, Unit 5, Alpha Park, Bevan Way, Smethwick, West Midlands B66 1BZ. Telephone: +44 (0)121 558 2011, Facsimile: +44 (0)121 565 2115, Website: www.zerocases.com, Email: [email protected]

Note: Specifications are subject to change without notice, and dimensions have a tolerance of +/- 2mm.

Catalog excerpts

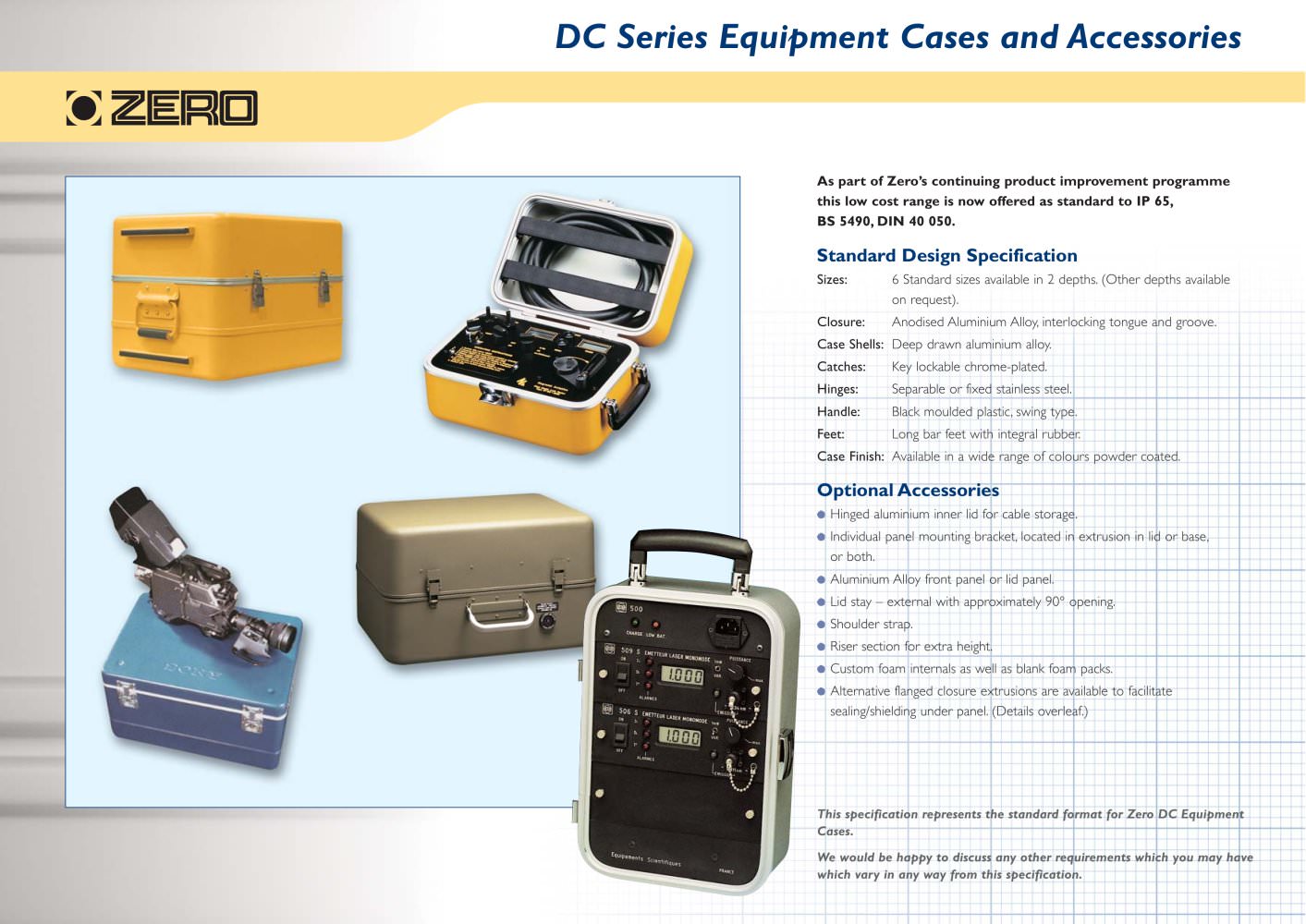

DC EU made Deep drawn aluminium Instrument case-1

As part of Zeros continuing product improvement programmethis low cost range is now offered as standard to IP 65,BS 5490,DIN 40 050. > Sizes: 6 Standard sizes available in 2 depths.(Other depths availableon request). Closure: Anodised Aluminium Alloy,interlocking tongue and groove. Case Shells: Deep drawn aluminium alloy. Catches: Key lockable chrome-plated. Hinges: Separable or fixed stainless steel. Handle: Black moulded plastic,swing type. Feet: Long bar feet with integral rubber. Case Finish: Available in a wide range of colours powder coated. > l Hinged aluminium inner lid for cable storage. > l Individual panel mounting bracket,located in extrusion in lid or base,or both. > l Aluminium Alloy front panel or lid panel. > l Lid stay Җ external with approximately 90opening. > l Shoulder strap. > l Riser section for extra height. > l Custom foam internals as well as blank foam packs. > l Alternative flanged closure extrusions are available to facilitate sealing/shielding under panel.(Details overleaf.) > This specification represents the standard format for Zero DC EquipmentCases.We would be happy to discuss any other requirements which you may havewhich vary in any way from this specification. size="-1">
