Century 2000X aluminium attache style instrument/equipment cases

Product catalog summary

Overview: The Century 2000X range of equipment cases is designed for protection, durability, and aesthetics. Manufactured in Birmingham, these cases are based on the Zero Halliburton Elite range and are available in three formats: 2100X, 2700X, and 2200X, each suitable for various applications.

2100X Series Specifications:

Material: Deep drawn aluminium alloy with grey, hard anodised shells and black anodised hardware.
Closure: Aluminium alloy with interlocking tongue and groove, gasketed for dust and weather protection.
Features: Key lockable catches, continuous piano-type hinge, anodised aluminium dome feet, and swing-type plastic handle.
Sealing: Optional IP65 or IP68 sealing; militarised versions available.

2700X Series Specifications:

Similar to 2100X but with separable hinges for easy lid removal.
No lid stays included.

2200X Series Specifications:

Designed for environmental or EMI protection with a special extrusion for sealed mounting panels.
EMI protection offers a minimum of 45dB from 30MHz to 1GHz.
Supplied with panel flange and gasket, separable hinges, and no lid stays.

Dimensions: Detailed dimensions are provided for each model in the 2100X, 2700X, and 2200X ranges, specifying base, lid thickness, and weight.

Ordering Information:

Specify case/model number, inner lid, instrument panel, and quantity of support brackets.
For 2200X, specify panel seal type (EMI or environmental) and panel mounting brackets.

Customization and Accessories:

Cases can be personalized with company colors and logos.
Accessories include hinged inner lids, adjustable panel mounting brackets, front panels, document wallets, and custom foam internals.

Contact Information: Zero Cases (UK) Ltd, Unit 5, Alpha Park, Bevan Way, Smethwick, West Midlands B66 1BZ. Phone: +44 (0)121 558 2011, Email: [email protected]

Note: Specifications are subject to change without notice, and dimensions have a tolerance of +/- 2mm.

Catalog excerpts

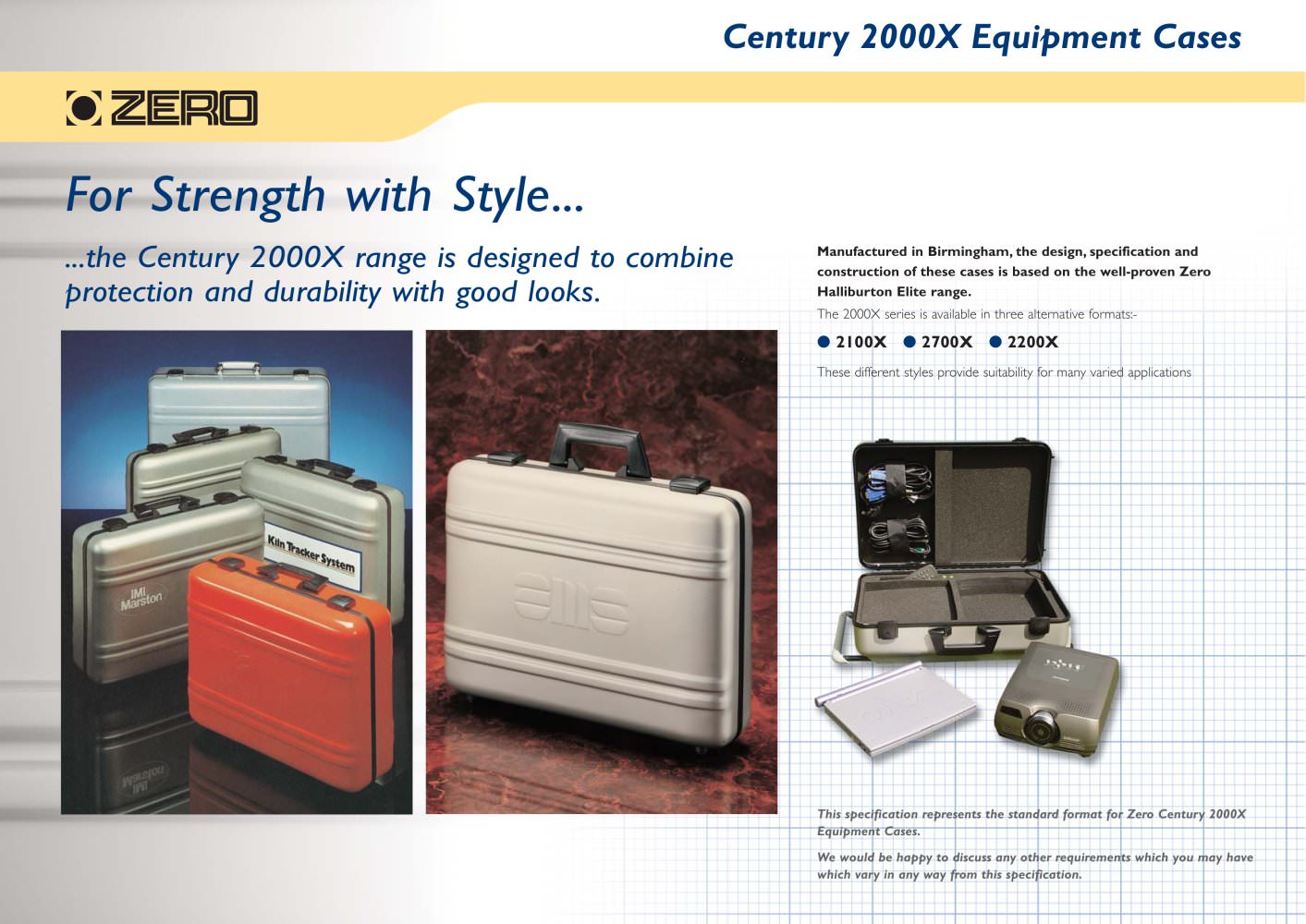

Century 2000X aluminium attache style instrument/equipment cases-1

Manufactured in Birmingham,the design,specification andconstruction of these cases is based on the well-proven ZeroHalliburton Elite range. The 2000X series is available in three alternative formats:- ● 2100X ● 2700X ● 2200X > These different styles provide suitability for many varied applications This specification represents the standard format for Zero Century 2000XEquipment Cases.We would be happy to discuss any other requirements which you may havewhich vary in any way from this specification. size="-2">

Open the catalog to page 1
