custom_specific_power_supplies

Product catalog summary

Overview
Zentro-Elektrik GmbH KG specializes in developing custom-specific power supplies and power conversion systems. Their expertise spans various industries, including rail, communications, and military applications, providing reliable and efficient power solutions tailored to specific needs.

Specifications and Applications

Mobile Battery Backup System for Rail Applications: Output parameters include 83.7V/32A, featuring monitoring devices, automatic switch-off, and an alarm lamp.
Electronic Load System for Fuel Cell Research: Offers DC-load systems with RS 232 and IEEE 488.2 interfaces, supporting multiple modes (A, V, P, G) with power options of 8x500W or 8x1000W, and air-cooled design.
Mobile Generator Load Devices for Motor Test Systems: DC-load of 6KW with load parameters of 2.5-60V/500A, featuring automatic switch A/V and additional input capacity.
Outdoor Power Supply for Satellite Devices: Provides a wide range input with an output of 12V 30A, suitable for mast mounting.
Power Supply for Public Networks: DC-DC converter with wide range input (48-287V) and output of 5V ±15V.
DC-DC Converter for Wireless Switching Technology: 400W power with four output voltages, over-voltage, and thermal protection.
Redundant Systems: 19" rack, 3U power supply, and DC-DC converter with mains and DC input, outputting 2x24V 2x8A.
DC-DC Converter for Military Applications: 65W power with four output voltages, operating in a temperature range of -40°C to +85°C for ruggedized applications.
Fuel Cell Test System for R&D: DC-0Volt load with 1000W power, supporting 0-20V and 0-200A.

Key Features

Custom-specific solutions tailored to industry needs.
Expertise in packaging power supply solutions to reduce development and application expenses for clients.
Reliable and efficient power supply units ensuring trouble-free operation.

Catalog excerpts

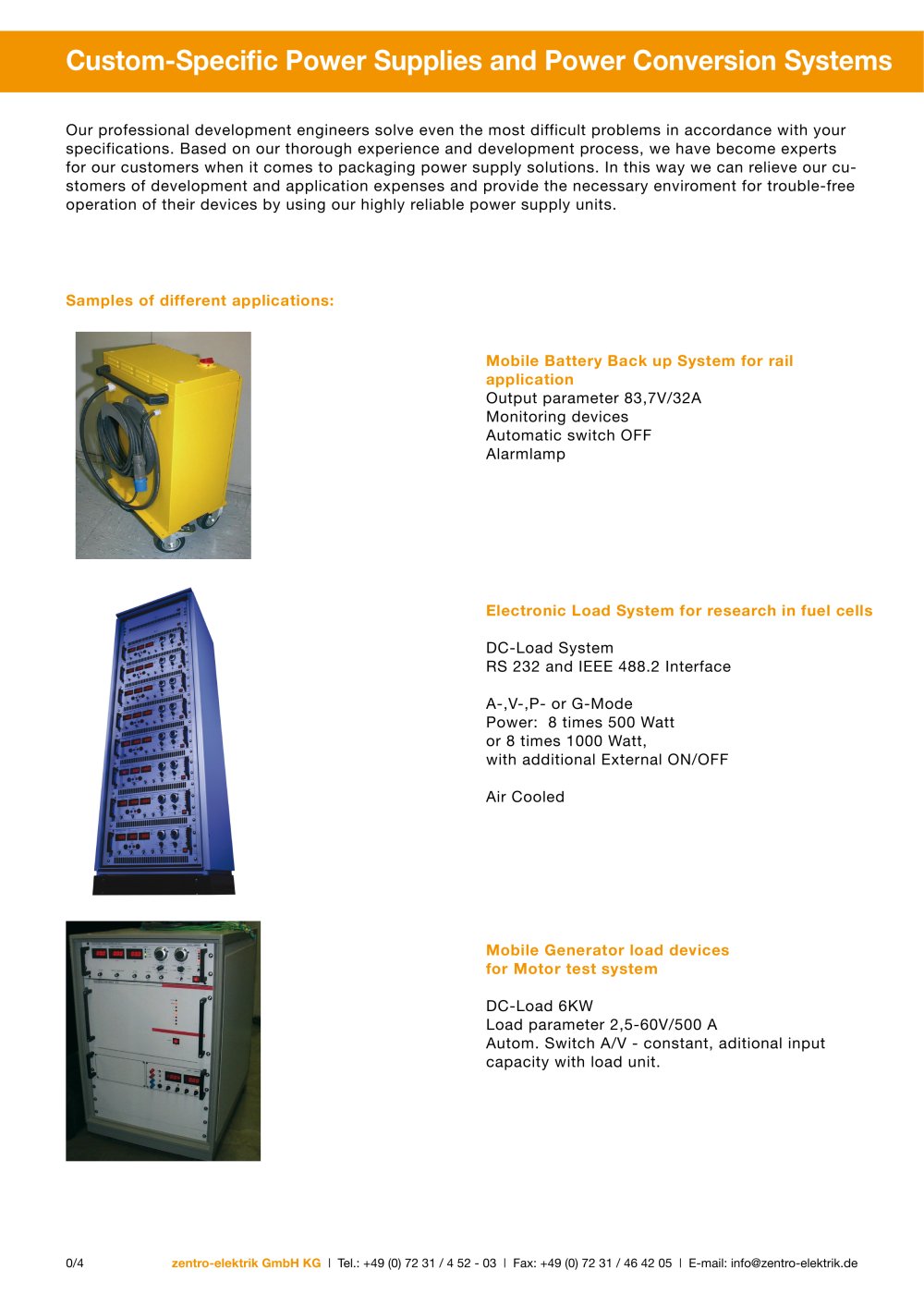

Our professional development engineers solve even the most difficult problems in accordance with your specifications. Based on our thorough experience and development process, we have become experts for our customers when it comes to packaging power supply solutions. In this way we can relieve our cu- stomers of development and application expenses and provide the necessary enviroment for trouble-free operation of their devices by using our highly reliable power supply units. Samples of different applications: Electronic Load System for research in fuel cells Mobile Battery Back up System for rail application Output parameter 83,7V/32A Monitoring devices Automatic switch OFF Alarmlamp DC-Load System RS 232 and IEEE 488.2 InterfaceA-,V-,P- or G-ModePower: 8 times 500 Watt or 8 times 1000 Watt, with additional External ON/OFFAir Cooled Mobile Generator load devices for Motor test system DC-Load 6KW Load parameter 2,5-60V/500 A Autom. Switch A/V - constant, aditional input capacity with load unit. > 0/4 zentro-elektrik GmbH KG | Tel.: +49 (0) 72 31 / 4 52 - 03 | Fax: +49 (0) 72 31 / 46 42 05 | E-mail: [email protected] size="-1">

Open the catalog to page 1

Our vast experience provides a great platform for us to deliver industry specific power supply solutions. Whether it involves meeting the demands of the rail industry, or understanding the issues faced by com- munications engineers, Zentro-Elektrik has the expertise to provide application know how, working with customers from conception through to manufacture of a safe and reliable power supply solution. Samples of different applications:Outdoor power supply for Satelite devices Wide range input Output 12V 30A Mast mounting Powersupply for the supply of energy to puplic networks DC-DC Converter...

Open the catalog to page 2

Open the catalog to page 3
