ZEISS CALENO Hambot More than a robot. The Hambot.

Table of contents ZEISS CALENO – Hambot Overview Features & highlights ZEISS CALENO Designs One measuring system – all tasks ZEISS articulating probe holders & sensors Technical specifications ZEISS software ZEISS Industrial Quality Solutions Training, support & services Contac

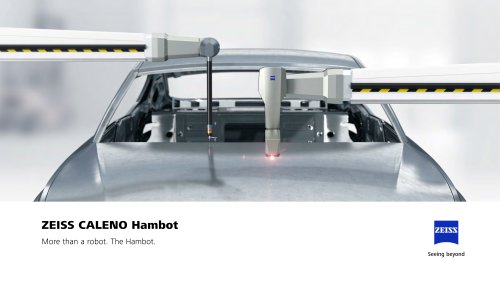

ZEISS CALENO Hambot When it comes to being able to perform as many body measurement tasks as possible on one system, there is a superior solution from ZEISS: the ZEISS CALENO Hambot. It is extremely versatile and offers top performance in all measuring disciplines. The combination of the best optical and tactile sensor technology ensures maximum productivity and precision – not only in the measuring room, but also close to production. And another important advantage: thanks to exemplary safety equipment the operator can work in and around the ZEISS CALENO Hambot. Possible uses of the ZEISS CALENO...

Features & highlights

ZEISS CALENO flush-to-floor Flush-to-floor installation In the flush-to-floor design, ZEISS CALENO is optimally accessible and can be moved with floor-level conveyors. For all work on and with the measuring system, the floor-level variant offers the best possible ergonomics and productivity – ideal for high measuring volumes and short time frames. A dedicated foundation is required for installation. On-floor installation To satisfy special requirements, the ZEISS CALENO flush-to-floor design is also suitable for on-floor installation. ZEISS CALENO T tabletop construction The ZEISS CALENO T tabletop...

One measuring system – all tasks Measure geometrical features in record time with ZEISS EagleEye, then digitize large freeform surfaces using the same sensor. Use the automatically exchangeable tactile sensor to take optimally accurate reference measurements, e.g. for correlation measurements. Capture difficult-to-access features by tactile means using ZEISS ThermoFit extensions of up to 800 mm. All on the same system. All without wasting time. Watch video Car body sample measurement 45 minutes using ZEISS RST-P tactile sensor 6:25 minutes using ZEISS EagleEye optical sensor more time

ZEISS articulating probe holders ZEISS sensors The benchmark – optical and tactile Fast and precise positioning ZEISS DSC Both optical and tactile sensors can be changed over automatically using the ZEISS DSC articulating probe holder. Its high dynamics and torque as well as its excellent precision are the basis for a wide range of measurement tasks. The sensor carrier has springmounted collision protection for the sensor as standard. Optional additional collision protection of the articulating probe holder is also available. The passive probe changer requires neither compressed air nor electricity....

The CMM specifications only apply when using original ZEISS accessories. The specified parameters are observed in the application of the internal test instructions for acceptance testing and in the use of the released standards in accordance with the ISO 10360 series. ZEISS CALENO flush-to-floorMany sizes for measuring volumes up to X (mm) Y (mm) Z (mm) X (mm) Y (mm) Z (mm) Single 7000 1800 3000 7250 1800 2500 Other measuring ranges on request Other measuring ranges on request Length measurement error (size 16/25, single arm) Temperature range E in pm Temperature range E in pm Performance option...

Digital transformation made by ZEISSZEISS software ZEISS supports you in the transition to increasingly digital, data-based, networked production: with software products that harmonize with your ZEISS measuring systems in a highly efficient way. With digital solutions that open up new areas of potential for advanced quality and productivity. ZEISS CALIGO - Specialist for freeform surfaces The modern software architecture enables efficient processing of large volumes of data such as optical scans of entire car bodies. The highly developed ZEISS feature extraction function enables reliable optical...

ZEISS Industrial Quality Solutions ZEISS Industrial Quality Solutions is a leading manufacturer of multidimensional metrology solutions. These include coordinate measuring machines, optical and multi-sensor systems, microscopy systems for industrial quality assurance as well as metrology software for the automotive, aircraft, mechanical engineering, plastics and medical technology industries. Innovative technologies such as 3D X-ray metrology for quality assurance complete the portfolio. In addition, ZEISS Industrial Quality Solutions offers a broad global spectrum of customer services with ZEISS...

Your holistic technology partner Numerous services and training courses support you in your daily work with 3D measuring technology. Training courses and webinars help you to extend your knowledge about using the software and get to know more application fields for the measuring systems. ZEISS training centers offer training and eLearning courses for all levels of expertise. The training courses follow an internationally standardized concept and are implemented by our certified partners in the corresponding national language. In addition to online training courses and scheduled courses in our...

Want to learn more about ZEISS CALENO? Contact us for a free demonstration – on site or online. ZEISS Industrial Quality Solutions Carl Zeiss IQS Deutschland GmbH Carl-Zeiss-Straße 22 73447 Oberkochen Germany Carl Zeiss Industrial Quality Solutions, LLC 6250 Sycamore Lane North Maple Grove, MN 55369 USA Sales Phone: +49 7364 20 6337 E-Mail: [email protected] Service Phone: +49 7364 20 6337 E-Mail: [email protected] EN_CALENO Digital Version CZ-09/2024 Subject to change in design and scope of delivery and as a result of ongoing technical development.
