Zebra ZVac™ II
1Pages

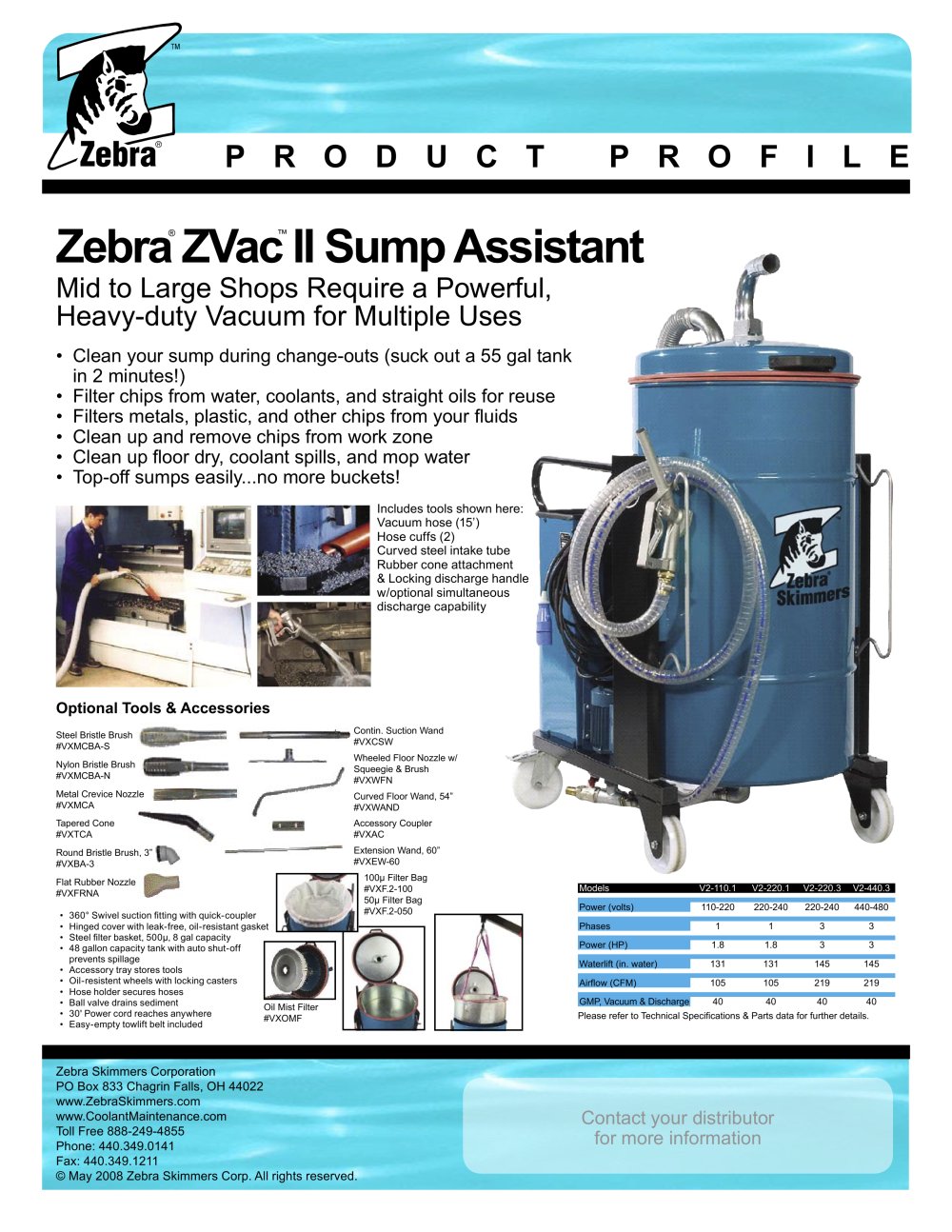

PRODUCT PROFILE • Clean your sump during change-outs (suck out a 55 gal tank in 2 minutes!) • Filter chips from water, coolants, and straight oils for reuse • Filters metals, plastic, and other chips from your fluids • Clean up and remove chips from work zone • Clean up floor dry, coolant spills, and mop water • Top-off sumps easily...no more buckets! Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © May 2008 Zebra Skimmers Corp. All rights reserved. Contact your distributor for more information Zebra ZVac II Sump Assistant ® Mid to Large Shops Require a Powerful, Heavy-duty Vacuum for Multiple Uses Includes tools shown here: Vacuum hose (15’) Hose cuffs (2) Curved steel intake tube Rubber cone attachment & Locking discharge handle w/optional simultaneous discharge capability Models V2-110.1 V2-220.1 V2-220.3 V2-440.3 Power (volts) 110-220 220-240 220-240 440-480 Phases 1 1 3 3 Power (HP) 1.8 1.8 3 3 Waterlift (in. water) 131 131 145 145 Airflow (CFM) 105 105 219 219 GMP, Vacuum & Discharge 40 40 40 40 Please refer to Technical Specifications & Parts data for further details. 100ì Filter Bag#VXF.2-100 50ì Filter Bag#VXF.2-050 Oil Mist Filter#VXOMF • 360° Swivel suction fitting with quick-coupler • Hinged cover with leak-free, oil-resistant gasket • Steel filter basket, 500ì, 8 gal capacity • 48 gallon capacity tank with auto shut-off prevents spillage • Accessory tray stores tools • Oil-resistent wheels with locking casters • Hose holder secures hoses • Ball valve drains sediment • 30' Power cord reaches anywhere • Easy-empty towlift belt included Optional Tools & Accessories Steel Bristle Brush#VXMCBA-S Nylon Bristle Brush#VXMCBA-N Metal Crevice Nozzle#VXMCA Tapered Cone#VXTCA Round Bristle Brush, 3”#VXBA-3 Flat Rubber Nozzle#VXFRNA Contin. Suction Wand#VXCSW Wheeled Floor Nozzle w/ Squeegie & Brush#VXWFN Curved Floor Wand, 54”#VXWAND Accessory Coupler#VXAC Extension Wand, 60”#VXEW-60 ™
