Zebra ZVac™ II - specifications

Product catalog summary

Technical Specifications

Flow Rate: Intake and discharge both at 40 gpm (151 lpm).
Material: Main body made of powder-coated steel.
Liquid Container Capacity: 48 gallons (182 liters).
Chip Container: 8 gallons (30 liters) with a 0.08” (2mm) pore size.
Inlet Size: 2” (51mm) diameter.
Intake Hose: 2” (51mm) diameter, 15’ (5m) long.
Discharge Handle: Cast aluminum with lock lever.
Drain Valve: 2” (51mm) stainless steel full port ball valve.
Cord Length: 30’ (10m) with cord wrap mechanism.
Casters: 6” (15.2cm) diameter with locking mechanism.
Dimensions: 42 x 26.5 x 59” (107 x 67.3 x 150 cm).

Model Variations

V2-110.1 & V2-220.1: Single-phase, 110/120V or 220/240V, 1460 watts, 14.1/6.1 amps motor.
V2-220.3 & V2-440.3: Three-phase, 220/240V or 440/480V, 2550 watts, 10.9/6.0 amps motor.
Horsepower: Minimum 1.8 for single-phase, 3 for three-phase.
CFM: 105 for single-phase, 219 for three-phase.
Waterlift: 131 inches for single-phase, 145 inches for three-phase.
Weight: 265 pounds for single-phase, 325 pounds for three-phase.

Replacement Parts & Accessories

Filter Container: Steel, 500µ.
Rubber Cone Attachment: 6” long with angled edge.
Hose Cuff: 2” ID.
Curved Intake Tube: 24” long.
Intake Hose: 2” ID, copper spiral wound.
Discharge Hose: 1” ID, steel spiral wound.
Filter Bag Inserts: Available in 100µ and 50µ.
Oil Mist Filter: Available.
Continuous Suction Wand: 36” long with breather.
Extension Wand: 60” long, steel.
Metal Crevice Attachments: Available with nylon or steel bristles.
Brush Attachment: 3” round.
Flat Rubber Nozzle: 5” long.
Tapered Cone Attachment: 12” long, rubber.
Double-Curved Floor Wand: 54” long, aluminum.
Wheeled Floor Squeegee/Brush Attachment: 16” wide, height adjustable.
Accessory Coupler: Required for some non-standard accessories.

Catalog excerpts

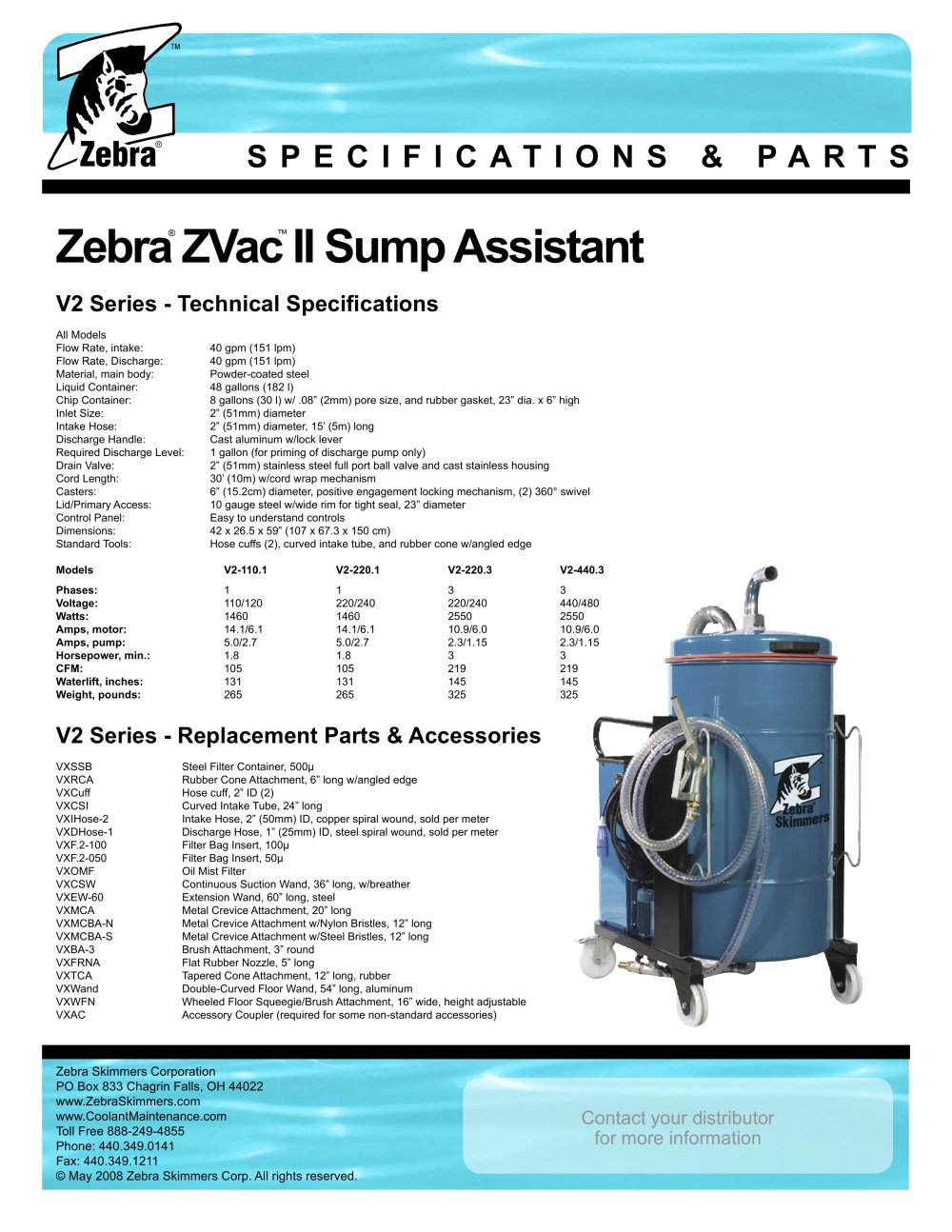

SPECIFICATIONS & PARTS Zebra ZVac II Sump Assistant Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © May 2008 Zebra Skimmers Corp. All rights reserved. ® Contact your distributor for more information V2 Series - Technical Specifications All Models Flow Rate, intake: 40 gpm (151 lpm) Flow Rate, Discharge: 40 gpm (151 lpm) Material, main body: Powder-coated steel Liquid Container: 48 gallons (182 l) Chip Container: 8 gallons (30 l) w/ .08” (2mm) pore size, and rubber gasket, 23” dia. x 6” high Inlet Size: 2” (51mm) diameter Intake Hose: 2” (51mm) diameter, 15’ (5m) long Discharge Handle: Cast aluminum w/lock lever Required Discharge Level: 1 gallon (for priming of discharge pump only) Drain Valve: 2” (51mm) stainless steel full port ball valve and cast stainless housing Cord Length: 30’ (10m) w/cord wrap mechanism Casters: 6” (15.2cm) diameter, positive engagement locking mechanism, (2) 360° swivel Lid/Primary Access: 10 gauge steel w/wide rim for tight seal, 23” diameter Control Panel: Easy to understand controls Dimensions: 42 x 26.5 x 59” (107 x 67.3 x 150 cm) Standard Tools: Hose cuffs (2), curved intake tube, and rubber cone w/angled edge Models V2-110.1 V2-220.1 V2-220.3 V2-440.3 Phases: 1 1 3 3 Voltage: 110/120 220/240 220/240 440/480 Watts: 1460 1460 2550 2550 Amps, motor: 14.1/6.1 14.1/6.1 10.9/6.0 10.9/6.0 Amps, pump: 5.0/2.7 5.0/2.7 2.3/1.15 2.3/1.15 Horsepower, min.: 1.8 1.8 3 3 CFM: 105 105 219 219 Waterlift, inches: 131 131 145 145 Weight, pounds: 265 265 325 325 V2 Series - Replacement Parts & Accessories VXSSB Steel Filter Container, 500ì VXRCA Rubber Cone Attachment, 6” long w/angled edge VXCuff Hose cuff, 2” ID (2) VXCSI Curved Intake Tube, 24” long VXIHose-2 Intake Hose, 2” (50mm) ID, copper spiral wound, sold per meter VXDHose-1 Discharge Hose, 1” (25mm) ID, steel spiral wound, sold per meter VXF.2-100 Filter Bag Insert, 100ì VXF.2-050 Filter Bag Insert, 50ì VXOMF Oil Mist Filter VXCSW Continuous Suction Wand, 36” long, w/breather VXEW-60 Extension Wand, 60” long, steel VXMCA Metal Crevice Attachment, 20” long VXMCBA-N Metal Crevice Attachment w/Nylon Bristles, 12” long VXMCBA-S Metal Crevice Attachment w/Steel Bristles, 12” long VXBA-3 Brush Attachment, 3” round VXFRNA Flat Rubber Nozzle, 5” long VXTCA Tapered Cone Attachment, 12” long, rubber VXWand Double-Curved Floor Wand, 54” long, aluminum VXWFN Wheeled Floor Squeegie/Brush Attachment, 16” wide, height adjustable VXAC Accessory Coupler (required for some non-standard accessories) ™
