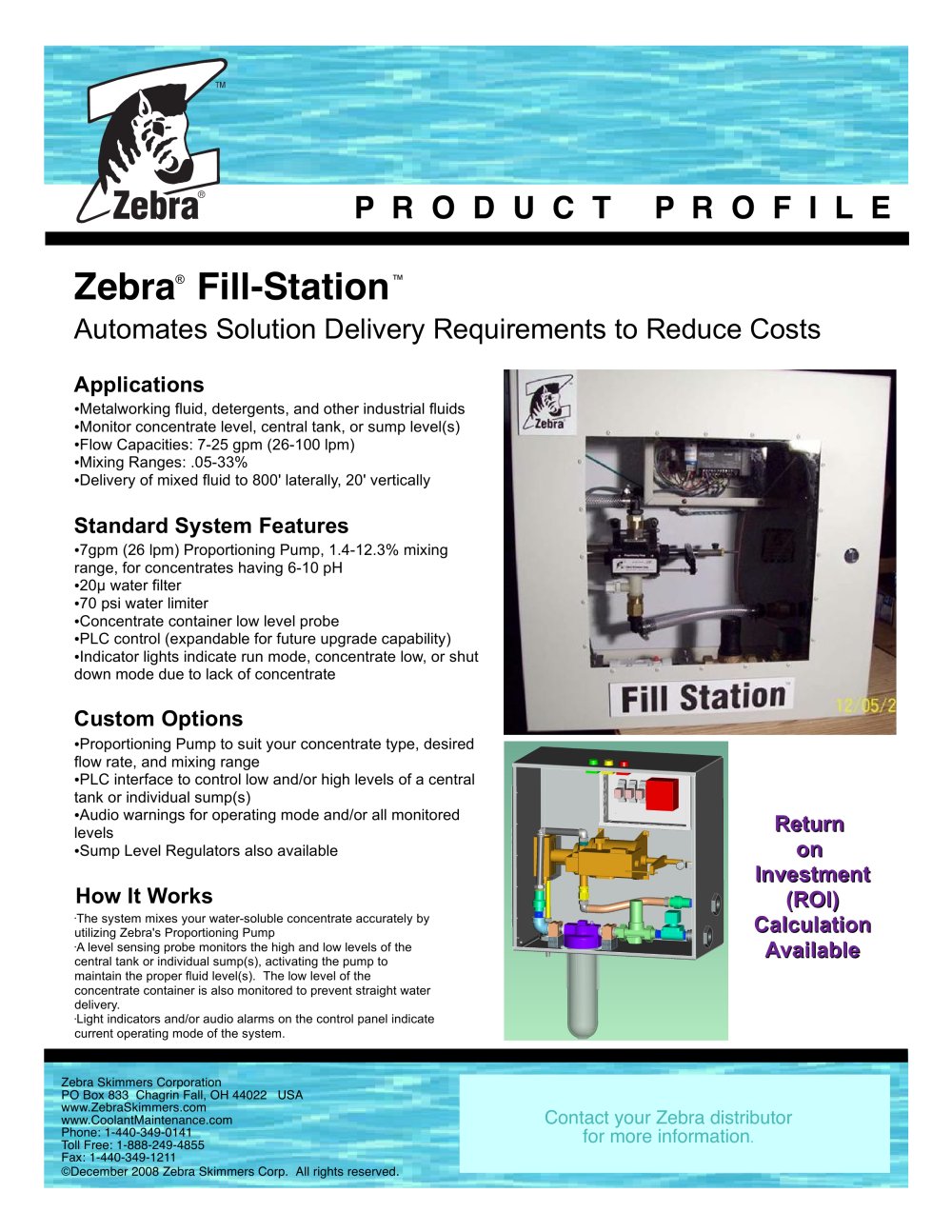

P R O D U C T P R O F I L E Zebra Skimmers Corporation PO Box 833 Chagrin Fall, OH 44022 USA www.ZebraSkimmers.com www.CoolantMaintenance.com Phone: 1-440-349-0141 Toll Free: 1-888-249-4855 Fax: 1-440-349-1211 Contact your Zebra distributor for more information. ©December 2008 Zebra Skimmers Corp. All rights reserved. Zebra® Fill-Station™ Automates Solution Delivery Requirements to Reduce Costs œMetalworking fluid, detergents, and other industrial fluids œMonitor concentrate level, central tank, or sump level(s) œFlow Capacities: 7-25 gpm (26-100 lpm) œMixing Ranges: .05-33% œDelivery of mixed fluid to 800' laterally, 20' vertically How It Works •The system mixes your water-soluble concentrate accurately by utilizing Zebra's Proportioning Pump •A level sensing probe monitors the high and low levels of the central tank or individual sump(s), activating the pump to maintain the proper fluid level(s). The low level of the concentrate container is also monitored to prevent straight water delivery. •Light indicators and/or audio alarms on the control panel indicate current operating mode of the system. Applications Standard System Features Custom Options œ7gpm (26 lpm) Proportioning Pump, 1.4-12.3% mixing range, for concentrates having 6-10 pH œ20ì water filter œ70 psi water limiter œConcentrate container low level probe œPLC control (expandable for future upgrade capability) œIndicator lights indicate run mode, concentrate low, or shut down mode due to lack of concentrate œProportioning Pump to suit your concentrate type, desired flow rate, and mixing range œPLC interface to control low and/or high levels of a central tank or individual sump(s) œAudio warnings for operating mode and/or all monitored levels œSump Level Regulators also available Return on Investment (ROI) Calculation Available
