Sidewinder® Tube Skimmer

Product catalog summary

Introduction
The document introduces the next generation Zebra Sidewinder Tube Skimmer, highlighting its new features and specifications.

New Features of Generation 8

Improved gear drive technology for enhanced performance.
Extended tube life and compact design for better usability.
Versatile motor and mounting options to suit various applications.
Ability to skim underneath conveyors, enclosed sumps, and hard-to-access areas.
Available in sizes ranging from 8” to 95” for customizable reach.
Quick installation process.
Industrial-grade pick-up tubing with ceramic scraper for durability.
Large oil discharge port with a capacity of 1 quart per hour.
Requires only 1/2x3” (13x76mm) sump access.
Operates at a maximum temperature of 90°F (30°C).
Equipped with a continuous-duty motor and a one-year warranty.

Product Specifications

Model Part Numbers: Various models with different voltage and frequency specifications.
Magnetic Base Option: Available for models without a diverter.
Diverter: Oil/coolant separator that raises the unit by 2.5”.
LockJaw: Mounting clamp for portability and drum use.
Timer: Available in 24-hour and 7-day settings, integrated with the motor.

Installation and Reach

Reach sizes are available in 3” increments up to a maximum of 95”.
To determine the required reach, measure from the mounting point to the lowest operating fluid level.

Contact Information
Zebra Skimmers Corporation, PO Box 833, Chagrin Falls, OH 44022. For more information, visit www.ZebraSkimmers.com or www.CoolantMaintenance.com, or contact via phone at 888-249-4855.

Catalog excerpts

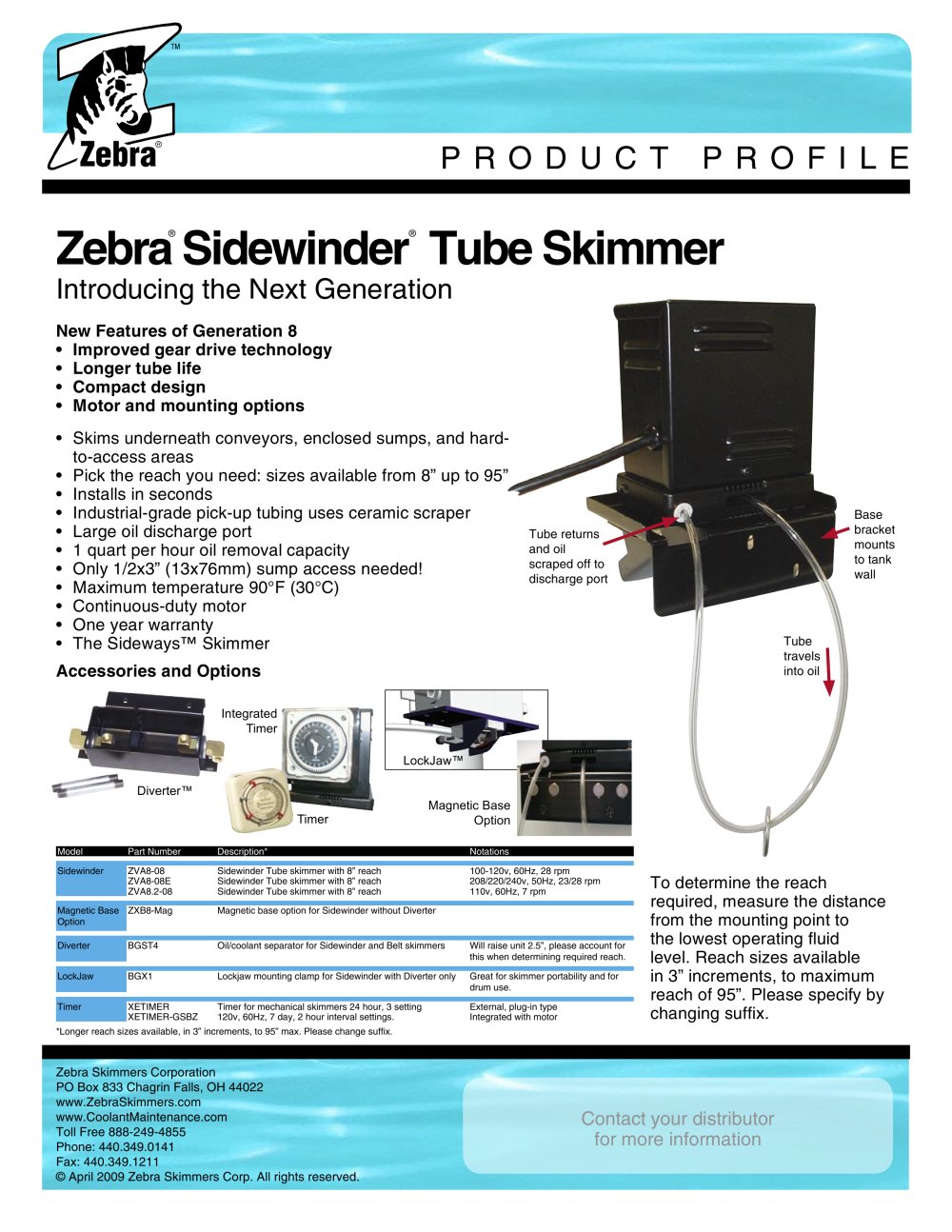

PRODUCT PROFILE Introducing the Next Generation Zebra Sidewinder Tube Skimmer New Features of Generation 8 • Improved gear drive technology • Longer tube life • Compact design • Motor and mounting options • Skims underneath conveyors, enclosed sumps, and hard-to-access areas • Pick the reach you need: sizes available from 8” up to 95” • Installs in seconds • Industrial-grade pick-up tubing uses ceramic scraper • Large oil discharge port • 1 quart per hour oil removal capacity • Only 1/2x3” (13x76mm) sump access needed! • Maximum temperature 90°F (30°C) • Continuous-duty motor • One year warranty • The Sideways™ Skimmer Model Part Number Description* Notations Sidewinder ZVA8-08 Sidewinder Tube skimmer with 8” reach 100-120v, 60Hz, 28 rpm ZVA8-08E Sidewinder Tube skimmer with 8” reach 208/220/240v, 50Hz, 23/28 rpm ZVA8.2-08 Sidewinder Tube skimmer with 8” reach 110v, 60Hz, 7 rpm Magnetic Base Option ZXB8-Mag Magnetic base option for Sidewinder without Diverter Diverter BGST4 Oil/coolant separator for Sidewinder and Belt skimmers Will raise unit 2.5”, please account for this when determining required reach. LockJaw BGX1 Lockjaw mounting clamp for Sidewinder with Diverter only Great for skimmer portability and for drum use. Timer XETIMER Timer for mechanical skimmers 24 hour, 3 setting External, plug-in type XETIMER-GSBZ 120v, 60Hz, 7 day, 2 hour interval settings. Integrated with motor*Longer reach sizes available, in 3” increments, to 95” max. Please change suffix. To determine the reach required, measure the distance from the mounting point to the lowest operating fluid level. Reach sizes available in 3” increments, to maximum reach of 95”. Please specify by changing suffix. Diverter™ LockJaw™ Timer Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © April 2009 Zebra Skimmers Corp. All rights reserved. ® Contact your distributor for more information Tube returns and oil scraped off to discharge port Tube travels into oil Base bracket mounts to tank wall ® Magnetic Base Option Integrated Timer Accessories and Options
