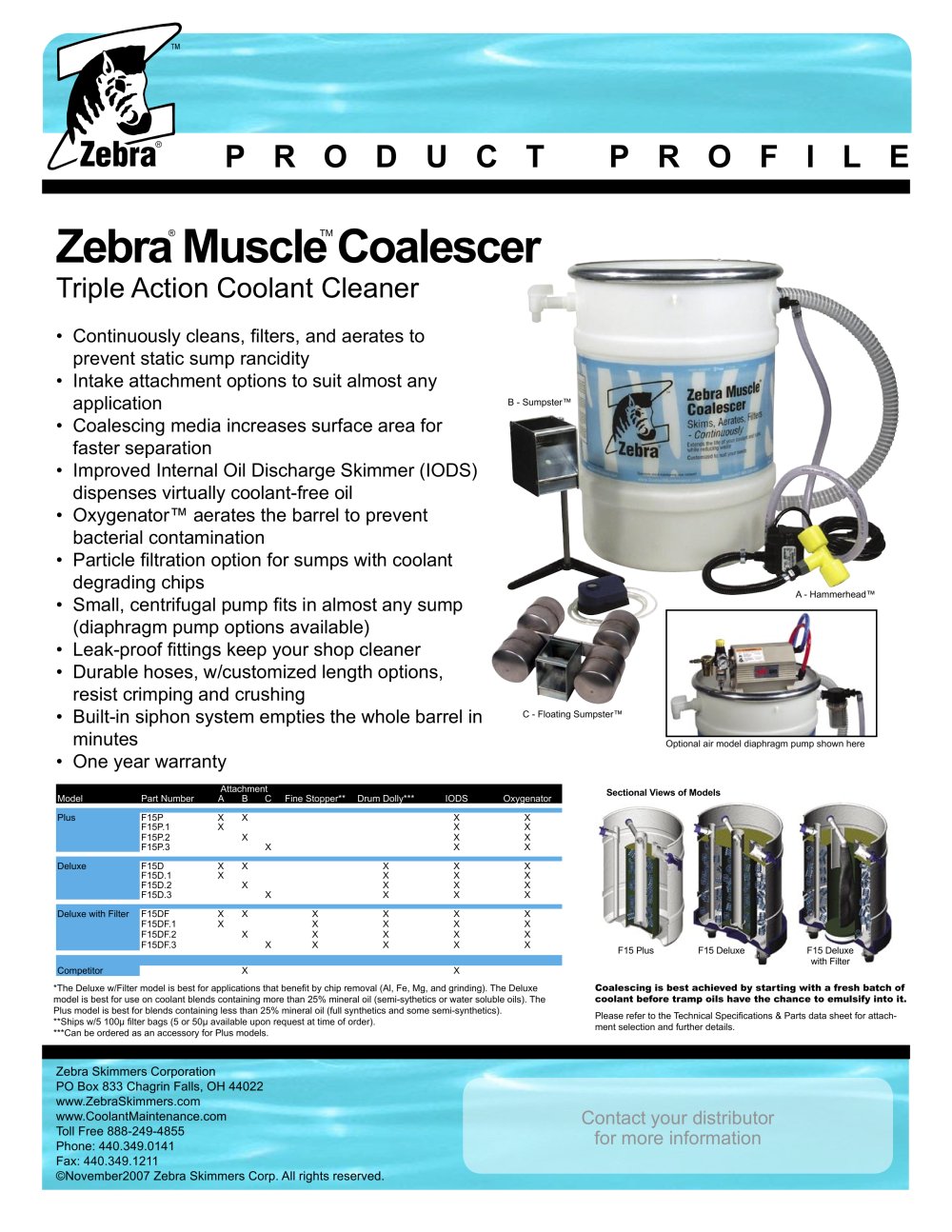

Muscle™ Coalescer
1Pages

PRODUCT PROFILE • Continuously cleans, filters, and aerates to prevent static sump rancidity • Intake attachment options to suit almost any application • Coalescing media increases surface area for faster separation • Improved Internal Oil Discharge Skimmer (IODS) dispenses virtually coolant-free oil • Oxygenator™ aerates the barrel to prevent bacterial contamination • Particle filtration option for sumps with coolant degrading chips • Small, centrifugal pump fits in almost any sump (diaphragm pump options available) • Leak-proof fittings keep your shop cleaner • Durable hoses, w/customized length options, resist crimping and crushing • Built-in siphon system empties the whole barrel in minutes • One year warranty Attachment Model Part Number A B C Fine Stopper** Drum Dolly*** IODS Oxygenator Plus F15P X X X X F15P.1 X X X F15P.2 X X X F15P.3 X X X Deluxe F15D X X X X X F15D.1 X X X X F15D.2 X X X X F15D.3 X X X X Deluxe with Filter F15DF X X X X X X F15DF.1 X X X X X F15DF.2 X X X X X F15DF.3 X X X X X Competitor X X Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 ©November2007 Zebra Skimmers Corp. All rights reserved. Contact your distributor for more information Zebra Muscle Coalescer ® Triple Action Coolant Cleaner TM *The Deluxe w/Filter model is best for applications that benefit by chip removal (Al, Fe, Mg, and grinding). The Deluxe model is best for use on coolant blends containing more than 25% mineral oil (semi-sythetics or water soluble oils). The Plus model is best for blends containing less than 25% mineral oil (full synthetics and some semi-synthetics). **Ships w/5 100ì filter bags (5 or 50ì available upon request at time of order). ***Can be ordered as an accessory for Plus models. F15 Plus F15 Deluxe F15 Deluxe with Filter Sectional Views of Models Optional air model diaphragm pump shown here Coalescing is best achieved by starting with a fresh batch of coolant before tramp oils have the chance to emulsify into it. Please refer to the Technical Specifications & Parts data sheet for attachment selection and further details. A - Hammerhead™ B - Sumpster™ C - Floating Sumpster™
