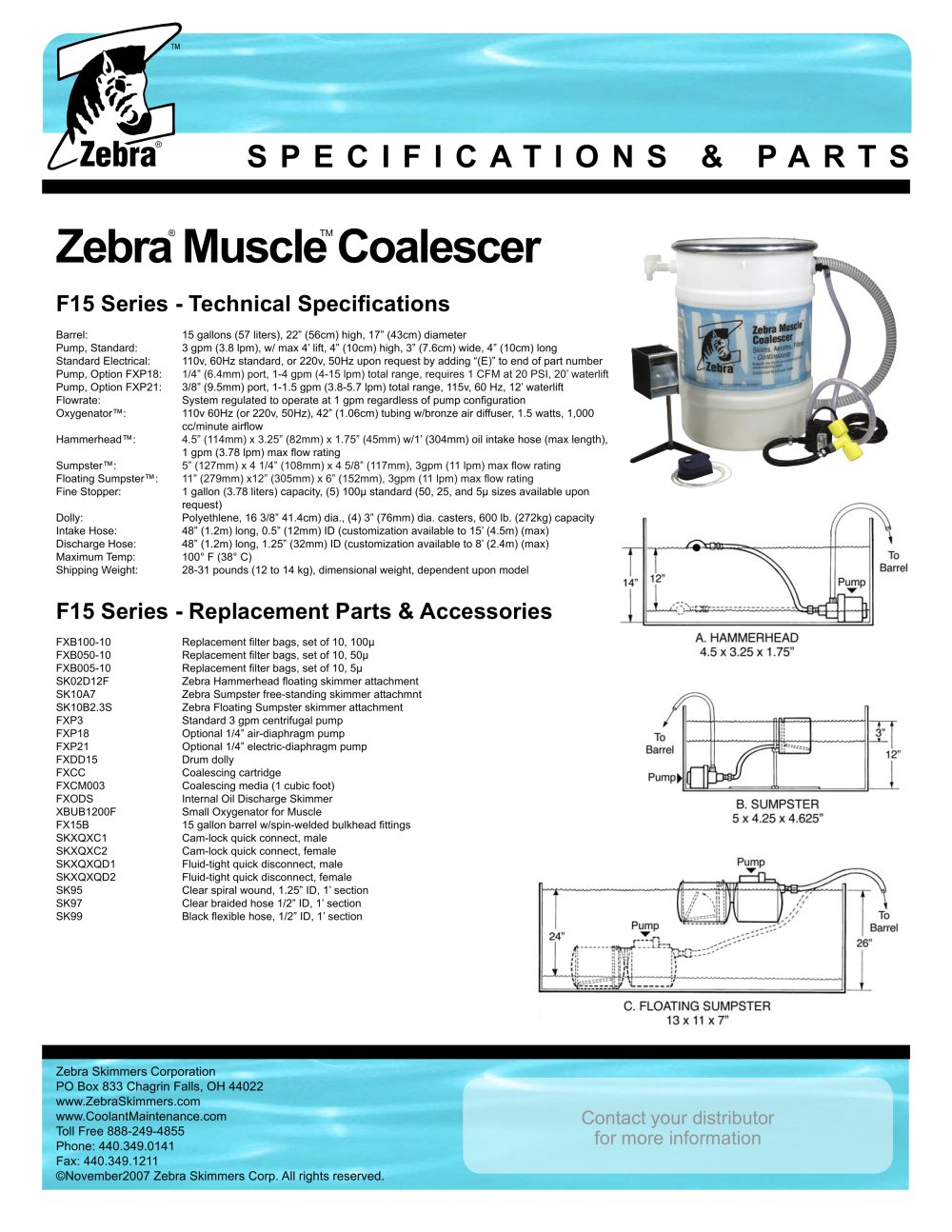

SPECIFICATIONS & PARTS Zebra Muscle Coalescer Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 ©November2007 Zebra Skimmers Corp. All rights reserved. ® Contact your distributor for more information F15 Series - Technical Specifications Barrel: 15 gallons (57 liters), 22” (56cm) high, 17” (43cm) diameter Pump, Standard: 3 gpm (3.8 lpm), w/ max 4’ lift, 4” (10cm) high, 3” (7.6cm) wide, 4” (10cm) long Standard Electrical: 110v, 60Hz standard, or 220v, 50Hz upon request by adding “(E)” to end of part number Pump, Option FXP18: 1/4” (6.4mm) port, 1-4 gpm (4-15 lpm) total range, requires 1 CFM at 20 PSI, 20’ waterlift Pump, Option FXP21: 3/8” (9.5mm) port, 1-1.5 gpm (3.8-5.7 lpm) total range, 115v, 60 Hz, 12’ waterlift Flowrate: System regulated to operate at 1 gpm regardless of pump configuration Oxygenator™: 110v 60Hz (or 220v, 50Hz), 42” (1.06cm) tubing w/bronze air diffuser, 1.5 watts, 1,000 cc/minute airflow Hammerhead™: 4.5” (114mm) x 3.25” (82mm) x 1.75” (45mm) w/1’ (304mm) oil intake hose (max length), 1 gpm (3.78 lpm) max flow rating Sumpster™: 5” (127mm) x 4 1/4” (108mm) x 4 5/8” (117mm), 3gpm (11 lpm) max flow rating Floating Sumpster™: 11” (279mm) x12” (305mm) x 6” (152mm), 3gpm (11 lpm) max flow rating Fine Stopper: 1 gallon (3.78 liters) capacity, (5) 100ì standard (50, 25, and 5ì sizes available upon request) Dolly: Polyethlene, 16 3/8” 41.4cm) dia., (4) 3” (76mm) dia. casters, 600 lb. (272kg) capacity Intake Hose: 48” (1.2m) long, 0.5” (12mm) ID (customization available to 15’ (4.5m) (max) Discharge Hose: 48” (1.2m) long, 1.25” (32mm) ID (customization available to 8’ (2.4m) (max) Maximum Temp: 100° F (38° C) Shipping Weight: 28-31 pounds (12 to 14 kg), dimensional weight, dependent upon model F15 Series - Replacement Parts & Accessories FXB100-10 Replacement filter bags, set of 10, 100ì FXB050-10 Replacement filter bags, set of 10, 50ì FXB005-10 Replacement filter bags, set of 10, 5ì SK02D12F Zebra Hammerhead floating skimmer attachment SK10A7 Zebra Sumpster free-standing skimmer attachmnt SK10B2.3S Zebra Floating Sumpster skimmer attachment FXP3 Standard 3 gpm centrifugal pump FXP18 Optional 1/4” air-diaphragm pump FXP21 Optional 1/4” electric-diaphragm pump FXDD15 Drum dolly FXCC Coalescing cartridge FXCM003 Coalescing media (1 cubic foot) FXODS Internal Oil Discharge Skimmer XBUB1200F Small Oxygenator for Muscle FX15B 15 gallon barrel w/spin-welded bulkhead fittings SKXQXC1 Cam-lock quick connect, male SKXQXC2 Cam-lock quick connect, female SKXQXQD1 Fluid-tight quick disconnect, male SKXQXQD2 Fluid-tight quick disconnect, female SK95 Clear spiral wound, 1.25” ID, 1’ section SK97 Clear braided hose 1/2” ID, 1’ section SK99 Black flexible hose, 1/2” ID, 1’ section TM
