Economy Mixer
Economy Mixer
The Zebra Economy Mixer is designed for efficient mixing of coolants with water using a Venturi pump system. It includes 14 metering tips for specific mixing ratios and is suitable for use with a maximum viscosity of 500 SUS. The mixer supports a flow rate of 4.8 gallons per minute (18 liters per minute) and comes with a 48-inch intake tube with a check valve and a 48-inch discharge tube. It requires a minimum pressure of 25 psi and can handle up to 75 psi, fitting easily on 55-gallon barrels. The product comes with a 30-day warranty.
- Maximum viscosity: 500 SUS
- Flow rate: 4.8 gpm (18 lpm)
- Intake tube: 48 inches with check valve
- Discharge tube: 48 inches (longer lengths available with proportioning pump series)
- Pressure requirement: 25 psi (maximum 75 psi)
- Warranty: 30 days
The mixer includes metering tips for various ratios, tested at 40 psi with water-thin viscosity. The ratios range from 4.5:1 to 400:1, with corresponding concentration percentages from 22.2% to 0.25%.
The Venturi pump system operates by moving water across a coolant orifice, creating a low-pressure zone that draws coolant into the water stream. This results in a strong turbulent zone where the fluids are thoroughly mixed. The system's reliability is enhanced by the absence of moving parts. A needle valve allows for precise adjustment of the coolant-to-water ratio.
Zebra Skimmers Corporation
PO Box 833, Chagrin Falls, OH 44022
Website: www.ZebraSkimmers.com | www.CoolantMaintenance.com
Toll-Free: 888-249-4855 | Phone: 440.349.0141 | Fax: 440.349.1211
Catalog excerpts

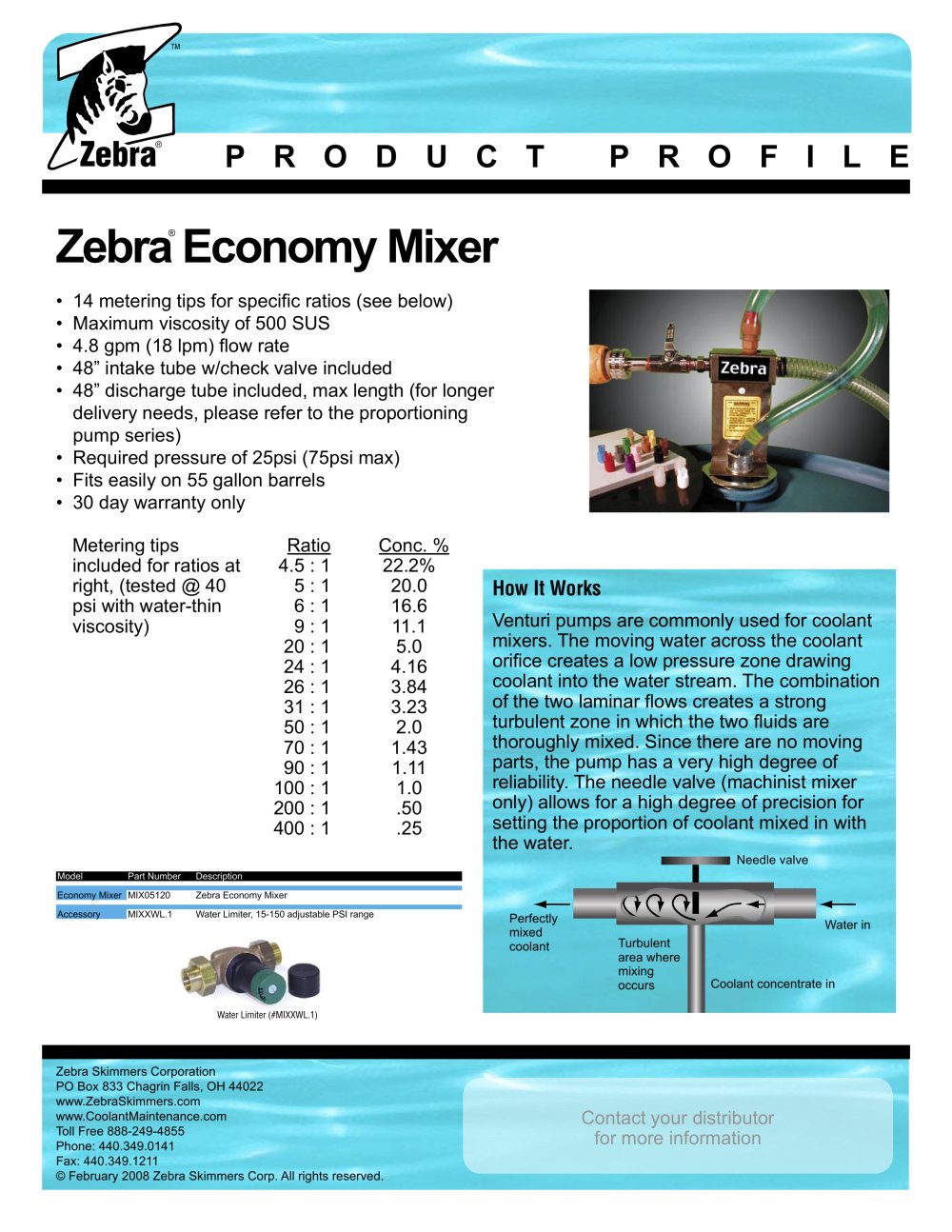

PRODUCT PROFILE • 14 metering tips for specific ratios (see below) • Maximum viscosity of 500 SUS • 4.8 gpm (18 lpm) flow rate • 48” intake tube w/check valve included • 48” discharge tube included, max length (for longer delivery needs, please refer to the proportioning pump series) • Required pressure of 25psi (75psi max) • Fits easily on 55 gallon barrels • 30 day warranty only Model Part Number Description Economy Mixer MIX05120 Zebra Economy Mixer Accessory MIXXWL.1 Water Limiter, 15-150 adjustable PSI range Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 © February 2008 Zebra Skimmers Corp. All rights reserved. Contact your distributor for more information Zebra Economy Mixer ® Metering tips included for ratios at right, (tested @ 40 psi with water-thin viscosity) Ratio 4.5 : 1 5 : 1 6 : 1 9 : 1 20 : 1 24 : 1 26 : 1 31 : 1 50 : 1 70 : 1 90 : 1 100 : 1 200 : 1 400 : 1 How It Works Venturi pumps are commonly used for coolant mixers. The moving water across the coolant orifice creates a low pressure zone drawing coolant into the water stream. The combination of the two laminar flows creates a strong turbulent zone in which the two fluids are thoroughly mixed. Since there are no moving parts, the pump has a very high degree of reliability. The needle valve (machinist mixer only) allows for a high degree of precision for setting the proportion of coolant mixed in with the water. Needle valve Water in Coolant concentrate in Turbulent area where mixing occurs Perfectly mixed coolant Water Limiter (#MIXXWL.1) Conc. % 22.2% 20.0 16.6 11.1 5.0 4.16 3.84 3.23 2.0 1.43 1.11 1.0 .50 .25
