Disc Skimmer
Disc Skimmer
The Smart Disk Skimmer offers significant cost savings, approximately $300 annually, compared to traditional disk skimmers. It features an Integrated Diverter™ that distinguishes between floating tramp oils and coolant, ensuring efficient operation.
Specifications
- Continuous-duty, fan-cooled motor
- Rugged steel construction
- Lifetime warranty on disk and scrapers; one-year warranty on other parts
- Oil removal capacity of 2 quarts per hour
- Requires 1/2x12” (13x300mm) sump access for the 12” disk model
- Operates at maximum temperatures of 80°F (27°C)
Models and Accessories
- GS4H300: 12” high-impact disk, 4.5” reach
- GS4H460: 18” high-impact disk, 7.0” reach
- GS4H610: 24” high-impact disk, 9.5” reach
- XETIMER: Timer for mechanical skimmers with 24-hour, 3-setting options
Operational Guidance
To determine the required reach, measure the distance from the mounting point to the lowest operating fluid level.
Contact Information
Zebra Skimmers Corporation
PO Box 833 Chagrin Falls, OH 44022
Website: www.ZebraSkimmers.com
Toll-Free: 888-249-4855
Phone: 440-349-0141
Fax: 440-349-1211
How It Works
- Oil (tramp and coolant) enters the system.
- Coolant sinks and passes under a weir.
- Clean coolant returns to the sump.
- Tramp oils are discharged to a waste container.
Cost Efficiency
The GS Disk Skimmer reduces operating costs significantly, with a comparison showing $536 per year using old disk skimmers versus $250 with the GS Disk Skimmer, resulting in a $286 savings.
Catalog excerpts

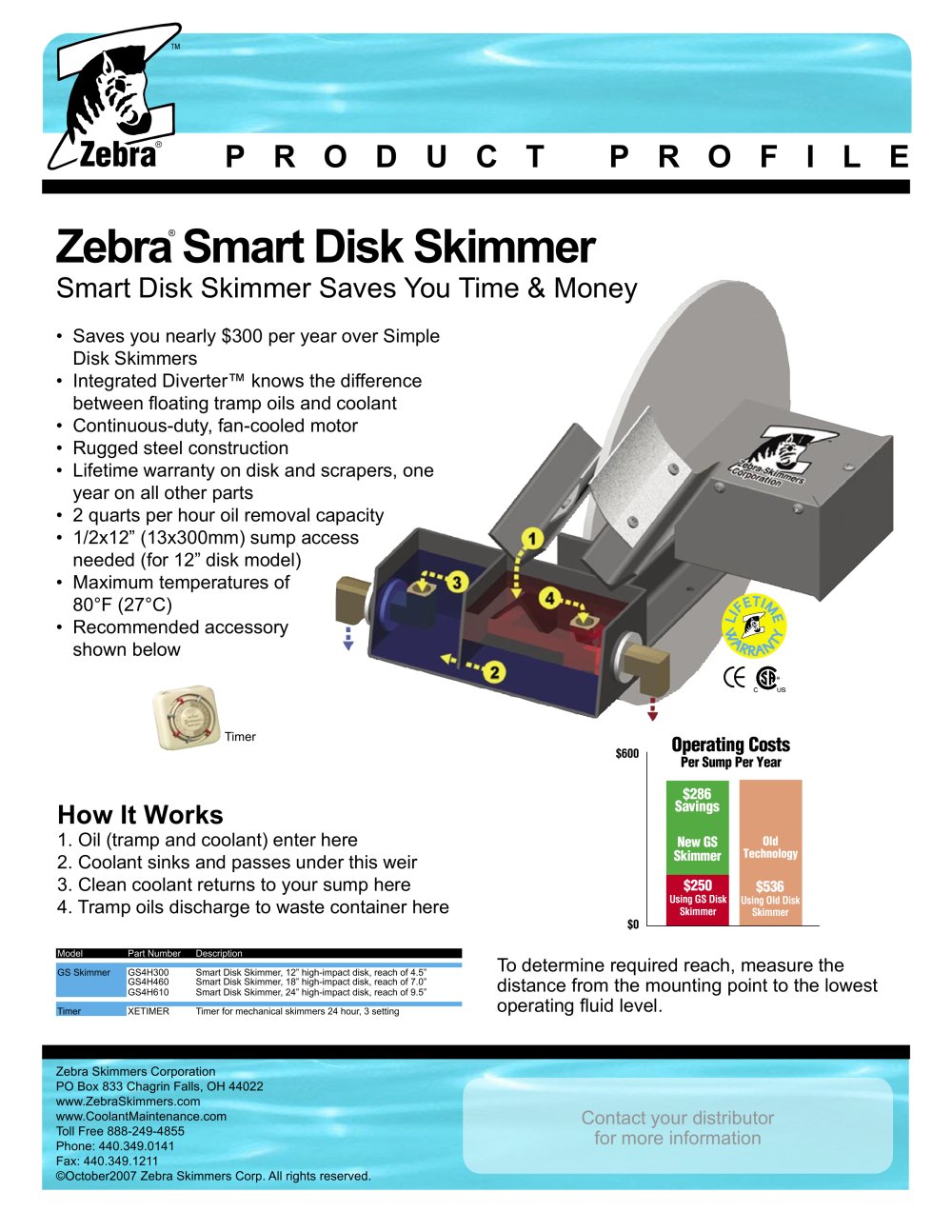

PRODUCT PROFILE • Saves you nearly $300 per year over Simple Disk Skimmers • Integrated Diverter™ knows the difference between floating tramp oils and coolant • Continuous-duty, fan-cooled motor • Rugged steel construction • Lifetime warranty on disk and scrapers, one year on all other parts • 2 quarts per hour oil removal capacity • 1/2x12” (13x300mm) sump access needed (for 12” disk model) • Maximum temperatures of 80°F (27°C) • Recommended accessory shown below Model Part Number Description GS Skimmer GS4H300 Smart Disk Skimmer, 12” high-impact disk, reach of 4.5” GS4H460 Smart Disk Skimmer, 18” high-impact disk, reach of 7.0” GS4H610 Smart Disk Skimmer, 24” high-impact disk, reach of 9.5” Timer XETIMER Timer for mechanical skimmers 24 hour, 3 setting To determine required reach, measure the distance from the mounting point to the lowest operating fluid level. Timer Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 ©October2007 Zebra Skimmers Corp. All rights reserved. Contact your distributor for more information Zebra Smart Disk Skimmer ® Smart Disk Skimmer Saves You Time & Money How It Works 1. Oil (tramp and coolant) enter here 2. Coolant sinks and passes under this weir 3. Clean coolant returns to your sump here 4. Tramp oils discharge to waste container here Operating CostsPer Sump Per Year$600$0$536Using Old Disk Skimmer$250Using GS Disk Skimmer$286 SavingsNew GS SkimmerOld Technology
