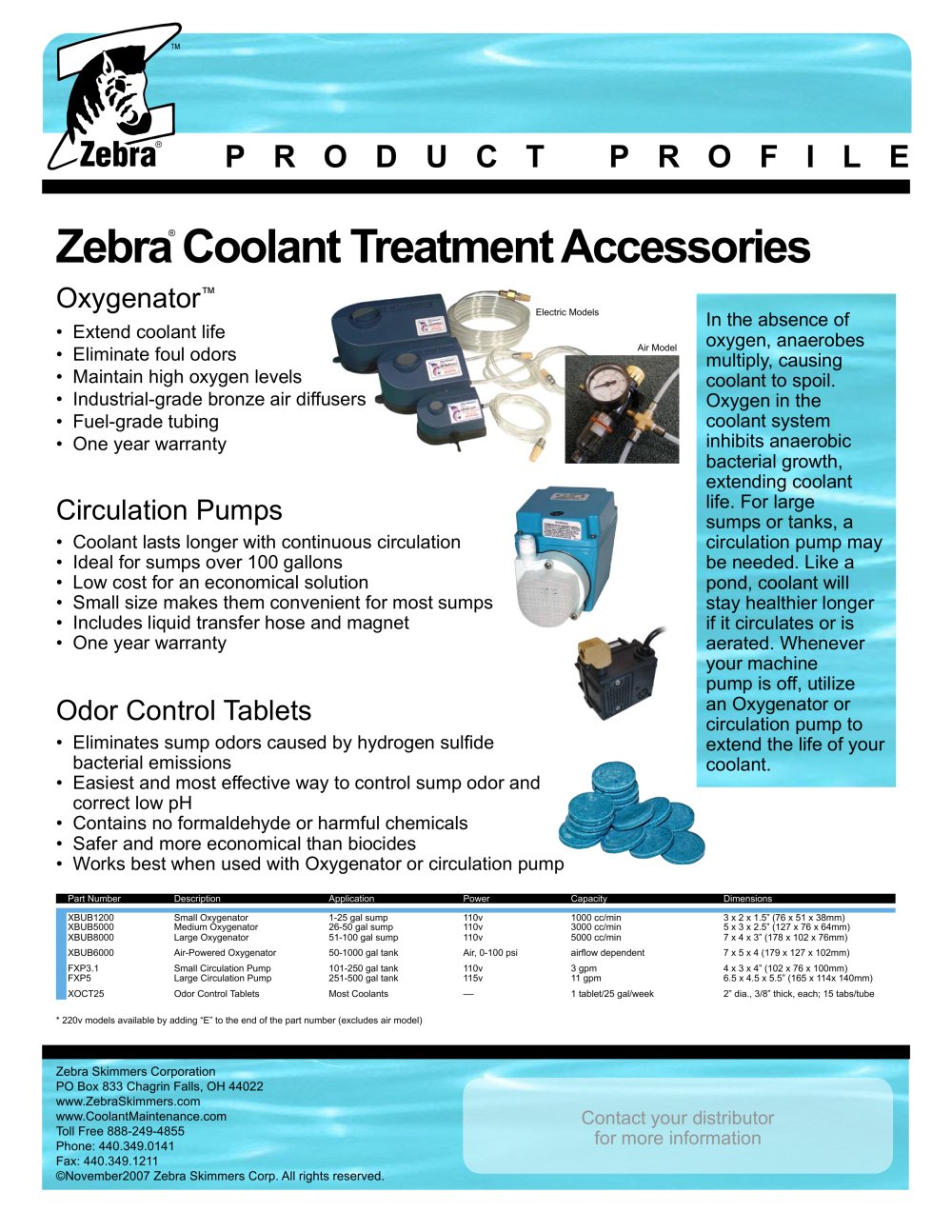

PRODUCT PROFILE Part Number Description Application Power Capacity Dimensions XBUB1200 Small Oxygenator 1-25 gal sump 110v 1000 cc/min 3 x 2 x 1.5” (76 x 51 x 38mm) XBUB5000 Medium Oxygenator 26-50 gal sump 110v 3000 cc/min 5 x 3 x 2.5” (127 x 76 x 64mm) XBUB8000 Large Oxygenator 51-100 gal sump 110v 5000 cc/min 7 x 4 x 3” (178 x 102 x 76mm) XBUB6000 Air-Powered Oxygenator 50-1000 gal tank Air, 0-100 psi airflow dependent 7 x 5 x 4 (179 x 127 x 102mm) FXP3.1 Small Circulation Pump 101-250 gal tank 110v 3 gpm 4 x 3 x 4” (102 x 76 x 100mm) FXP5 Large Circulation Pump 251-500 gal tank 115v 11 gpm 6.5 x 4.5 x 5.5” (165 x 114x 140mm) XOCT25 Odor Control Tablets Most Coolants –– 1 tablet/25 gal/week 2” dia., 3/8” thick, each; 15 tabs/tube * 220v models available by adding “E” to the end of the part number (excludes air model) Zebra Skimmers Corporation PO Box 833 Chagrin Falls, OH 44022 www.ZebraSkimmers.com www.CoolantMaintenance.com Toll Free 888-249-4855 Phone: 440.349.0141 Fax: 440.349.1211 ©November2007 Zebra Skimmers Corp. All rights reserved. Contact your distributor for more information Zebra Coolant Treatment Accessories ® Oxygenator™ • Extend coolant life • Eliminate foul odors • Maintain high oxygen levels • Industrial-grade bronze air diffusers • Fuel-grade tubing • One year warranty In the absence of oxygen, anaerobes multiply, causing coolant to spoil. Oxygen in the coolant system inhibits anaerobic bacterial growth, extending coolant life. For large sumps or tanks, a circulation pump may be needed. Like a pond, coolant will stay healthier longer if it circulates or is aerated. Whenever your machine pump is off, utilize an Oxygenator or circulation pump to extend the life of your coolant. Circulation Pumps • Coolant lasts longer with continuous circulation • Ideal for sumps over 100 gallons • Low cost for an economical solution • Small size makes them convenient for most sumps • Includes liquid transfer hose and magnet • One year warranty Odor Control Tablets • Eliminates sump odors caused by hydrogen sulfide bacterial emissions • Easiest and most effective way to control sump odor and correct low pH • Contains no formaldehyde or harmful chemicals • Safer and more economical than biocides • Works best when used with Oxygenator or circulation pump Electric Models Air Model
