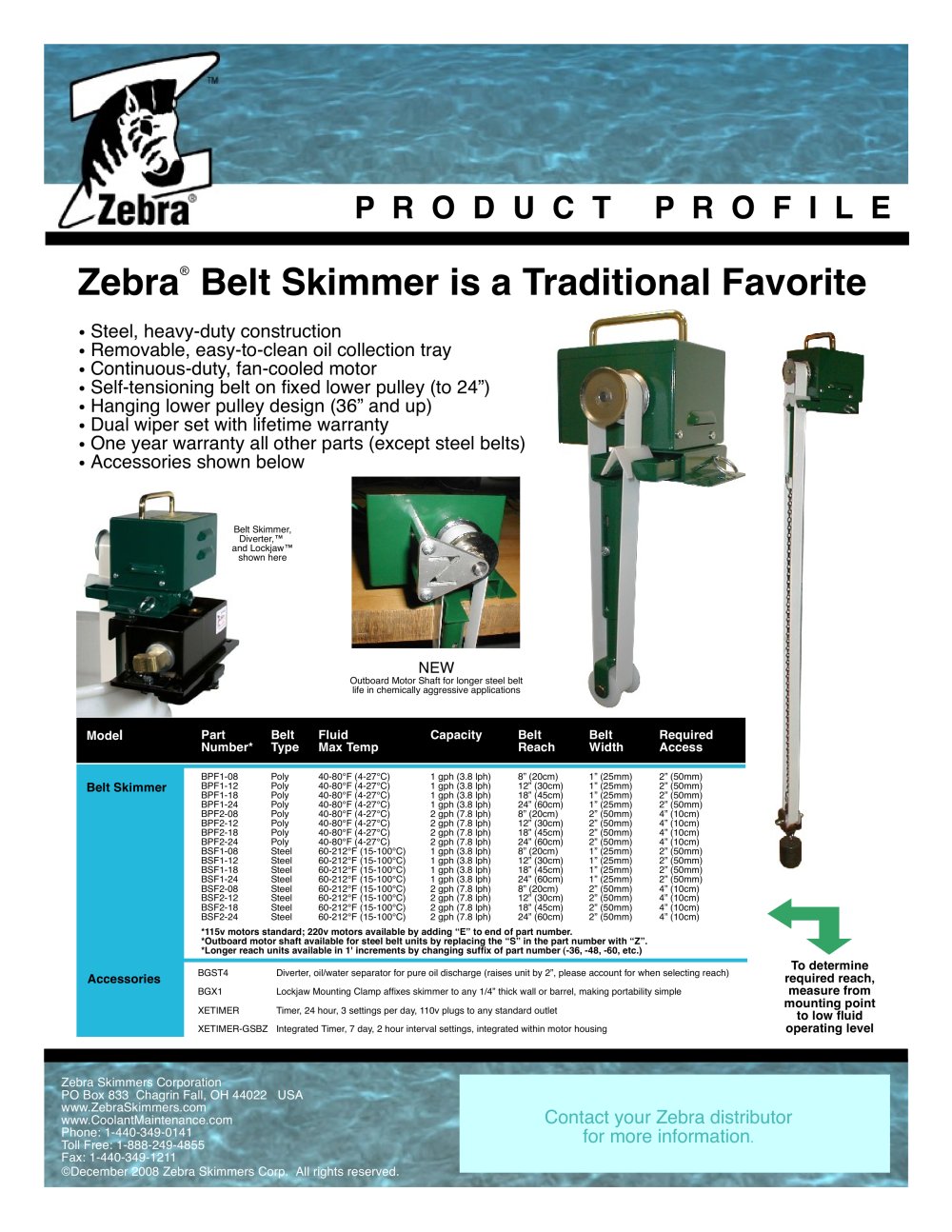

P R O D U C T P R O F I L E Zebra Skimmers Corporation PO Box 833 Chagrin Fall, OH 44022 USA www.ZebraSkimmers.com www.CoolantMaintenance.com Phone: 1-440-349-0141 Toll Free: 1-888-249-4855 Fax: 1-440-349-1211 Contact your Zebra distributor for more information. ©December 2008 Zebra Skimmers Corp. All rights reserved. Belt Skimmer Model Part Number* Belt Width BPF1-08 BPF1-12 BPF1-18 BPF1-24 BPF2-08 BPF2-12 BPF2-18 BPF2-24 BSF1-08 BSF1-12 BSF1-18 BSF1-24 BSF2-08 BSF2-12 BSF2-18 BSF2-24 Fluid Max Temp Zebra Belt Skimmer is a Traditional Favorite ® œ Steel, heavy-duty construction œ Removable, easy-to-clean oil collection tray œ Continuous-duty, fan-cooled motor œ Self-tensioning belt on fixed lower pulley (to 24”) œ Hanging lower pulley design (36” and up) œ Dual wiper set with lifetime warranty œ One year warranty all other parts (except steel belts) œ Accessories shown below Belt Reach Required Access Belt Type Capacity Poly Poly Poly Poly Poly Poly Poly Poly Steel Steel Steel Steel Steel Steel Steel Steel 40-80°F (4-27°C) 40-80°F (4-27°C) 40-80°F (4-27°C) 40-80°F (4-27°C) 40-80°F (4-27°C) 40-80°F (4-27°C) 40-80°F (4-27°C) 40-80°F (4-27°C) 60-212°F (15-100°C) 60-212°F (15-100°C) 60-212°F (15-100°C) 60-212°F (15-100°C) 60-212°F (15-100°C) 60-212°F (15-100°C) 60-212°F (15-100°C) 60-212°F (15-100°C) 1 gph (3.8 lph) 1 gph (3.8 lph) 1 gph (3.8 lph) 1 gph (3.8 lph) 2 gph (7.8 lph) 2 gph (7.8 lph) 2 gph (7.8 lph) 2 gph (7.8 lph) 1 gph (3.8 lph) 1 gph (3.8 lph) 1 gph (3.8 lph) 1 gph (3.8 lph) 2 gph (7.8 lph) 2 gph (7.8 lph) 2 gph (7.8 lph) 2 gph (7.8 lph) 1” (25mm) 1” (25mm) 1” (25mm) 1” (25mm) 2” (50mm) 2” (50mm) 2” (50mm) 2” (50mm) 1” (25mm) 1” (25mm) 1” (25mm) 1” (25mm) 2” (50mm) 2” (50mm) 2” (50mm) 2” (50mm) 8” (20cm) 12” (30cm) 18” (45cm) 24” (60cm) 8” (20cm) 12” (30cm) 18” (45cm) 24” (60cm) 8” (20cm) 12” (30cm) 18” (45cm) 24” (60cm) 8” (20cm) 12” (30cm) 18” (45cm) 24” (60cm) *115v motors standard; 220v motors available by adding “E” to end of part number. *Outboard motor shaft available for steel belt units by replacing the “S” in the part number with “Z”. *Longer reach units available in 1' increments by changing suffix of part number (-36, -48, -60, etc.) 2” (50mm) 2” (50mm) 2” (50mm) 2” (50mm) 4” (10cm) 4” (10cm) 4” (10cm) 4” (10cm) 2” (50mm) 2” (50mm) 2” (50mm) 2” (50mm) 4” (10cm) 4” (10cm) 4” (10cm) 4” (10cm) Belt Skimmer, Diverter,™ and Lockjaw™ shown here NEW Outboard Motor Shaft for longer steel belt life in chemically aggressive applications Accessories Diverter, oil/water separator for pure oil discharge (raises unit by 2”, please account for when selecting reach) Lockjaw Mounting Clamp affixes skimmer to any 1/4” thick wall or barrel, making portability simple Timer, 24 hour, 3 settings per day, 110v plugs to any standard outlet Integrated Timer, 7 day, 2 hour interval settings, integrated within motor housing BGST4 BGX1 XETIMER XETIMER-GSBZ To determine required reach, measure from mounting point to low fluid operating level
