Z5000PI

Product catalog summary

Overview: The Z5000Pi is a high-performance industrial printer designed for high contrast coding using a variety of colored pigmented inks. It features automatic visible double flushing with solvent recycling and automatic ink mixing for consistent code quality and reliable performance. The advanced hydraulic system eliminates the need for factory air, and the device is equipped with a vapour condenser to reduce consumption. It is IP65 rated for use in challenging industrial environments.

Technical Features:

Printing Characteristics: Capable of printing up to 5 lines with character heights ranging from 1 to 14 mm. It supports line speeds up to 320 meters per minute and a print rate of up to 2136 characters per second. The printer can store 250 messages and up to 250 characters per message, with selectable line vertical gaps and various font matrices. It includes features like bold factor, logo creation, automatic date printing, product counters, and printing in all directions.
Bar Codes: Supports multiple barcode formats including 2/5 Industrial, UPC-A, CODE 39, EAN 13, CODE 128, UCC/EAN-128, ITF, and 2D Data Matrix.
Control Unit: Features a solvent-resistant membrane keyboard, a high-contrast blue display, and a stainless steel structure with IP65 rating. It includes a 4-meter conduit length.
General Features: Includes a single start/stop button, automatic cleaning, vapour recovery system, and a new hydraulic system for quick start-up. It offers keypad access with password protection, foreign language prompts, and a report function for printing counters.
Printhead: The printhead is serviceable and replaceable, with hermetically sealed components and auto-phasing of the ink stream. It has dimensions of 227mm x 42mm x 49mm.
External Connections: Provides serial connections (RS232 and RS485/422), sensor management, system ready output, shaft encoder input, external alarm outputs, and a parallel interface BCD.
Environment/Electrical Requirements: Operates in temperatures from 5° to 45°C and humidity levels of 10-90% (non-condensing). It requires a single-phase power supply of 85-240Vac, 50-60Hz, 200VA.

Contact Information: The document provides contact details for Zanasi's offices in Italy, USA, and China.

Catalog excerpts

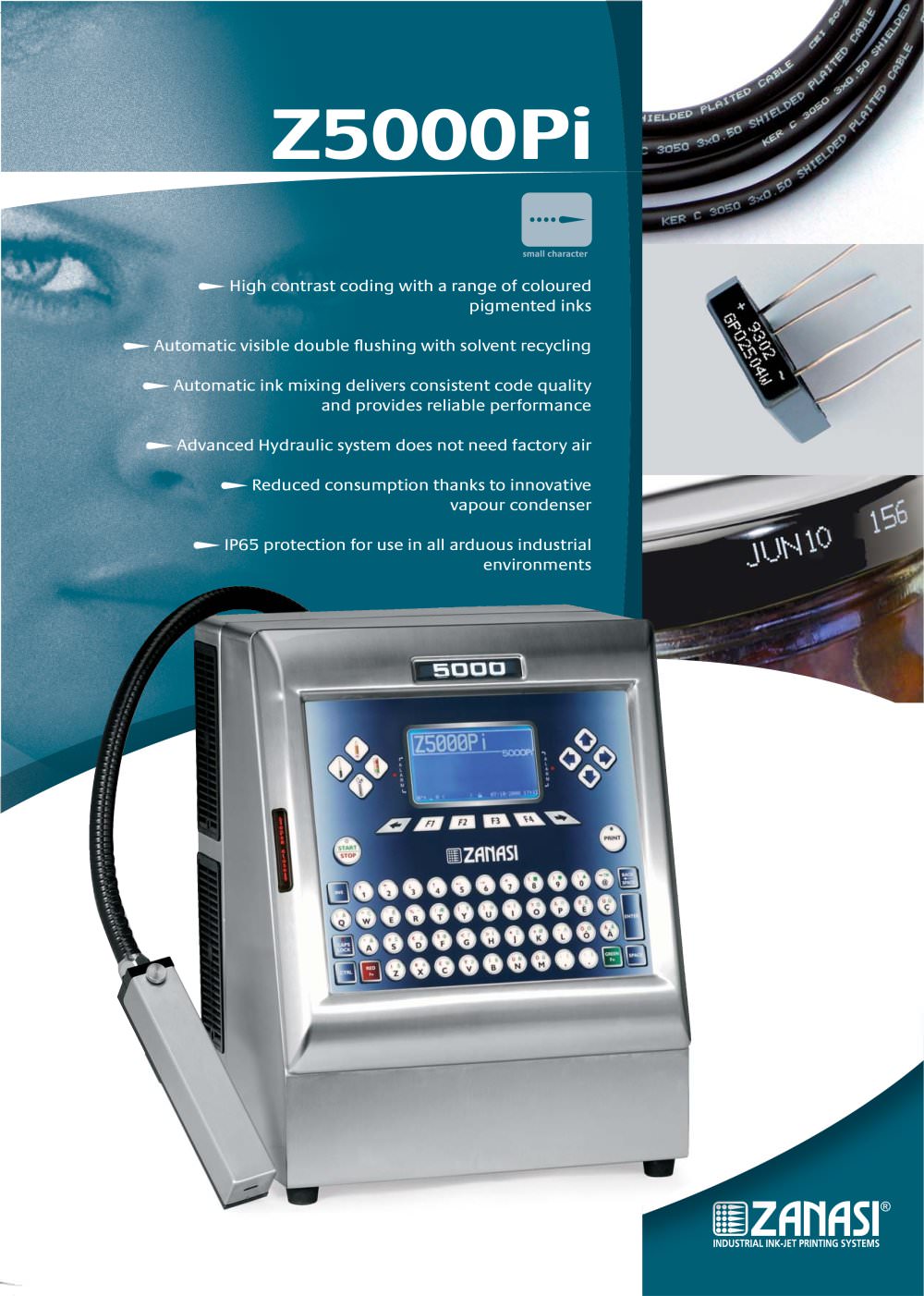

small character High contrast coding with a range of coloured pigmented inks Automatic visible double fl ushing with solvent recycling Automatic ink mixing delivers consistent code qualityand provides reliable performance Advanced Hydraulic system does not need factory air Reduced consumption thanks to innovativevapour condenser IP65 protection for use in all arduous industrial environments >

Open the catalog to page 1

487mm19,2325mm 13,0Ԕ370mm14,6 Printing Characteristics Up to 5 lines of print Characters height from 1 to 14 mm (0,04Ԕ - 0,56) Line speed capability: up to 320 mt/min (1050 ft/min) Print rate: up to 2136 ct/sec 250 messages storage Up to 250 characters storage per message Selectable lines vertical gap Font Matrix: 5x5, 7x5, 9x7, 15x10, 16x10, 24x16 and 32x18 Bold factor up to 8 times Simple Logo creation and printing 50 Logos storageAutomatic calendar and expiration date printIncrementing/decreasing Product counters up to 9 digits Repeat print Ԗ message function Printing in all moving directions...

Open the catalog to page 2
