Z5000

Product catalog summary

Overview: The document provides technical specifications and features of the Z5000 small character printer, highlighting its advanced printing capabilities, control unit characteristics, and environmental requirements.

Printing Characteristics: The Z5000 offers excellent print quality with high resolution, capable of printing up to 5 lines with character heights ranging from 0.8 to 14 mm. It supports various bar codes and 2D Datamatrix, with a print rate of up to 2136 characters per second and line speed capability of up to 300 meters per minute.

Control Unit Features: The control unit includes a blue WYSIWYG display with high contrast, a membrane keyboard resistant to solvents, and a stainless steel structure with IP65 protection. It supports multiple languages, message storage, and has a report function for printing counters.

Printing Head: The printing head features a micro print nozzle for high-resolution prints, hermetically sealed components, and auto-phasing of the ink stream. It includes a vapour recovery system to reduce consumption and supports automatic cleaning during start-up and shutdown.

Technical Features: The printer supports a variety of font matrices and bold factors, allows for simple logo creation and storage, and includes functions for automatic calendar and expiration date printing. It can print in all directions and supports a print throw distance of up to 90 mm.

External Connections: The Z5000 includes serial connections (RS232 and RS485/422), sensor management, system ready output, and external alarm outputs. It also supports a parallel interface BCD and shaft encoder input for variable speed production lines.

Environmental and Electrical Requirements: The printer operates in temperatures from 5° to 45°C and humidity levels of 10 - 90% (non-condensing). It requires a single-phase power supply of 85 - 240Vac, 50 - 60Hz, and 200VA.

Contact Information: The document provides contact details for Zanasi's offices in Italy, USA, and China.

Catalog excerpts

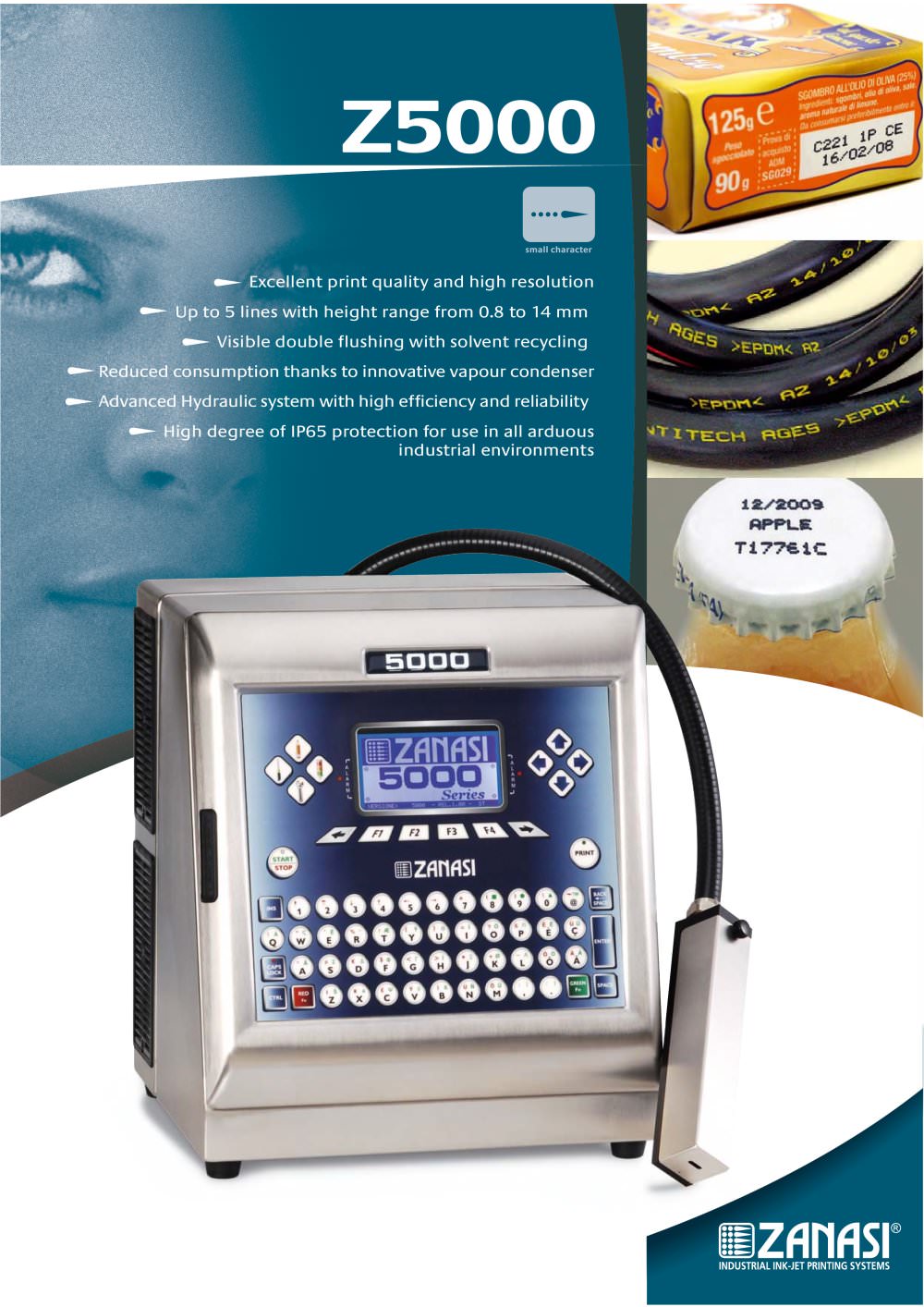

Excellent print quality and high resolution Up to 5 lines with height range from 0.8 to 14 mm Visible double flushing with solvent recycling Reduced consumption thanks to innovative vapour condenser Advanced Hydraulic system with high efficiency and reliability High degree of IP65 protection for use in all arduous industrial environments Z5000 small character

Open the catalog to page 1

printing characteristics control unit characteristics general features printing head technical features Z5000 bar codes Micro Print Nozzle for high quality resolution print (optional) Hermetically sealed printhead components Auto-phasing of ink stream for consistent print quality Dimensions: 227mm x 42 mm x 49 mm (9,0” x 1,7” x 1,9”) Conduit inlet at 90° (optional) Internal Supply Positive Air Function Single Start/Stop button Automatic cleaning in both Start up and Shut down Vapour recovery system for low make up consumption Print parameters stored within each message Keypad access with password...

Open the catalog to page 2
