Z4000 Smart Plus

Product catalog summary

Overview: The Z4000smart is a high-quality coding printer designed for various substrates, offering up to three lines of print with character heights ranging from 0.8 to 12 mm. It features a robust stainless steel structure and a user-friendly interface.

Printing Characteristics: The printer supports up to three lines of print with a character height range of 0.8 to 12 mm. It can operate at line speeds up to 300 meters per minute and a print rate of up to 2136 characters per second. The device can store 100 messages, each with up to 250 characters, and supports various font matrices and bold factors. It also includes features for logo creation, automatic date printing, and product counting.

Control Unit Features: The control unit is equipped with a solvent-resistant membrane keyboard and a backlit WYSIWYG display. It is housed in a stainless steel structure with an IP54 rating, ensuring durability and resistance to environmental factors.

General Features: The Z4000smart includes a single start/stop button, automatic cleaning, and viscosity and temperature control. It offers multi-level password access and supports multiple languages for the operator interface.

External Connections: The printer includes a serial port (RS232), sensor management for product detection, and various interfaces for print direction and speed control. It also features external alarm outputs.

Environmental and Electrical Requirements: The device operates within a temperature range of 5° to 45°C and humidity levels of 10 to 90% (non-condensing). It requires a single-phase power supply of 85 to 240 Vac, 50 to 60Hz, and 200 VA.

Technical Features: The Z4000smart supports various barcodes, including 2/5 Industrial, UPC-A, CODE39, and EAN 13. The printing head is hermetically sealed and includes automatic droplet diagnostics.

Contact Information: The document provides contact details for Zanasi's offices in Italy, the USA, and China.

Catalog excerpts

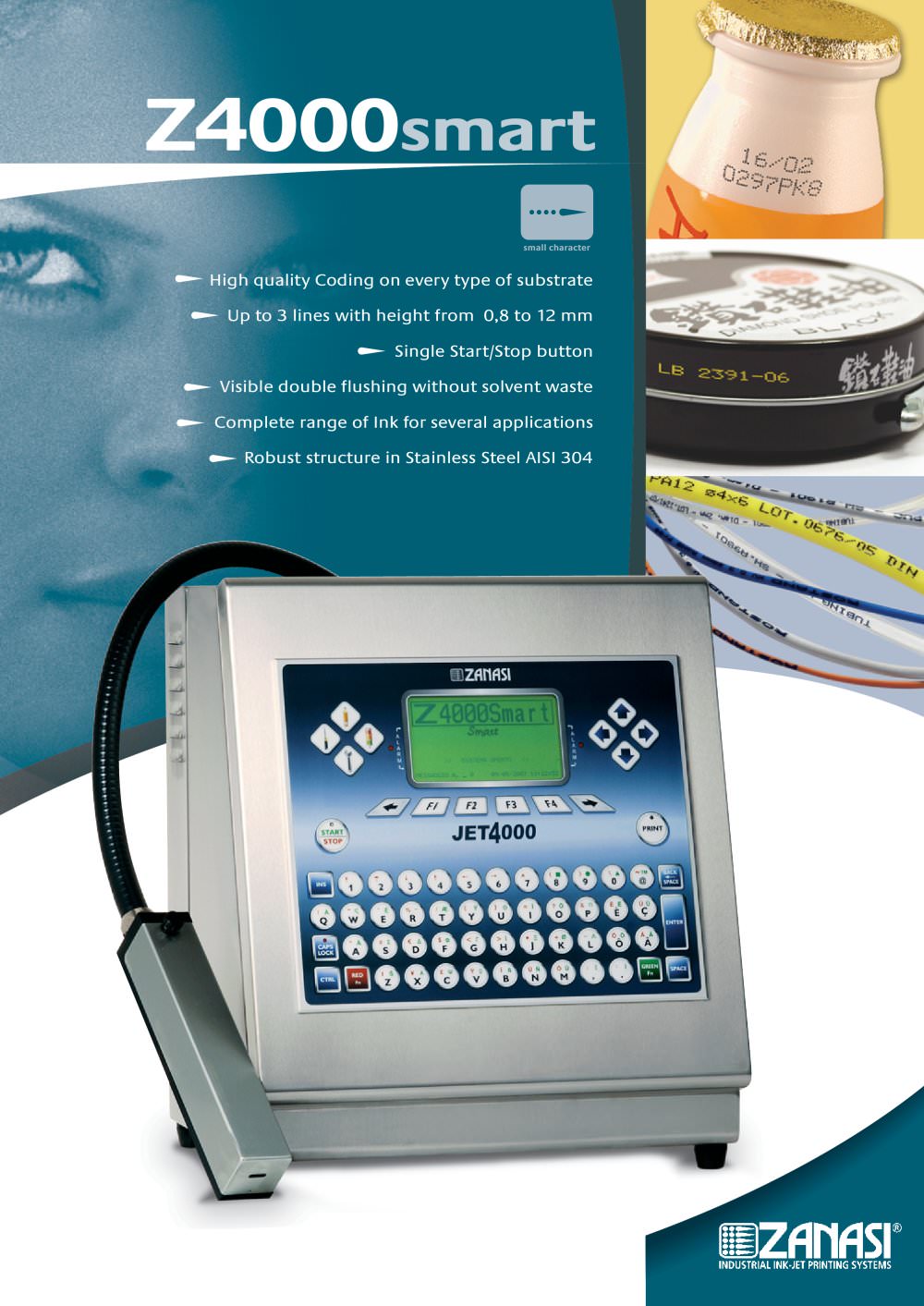

small character High quality Coding on every type of substrateUp to 3 lines with height from 0,8 to 12 mmSingle Start/Stop buttonVisible double flushing without solvent wasteComplete range of Ink for several applicationsRobust structure in Stainless Steel AISI 304 >

Open the catalog to page 1

printing characteristics Up to 3 lines of print Character height from 0,8 to 12 mm (0,032 - 0,47Ԕ) Line Speed capability: up to a 300 mt/min (984 ft/min) Print rate: up to 2136 ct/sec 100 messages storage 250 characters storage per message Selectable lines vertical gapFont Matrix: 5x5, 7x5, 9x7, 15x10 and 16x10Bold factor up to 8 times Logo creation and printing 30 Logos storage Automatic calendar and expiration date print Incremental/decreasing Product counter up to 9 digits Repeat print message function Coding throw distance up to 90 mm (3,54֔) Printing in all moving directions > 370mm14,6319mm12,5Ԕ...

Open the catalog to page 2
