Z101

Product catalog summary

Overview: The Z101 is a compact and innovative industrial printer designed for easy integration into production lines. It features a 5.7-inch touch screen panel with a backlit LCD display, supporting single line coding with print heights ranging from 7 to 24 mm.

Printing Features: The Z101 utilizes a 7-dot printhead capable of printing at speeds up to 60 meters per minute and a rate of 56 characters per second. It can store up to 100 messages, each containing 80 characters, and supports multiple fonts and bold factors. The printer includes features such as automatic calendar and expiration date printing, a product counter, and 180° text rotation.

Control Unit Characteristics: The control unit includes an internal pump for ink pressurization, an integrated optical sensor, and a stainless steel structure with an IP54 rating. It offers a user-friendly interface with password-protected keypad access and a report function for printing counters.

Printhead: The printhead is serviceable and replaceable, featuring Zanasi's robust valve technology. It supports a slant function for varying character heights and can expand up to 85 mm for optimal product approach.

External Connections: The Z101 provides a serial connection via RS232 and includes visual and acoustic alarms for operational alerts.

Environmental and Electrical Requirements: The printer operates within a temperature range of 0° to 50°C and humidity levels of 0 to 90% (non-condensing). It requires a single-phase power supply of 85-240Vac, 50-60Hz, and 30 VA.

Contact Information: Zanasi S.r.l. is headquartered in Sassuolo, Italy, with additional offices in the USA and China.

Catalog excerpts

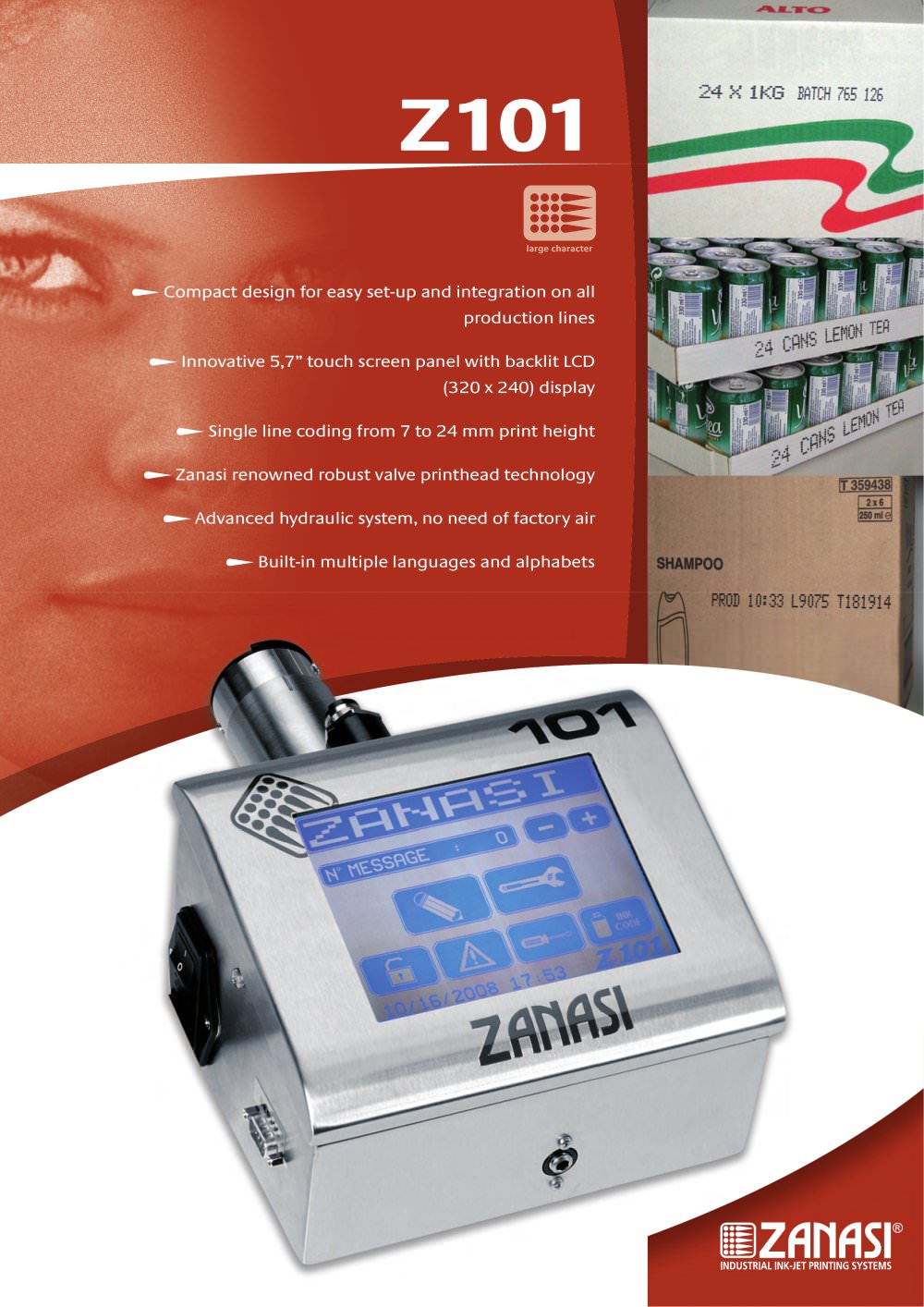

Compact design for easy set-up and integration on all production lines Innovative 5,7 touch screen panel with backlit LCD (320 x 240) display Single line coding from 7 to 24 mm print height Zanasi renowned robust valve printhead technology Advanced hydraulic system, no need of factory air Built-in multiple languages and alphabets >

Open the catalog to page 1

130mm5,2150mm5,9Ԕ Printing Features > 195mm7,7 Single line coding with 7dot printheadPrint height from 7 to 24 mm (0,28Ԕ 0,95֔)Line speed capability: up to 60 mt/min (197 ft/min)Printing rate: up to 56 ct/sec 100 messages storage 80 characters for each message Available Font: 5x5, 7x5 Bold factor: up to 5 timesBuilt-in multiple languages and alphabetsAutomatic calendar and expiration date print Incremental/Decreasing products counter up to 9 digitsRepeat - message functionPrinting in all moving directions 180 text rotationCoding throw distance up to 20 mm (0,8Д) > 150235mm5,9男9,3 24mm0,95Ԕ Control...

Open the catalog to page 2
