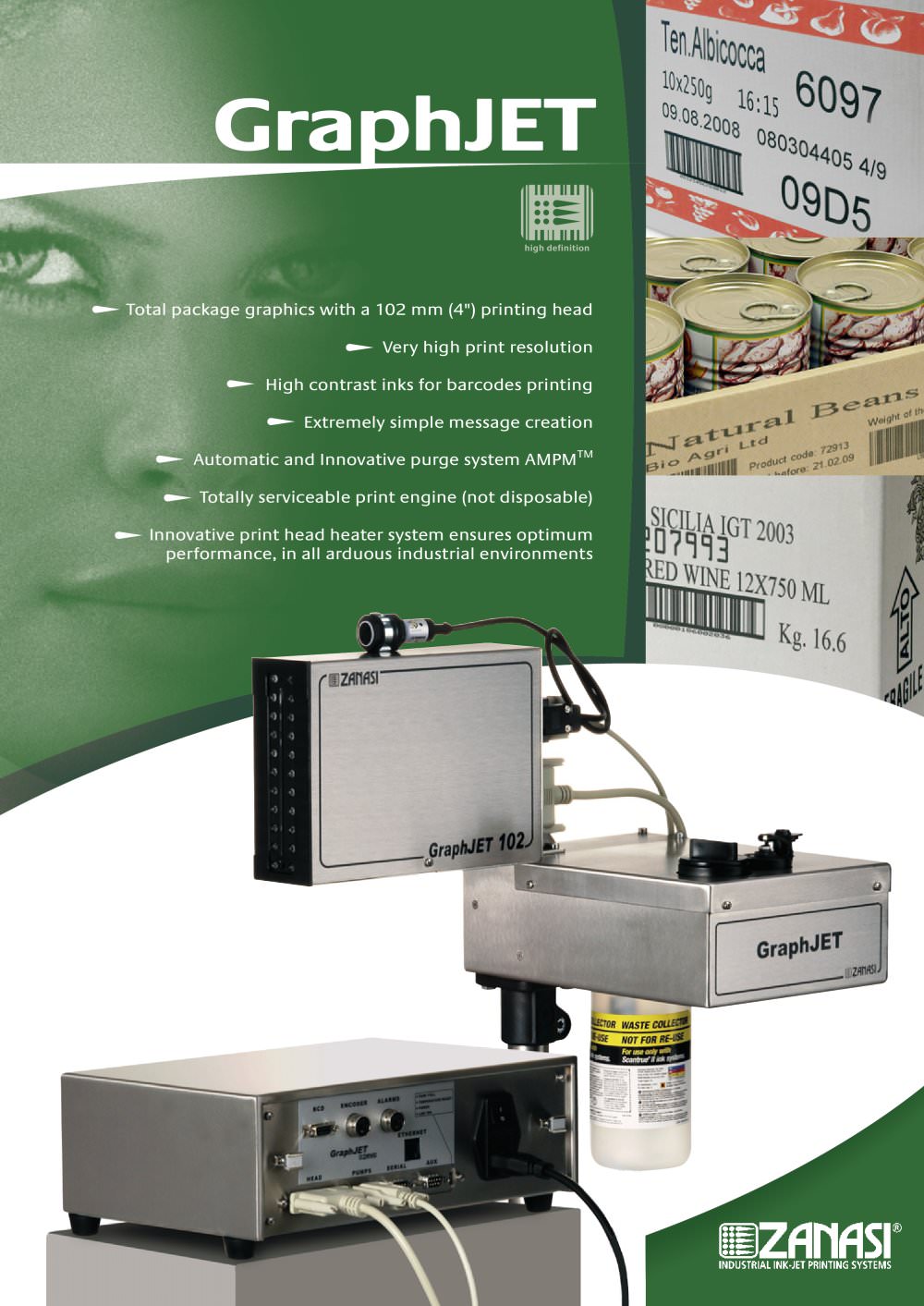

Overview: The document provides detailed specifications and features of the GraphJET high-definition printing system, designed for industrial environments. It highlights the system's capabilities, construction, and technical features.

Specifications: The GraphJET system supports a 102 mm (4") printing head with high print resolution and high contrast inks suitable for barcode printing. It offers simple message creation and an innovative purge system (AMPMTM). The print engine is serviceable, not disposable, and includes a print head heater system for optimal performance.

Printing Characteristics: The system can drive either a 102mm type (T768) or a 50mm type (T384) printing head. It supports up to 32 lines of print with the T768 head and up to 16 lines with the T384 head. Character heights range from 1.9 to 102mm for T768 and 1.9 to 50mm for T384. The line speed capability is up to 90 mt/min (295 ft/min), with storage for 99 messages and support for Windows True Type Fonts.

Construction Characteristics: The system features a stainless steel structure (AISI 304) with an IP54 rating. The printing head-console distance can be up to 5 meters (16.4 ft).

General Features: The GraphJET software facilitates easy message creation, with print parameters stored within each message. It includes a report function for executed printing counters, operator-selectable foreign language prompts, and automatic printing cost calculation.

Print Head: Utilizes piezoelectric technology with horizontal resolution up to 300 Dpi and vertical resolution up to 192 Dpi. The print head includes a stainless steel AISI 316 sole orifice plate and a serviceable, replaceable nozzle group. It uses pigmented, solvent-free inks and features a shock and vibration-proof system.

External Connections: The system includes serial ports (RS232, RS422 & RS485), an Ethernet interface for LAN connections, an optical sensor for product reading, and a parallel interface BCD. It also supports external alarm outputs and scanner connections for barcode validation.

Environmental/Electrical Requirements: Operates in temperatures from 5° to 45°C (40° - 113°F) and humidity levels from 0 - 90% (non-condensing). It requires a single-phase power supply of 220Vac 50Hz, 110Vac 60Hz, or 100VA.

Technical Features: Supports various barcodes including 2/5 Industrial, UPC-A, CODE 39, CODE 93, EAN 13 & EAN 8, EAN 128 (A,B,C), CODE 128 (A,B,C), 2D – Datamatrix, EAN UCC 128, and ITF (A,B,C).

Contact Information: The document provides contact details for Zanasi S.r.l. in Italy, Zanasi USA, and Zanasi (Guangzhou) Co. Ltd in China.
