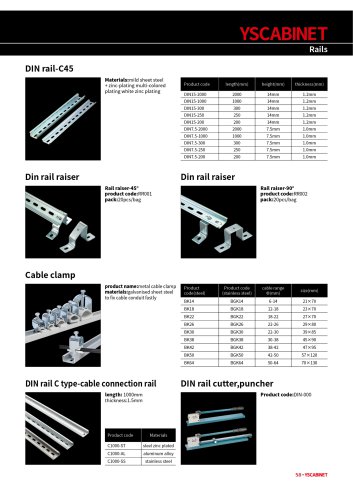

Rails
Product catalog summary
Specifications:
- Rails: DIN rail-C45 made from mild sheet steel with zinc-plating available in multi-colored and white zinc plating.
- Rail Raiser: Available in 45° (product code: RR001) and 90° (product code: RR002) angles, packed 20 pieces per bag.
- Cable Clamp: Metal cable clamp made from galvanized sheet steel for quick cable conduit fixation.
- DIN Rail C Type: Cable connection rail with a length of 1000mm and thickness of 1.5mm, available in steel zinc plated (C1000-ST), aluminum alloy (C1000-AL), and stainless steel (C1000-SS).
Product Dimensions:
- DIN Rails: Available in various lengths (2000mm, 1000mm, 300mm, 250mm, 200mm) with heights of 14mm and 7.5mm, and thicknesses of 1.2mm and 1.0mm respectively.
Cable Clamps:
- Available in different sizes with corresponding product codes for steel and stainless steel, accommodating cable ranges from 6-64mm.
Tools:
- DIN Rail Cutter and Puncher: Product code DIN-000.
See more
Catalog excerpts
Product code Cable clamp DIN rail C type-cable connection rail Product code
Open the catalog to page 1All YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD. catalogs and technical brochures
Aluminlum box 13 Pages

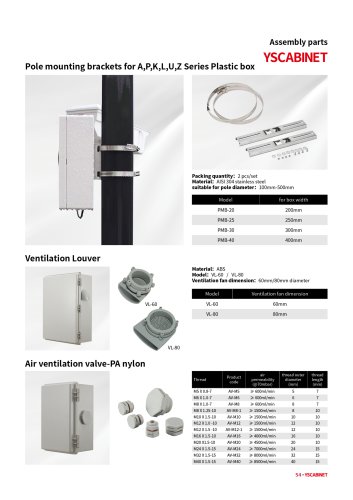

Pole mounting brackets1 Page

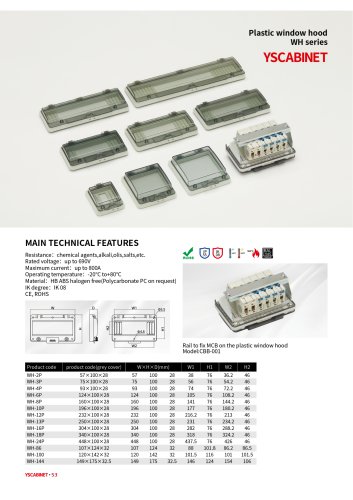

Plastic window hood1 Page

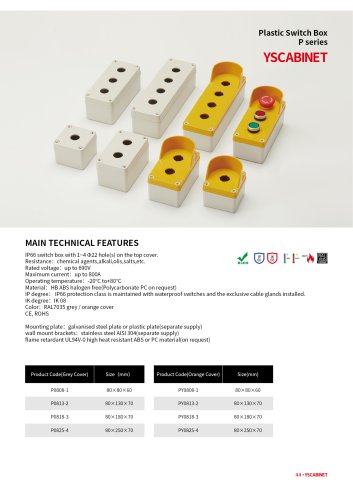

Plastic Switch Box1 Page

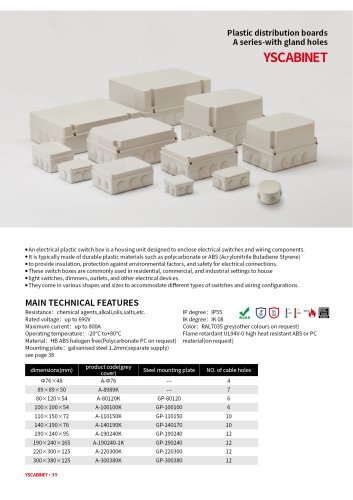

Plastic distribution boards2 Pages
Air ventilation glands1 Page

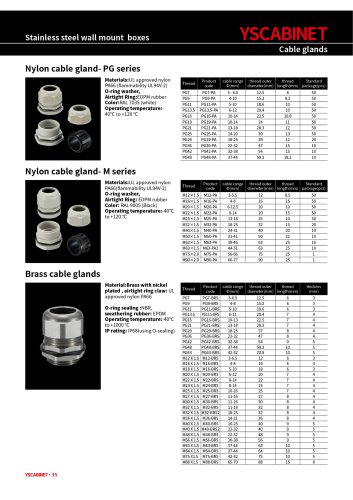

Cable glands1 Page

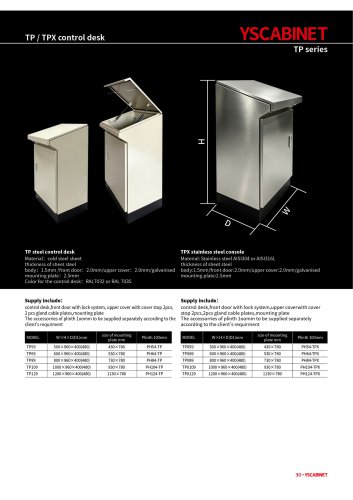

TP or TPX control desk1 Page

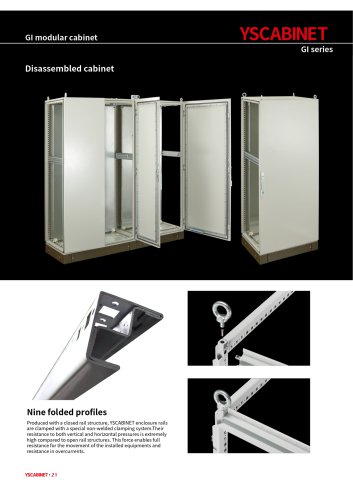

Disassembled cabinet9 Pages

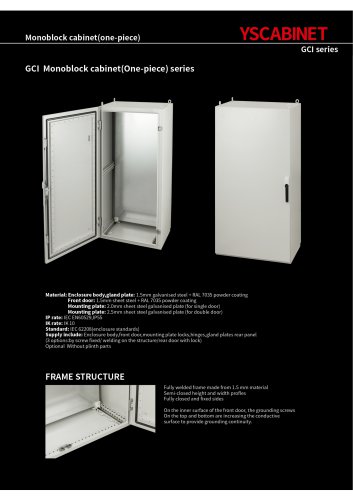

Monoblock cabinet(one-piece)2 Pages
Thermostat. Hygrostat1 Page
Fan. filter1 Page

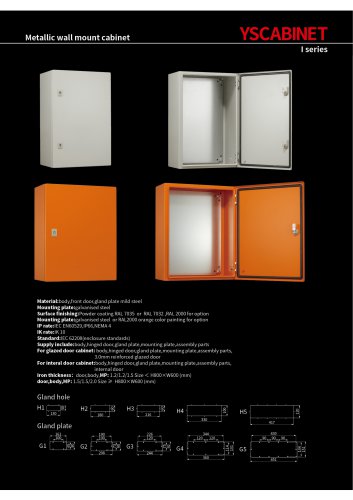

Metallic wall mount cabinet6 Pages

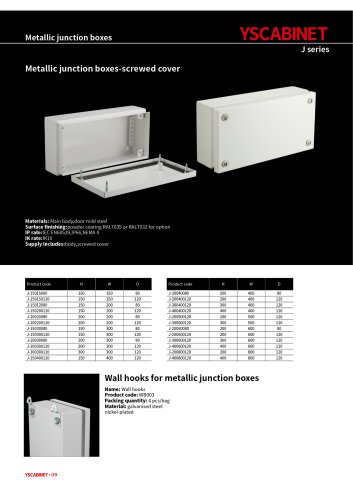

Metallic junction boxes2 Pages

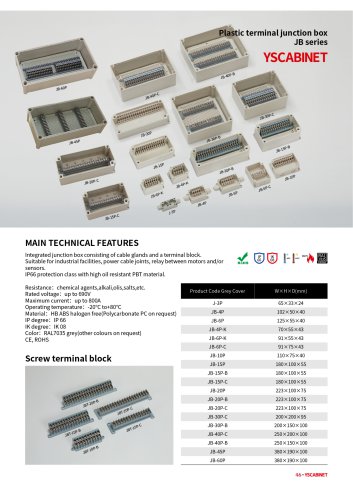

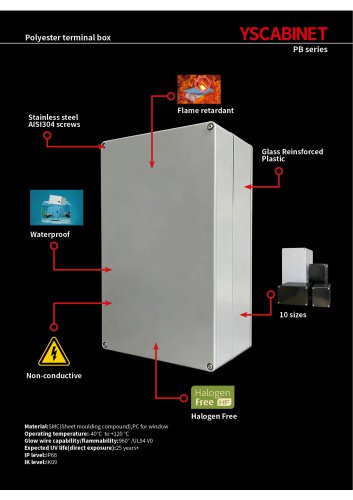

Polyester terminal box2 Pages

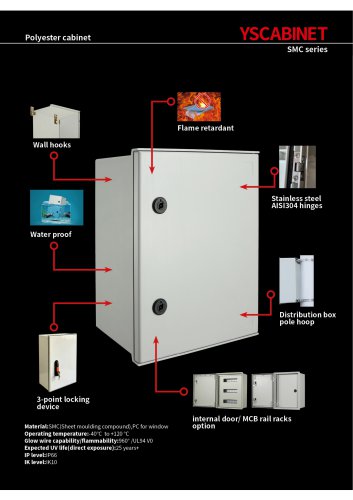

Wall-mount enclosure4 Pages
general product catalog49 Pages
Wall-mount enclosure1 Page
Archived catalogs

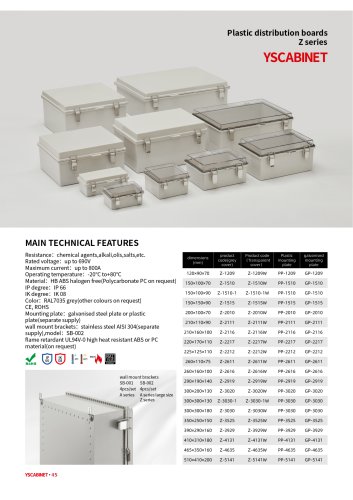

Z series1 Page
