YSI 7100
4Pages

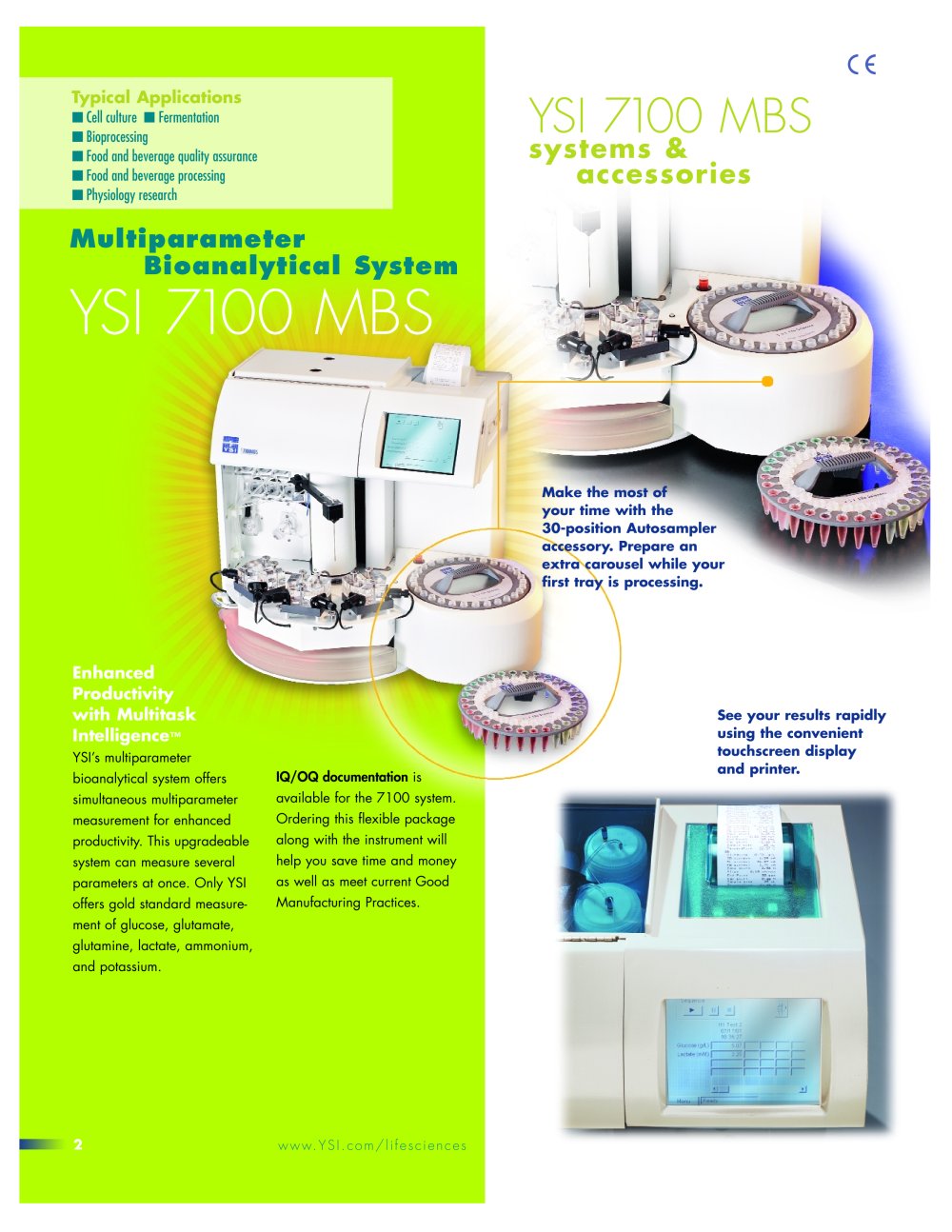

Typical Applications Cell culture Fermentation Bioprocessing Food and beverage quality assurance Food and beverage processing Physiology research Multiparameter Bioanalytical System YSI 7100 MBS Enhanced Productivity with Multitask Intelligence™ YSI’s multiparameter bioanalytical system offers simultaneous multiparameter measurement for enhanced productivity. This upgradeable system can measure several parameters at once. Only YSI offers gold standard measurement of glucose, glutamate, glutamine, lactate, ammonium, and potassium. IQ/OQ documentation is available for the 7100 system. Ordering this flexible package along with the instrument will help you save time and money as well as meet current Good Manufacturing Practices. www.YSI.com/lifesciences YSI 7100 MBS systems & accessories Make the most of your time with the 30-position Autosampler accessory. Prepare an extra carousel while your first tray is processing. See your results rapidly using the convenient touchscreen display and printer. 2

YSI Technology – Immobilized Enzyme Electrodes To measure a substrate of interest, one or more enzymes are immobilized between two membrane layers, polycarbonate and cellulose acetate. The substrate reacts with the enzyme(s), producing hydrogen peroxide, which passes through the cellulose acetate to an electrode with a platinum anode. Here the hydrogen peroxide is oxidized. The resulting current is proportional to the concentration of the substrate. YSI membranes contain three layers. The first layer, porous polycarbonate, limits the diffusion of the substrate into the second (enzyme)...

YSI’s newest multiparameter bioanalytical system can save you time and money. With YSI’s proven technology, you will achieve precise, accurate results. The 7100 unit is flexible and designed for easy upgrades and simple chemistry changes. Scroll through up to 50 displayed readings or choose one of 4 alternative data paths. Customize your 7100 system with three mix-and-match sensor modules—each containing two chemistry sensors. 4 www.YSI.com/lifesciences YSI 7100 MBS systems & accessories

[ 8 0 0 . 6 5 9 . 8 8 9 5 ] 5 YSI Technology – Fluid Management Technology The YSI 7100 MBS uses sensors combined with Multitask Intelligence software to monitor calibration solutions, buffer flush solutions, and sample aspirations. Calibration standard and buffer solution labels are bar-coded for easy entry of information into fluid management software. Shelf life and working life information are continually monitored during operation; messages alert the user when reagents require attention. In addition, fluid levels are monitored. The 7100 automatically searches for reagent bottle status...
