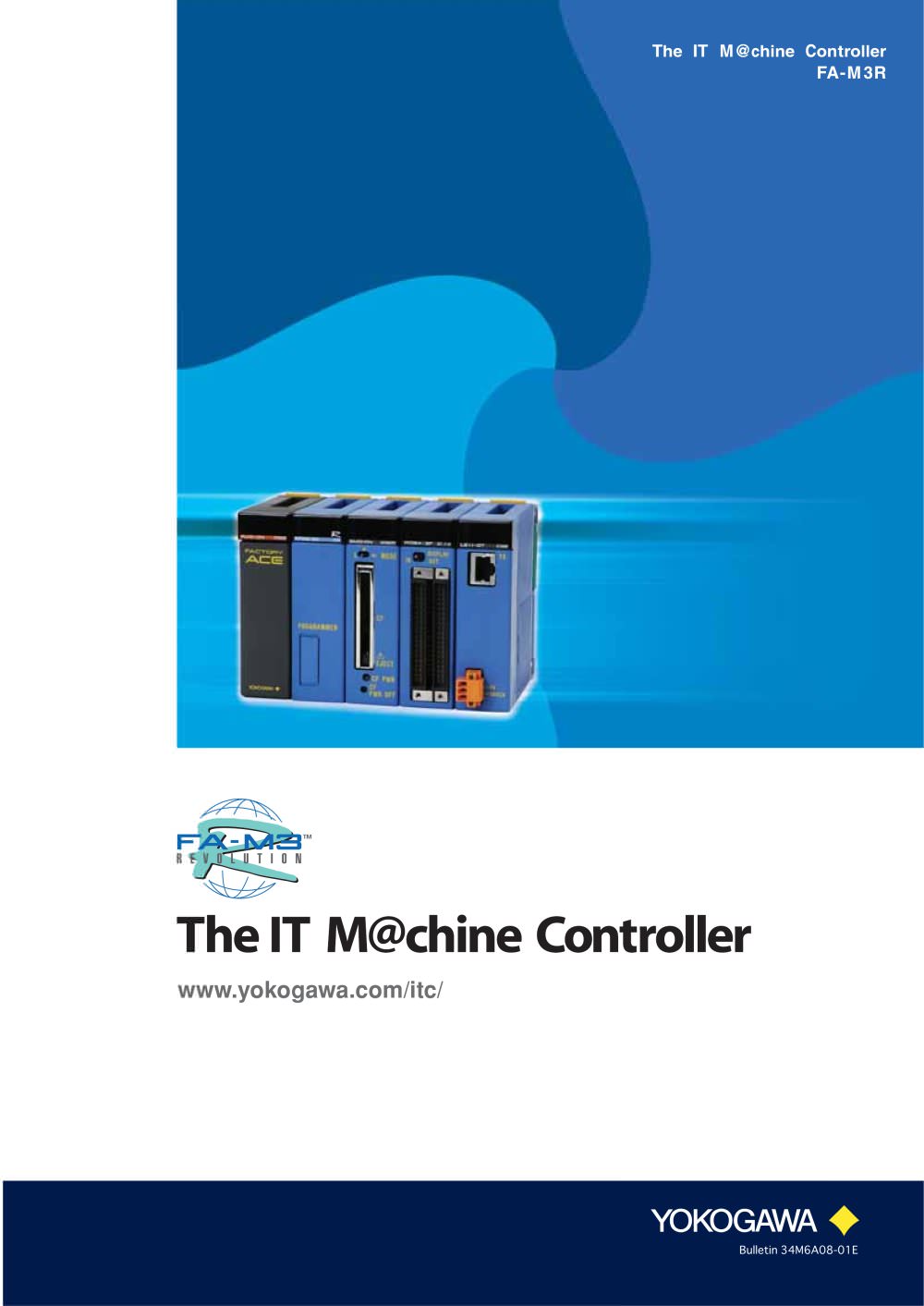

FA-M3 Range-free Multi-controller

FA-M3 Range-free Multi-controller
28Pages

Catalog excerpts

Fast 20,000 steps within 1ms FA-M3R features a minimum scan time of 200ìs, and is faster than microcomputer boards. Post Card Size Truly compact and light, FA-M3R takes up a space of only 147(W) X 100(H) X 88(D) mm, yet allows up to 192 points. Compact

Open the catalog to page 2

FA-M3R features a minimum scan time of 200..s, and is faster than microcomputer boards. Truly compact and light, FA-M3R takes up a space of only 147(W)X100(H)X88(D)mm, yet allows up to 192 points. FA-M3R is the result of a quest for high performance and advanced functions. It offers high cost performance, too. Smart Max. 8192 Points,344K Words FA-M3R is the result of a quest for high performance and advanced functions. It offers high cost performance, too. _02 Introduction _04 Range Free _06 Let's Network! Integrate Control & Communications! _08 Remote OME on Internet _12 Program Reuse _14...

Open the catalog to page 3

4 Simply Combine Modules to Suit Your Applications! Power supply module High-speed counter module High-speed data acquisition module Memory CPU module card module Positioning modules FL-net interface module PROFIBUS-DP interface module ASi master module DeviceNet interface module GP-IB communications module RS-232-C communications module Ethernet interface module Power supply module 64-point input module 8-point relay output module 16-point input module CPU module 64-point output module Personal computer link module Analog input output module FA link H module Fiber-optic FA bus module...

Open the catalog to page 4

5 The FA-M3R accommodates up to four sequence CPU modules. This feature is convenient when improving operating ratios of selected system components, integrating basic program data with data of other programs, dividing processing control, or selecting CPUs according to system scale or program size. What's more, you can freely intermix sequence CPU modules and other types of CPU modules. Main Unit and Sub-Unit The FA-M3R offers a variety of CPU modules, including sequence and BASIC modules. This capability to intermix different CPU module types in a single unit enhances the existing PLC...

Open the catalog to page 5

6 Built-in SD Memory Card Slot and RAM Disk Up to 1 GB SD memory cards are supported for storing data, programs and log records as files. Off-the-shelf SD memory cards can be used. Redundancy of the file control area (FAT) reduces risk of file system damage due to power outage or card removal during writing. 4 MB RAM disk included for storing data and log records as files. (volatile memory) FTP Client and Server Functions Data is transferred from CPU to host PC or server autonomously with no need for programming on the host PC or server. (client function) Data can be transferred from CPU to...

Open the catalog to page 6

9 The ODVA (Open DeviceNet Vendor Association, Inc.) is a nonprofit organization established by equipment vendors with the primary objective of maintaining and promoting the DeviceNet specifications. It has more than 240 members, including Yokogawa Electric Corporation. Build a multi-vendor system with ease No. of systems Transmission rate/medium Transmission protocol No. of nodes Connectors Communications method Cyclic transmission Messaging 2* 10Mbps/IEEE 802.3 compliant UDP/IP 254 max. AUI,10BASE-T Token without master Item Specifications 9.6kbps 19.2kbps 1200m 93.75kbps 187.5kbps 1000m...

Open the catalog to page 9

10 16 DC inputs (positive common), 24 V DC, MIL 16 TR outputs (sink-type, with short-circuit protection), 24 V DC 0.1 A, MIL 16 DC inputs (negative common), 24 V DC, MIL 16 TR outputs (source-type, with short-circuit protection), 24 V DC 0.1 A, MIL 16 DC inputs (positive common), 24 V DC, MIL 16 DC inputs (negative common), 24 V DC, MIL 16 TR outputs (sink-type, with short-circuit protection), 24 V DC 0.1 A, MIL 16 TR outputs (source-type, with short-circuit protection), 24 V DC 0.1 A, MIL High-speed remote I/O providing flexibility for development, production and maintenance Features YHLS’...

Open the catalog to page 10

11 Optimal solution for automation of inspection system. GP-IB Communications Module F3GB01-0N Performs both measurement and control within a compact body. Delivers a high-speed inspection system. Enables simple, high-speed communications with GP-IB devices. Enables system configuration using only the BASIC language. Enables communications with GP-IB devices using only ladder sequences. F3LC11-1F / F3LC12-1F / F3LC11-2F Personal Computer Link Module Ideal for connecting to PCs or displays This communications module implements PC link functions to a display or an upper-level computer, such...

Open the catalog to page 11

13 Easy data exchange with Windows applications Better use of design assets WideField2 provides OLE support and other functions that allow you to tap the convenience of the Windows environment. For instance, device and comment data can be copied from MS Excel and pasted into WideField2. Similarly, circuits can be copied from WideField2 into Microsoft word for preparation of design documents. Moreover, comment data can be imported from or exported to standard CSV-format files, allowing efficient organization of translation and design data. When a user is entering devices, this function...

Open the catalog to page 13

15 SF661-ECW Toolbox for Temperature Control and Monitoring Module Easy Setup of Operation Parameters This software is a parameter setup tool for use with the FA-M3R Temperature Control and PID Modules and the Temperature Monitoring Module. It supports a range of functions from initial setup to action testing, and simplifies the tedious tuning process by enabling graphical display of monitored values. User-friendly setup screens On-line help information on module parameters simplifies parameter setup. Setup screens can be customized with the required parameters displayed in the appropriate...

Open the catalog to page 15

16 Relentless Pursuit of Higher Speed and Richer Functionality Drastically Reduced Tact Time Versatile positioning control can be implemented using efficient setup tool F3NC32-0N / F3NC34-0N Positioning Module (model with Pulse Output) For fast, accurate, high-resolution and versatile position control This positioning module is amply powered to control high-speed, high-accuracy and highresolution position-command type servo-motors/drivers, and stepping motors/drivers. Its rich set of positioning control functions enables a much shorter tact time, coupled with higher productivity and product...

Open the catalog to page 16
