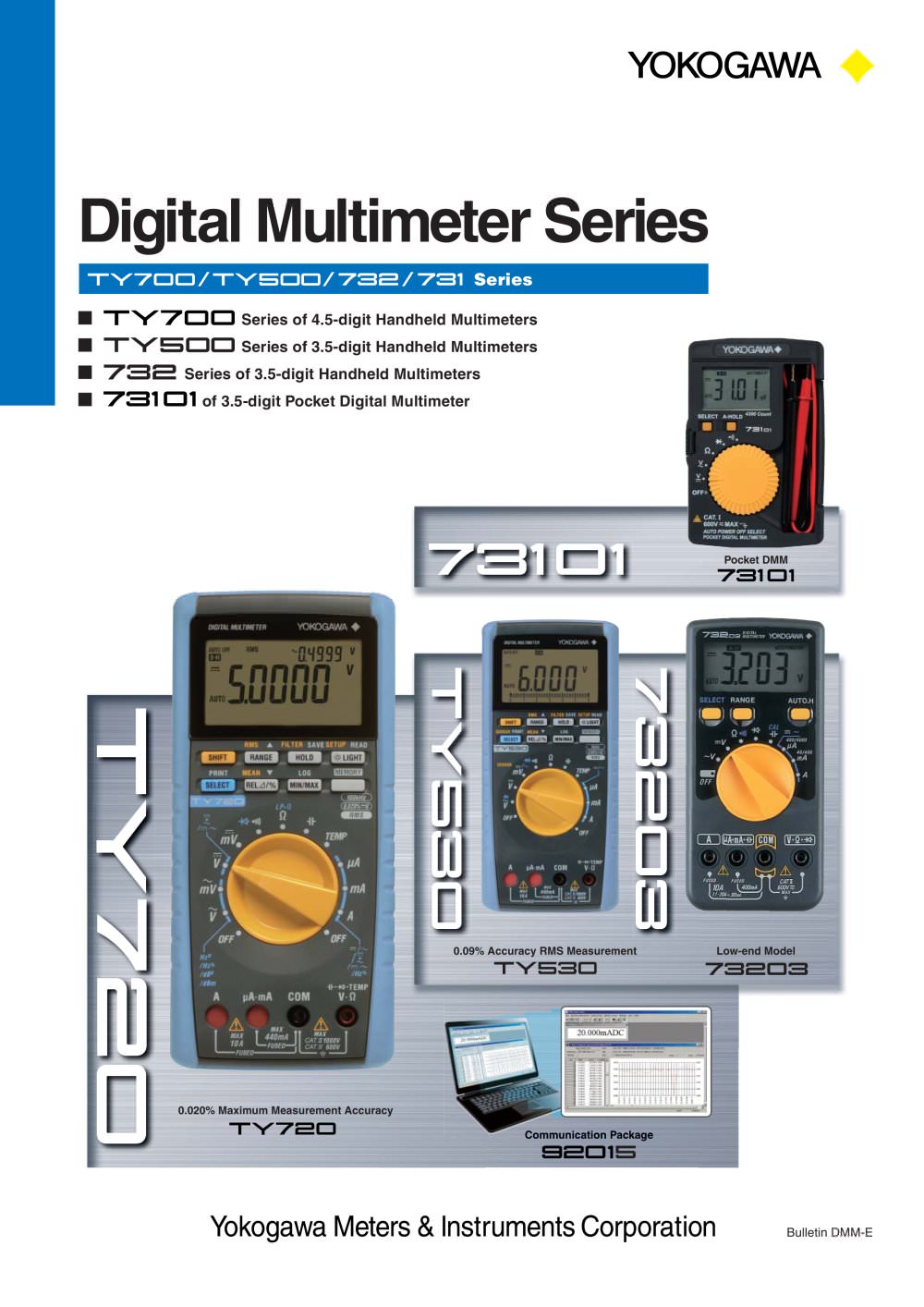

Digital Multimeter Series Series Pocket DMM Series of 4.5-digit Handheld Multimeters Series of 3.5-digit Handheld Multimeters Series of 3.5-digit Handheld Multimeters of 3.5-digit Pocket Digital Multimeter Bulletin DMM-E 0.020% Maximum Measurement Accuracy 0.09% Accuracy RMS Measurement Low-end Model

Open the catalog to page 1

1 Glossary Integral Action Time Measurement Accuracy Root Mean Square Value Mean Value Form Factor Frequency Characteristic Input Impedance Decibel CE Mark Electromagnetic Compatibility (EMC) Safety Standards Crest Factor Peak-to-Peak (P-P) value Measurement categories (CAT) In order to ensure the safety of the user, IEC 60664 defines the ranges of use of measuring instruments by classifying power levels into measurement categories I through IV. This is because the excessive impulse or surge levels induced in a power line vary depending on the location of measurement (category). Categories...

Open the catalog to page 2

2 Digital Multimeter Selection Guide External View Model Type Max. Value Dual Bar Graph Back-lit AC RMS Voltage AC + DC Current AC + DC A Resistance Continuity Check Diode Test Frequency Temperature Capacitance Communication Data Memory Max./Min. Value Memory Relative Value Computation Logarithm Computation Data Hold Auto Hold Peak Hold Overvoltage Input Warning PC Connection Auto Power Off TY710 TY720 TY520 TY530 73201 73202 73203 73204 73101 50000 4300 6000 4300 Handheld Pocket-sized Display Measurement Items Additional Functions : Also functions as excessive current input warning.

Open the catalog to page 3

3 Maximum Measurement Accuracy Closed Case Calibration 0.020% rdg + 2 dgt (DC voltage) True RMS measurement In addition to the above, the sub-display can display the reference value for differential calculation, memory storage numbers for measured data, minimum/maximum/average value recording times, and standard resistance during decibel calculation. Loaded with Measurement Functions Duty ratio (%) measurement AC+DC measurement Measures RMS of a waveform in which ripple waveforms are superimposed on a direct current. Supports waveforms of 1 ms or greater. You can capture instantaneous crest...

Open the catalog to page 4

4 TY700 General Specifications Performance Model and Specification Code Measurement Functions :DC voltage, AC voltage, DCV+ACV, DC current, AC current, DCA+ACA, resistance, frequency, temperature, capacitance, duty cycle, decibel calculation, continuity check, diode test, low-power resistance (TY720 only) For AC voltage/current, RMS/MEAN detection can be switched (TY720 only). For AC voltage/current, the low-pass filter can be turned on/off (TY720 only). Additional Functions :Data hold/auto hold/peak hold (TY720 only), range hold, maximum/minimum/average values resistance, capacitance zero,...

Open the catalog to page 5

5 Series Safe design and supports various maintenance applications. TY530 TY520 Model 3.5 digits 6000 count USB (TY530) Terminal shutters 0.09% (DCV) RMS Sensorr LPF Maximum Reliability and Safety Closed Case Calibration ¡ Reliability High accuracy and safety Accuracy: 0.09% rdg + 2 dgt (DC voltage) True RMS measurement Only TY530 can switch RMS and mean detection. ¡ Safe Design Conforms to EN61010-1 safety standard. Shutters prevent erroneous insertion of test leads into current measurement terminals (terminal shutters). Conforms to overvoltage category 1000 V AC/DC, CAT ‡V and 600 V...

Open the catalog to page 6

6 TY500 General Specifications Performance Model and Specification Code Name Model TY520 Digital Multimeter TY5 30 Optional Accessories Test conditions: Temperature and humidity = 23 ± 5°C, 80% RH or less; Accuracy = ± (% rdg + dgt). Note: A response time is the time required for achieving the accuracy specified for the corresponding range. Measurement Functions :DC Voltage, AC voltage, DC current, AC current, resistance, frequency, temperature, capacitance, continuity check, diode test For AC voltage/current, RMS/MEAN detection can be switched (TY530 only). Low-pass filter can be switched...

Open the catalog to page 7

7 Communication Functions and Application Software Allow Analyses and Management of Measurement Data Data management by dedicated application software L001 N,+0.9998 VDC L002 N,+0.9997 VDC L003 N,+0.9998 VDC L004 N,+0.9999 VDC L005 N,+0.9999 VDC L006 N,+0.9998 VDC L007 N,+0.9998 VDC L008 N,+0.9998 VDC L009 N,+0.9998 VDC L010 N,+0.9999 VDC L011 N,+0.9998 VDC L012 N,+0.9998 VDC L013 N,+0.9998 VDC L014 N,+1.0000 VDC L015 N,+0.9999 VDC L016 N,+1.0000 VDC L017 N,+1.0000 VDC L018 N,+1.0002 VDC L019 N,+1.0002 VDC L020 N,+1.0001 VDC Data management by dedicated printer Optional Accessories*...

Open the catalog to page 8

8 Low-cost Handheld DMM • DC Voltage Measurement ( V) Range 400.0 mV 4.000 V 40.00 V 400.0 V 600 V Response time: 1.5 seconds or less for 400 mV range, 1 seconds or less for all other ranges Input Resistance Maximum Input Voltage Accuracy 0.5% + 1 0.75% + 1 0.5% + 1 >100 MÙ 11 MÙ 10 MÙ 0.3% + 1 600 V 73201 73202/04 73203 • AC Voltage Measurement (~V) Range 4.000 V 40.00 V 400.0 V 600 V Response time: 2 seconds or less Input Resistance Accuracy 1% + 5 0.75% + 5 >11 MÙ, <50 pF >10 MÙ, <50 pF 600 Vrms Maximum Input 73201 73202 73203/04 Voltage • DC Current Measurement ( A) Range 73203 Voltage...

Open the catalog to page 9

9 Pocket DMM with Superb Portability 73101 Model General Specifications 73101 Auto hold Digital display: 4300-count digital reading Digital display: Approx. 2 times/sec 0 to 50°C; 80% RH or less (no condensation) -10°C to 60°C, 70 RH or less (no condensation) Two LR44 dry cell Approx. 200 hours (for continuous DC voltage measurement) The power is automatically turned off when no operation is made for approx. 20 minutes (can be disabled). 76 (W) x 117 (H) x 18 (D) mm Approx. 110 g (including batteries) Safety EN61010-1 (600 V, CAT I; 300 V, CAT II; contamination level 2) EMC EN61326...

Open the catalog to page 10

10 Optional Accessories and Spare Parts Name Model Specifi cation Applicable DMM Models Appearance DMM communication package 92015 USB communication adapter + USB communication cable + Application software TY700 series TY530 Communication package for printer 97016 Printer adapter + Printer cable TY700 series TY530 Printer 97010 Thermal printer (paper width 112mm) TY700 series TY530 AC adapter for printer 94005 AC 100V ±10% 94006 (For Europe) 230V AC ±10% 94007 (For USA) 120V AC ±10% Thermal printing paper 97080 10 rolls (1set) Test leads 98015 1000V CAT.III 600V CAT.IV Red/black (1set) All...

Open the catalog to page 11
