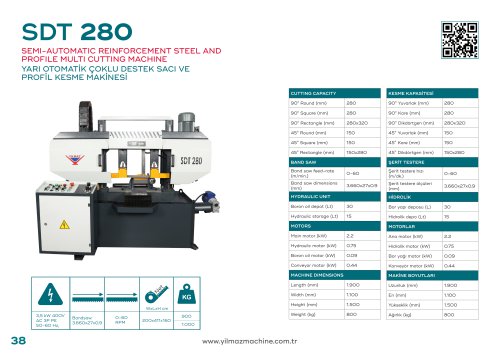

SDT 280

1 / 2 PagesView full catalog

SDT 280

Product catalog summary

Specifications:

Machine Type: Semi-Automatic Reinforcement Steel and Profile Multi Cutting Machine (SDT 280)
Power: 3.5 kW, 400V AC, 3P PE, 50-60 Hz
Cutting Capacity:
- 90° Round/Square: 280 mm
- 90° Rectangle: 280x320 mm
- 45° Round/Square: 150 mm
- 45° Rectangle: 150x280 mm
Band Saw:
- Feed-rate: 0-60 m/min
- Dimensions: 3.660x27x0.9 mm
Hydraulic Unit:
- Boron Oil Depot: 30 Lt
- Hydraulic Storage: 15 Lt
Motors:
- Main Motor: 2.2 kW
- Hydraulic Motor: 0.75 kW
- Boron Oil Motor: 0.09 kW
- Conveyor Motor: 0.44 kW
Machine Dimensions:
- Length: 1,900 mm
- Width: 1,100 mm
- Height: 1,500 mm
- Weight: 800 kg

General Features:

Hydraulic top clamping unit for holding bundled materials
Hydraulically operated band saw tension mechanism
Adjustable micro spray cooling units
Hydraulic movement of band saw frame
Speed control unit for band saw speed adjustment
Speed control valve for downward speed adjustment
High accuracy with hard steel and chrome-coated band saw frame
Chip brush for cleaning during operation
Automatic switch-off and hydraulic lifting of band saw frame post-cut
Compact and rugged construction

Standard Accessories:

Chip conveyor for removing cutting chips
3-meter infeed roller table
2° inclined bimetal band saw fitted on the machine bow

Catalog excerpts

SEMI-AUTOMATIC REINFORCEMENT STEEL AND PROFILE MULTI CUTTING MACHINE YARI OTOMATiK QOKLU DESTEK SACI VE PROFiL KESME MAKiNESi CUTTING CAPACITY KESME KAPASiTESi

Open the catalog to page 1

Reinforcement Sheet Band Saw Machines Destek Saci §erit Testere Kesim Makineleri GENERAL FEATURES • Hydraulic top clamping unit holding the bundled materials firmly • Hydraulically operated band saw tension mechanism • 2x adjustable micro spray cooling units • Band saw frame that can move up and down hydraulicly • Speed control unit that adjust the band saw speed according to the material • Speed control valve that adjusts the band saw downward speed according to the material • Band saw frame made of hard steel and chrome coated and grinded two pillars providing a high degree of accuracy • Chip...

Open the catalog to page 2
