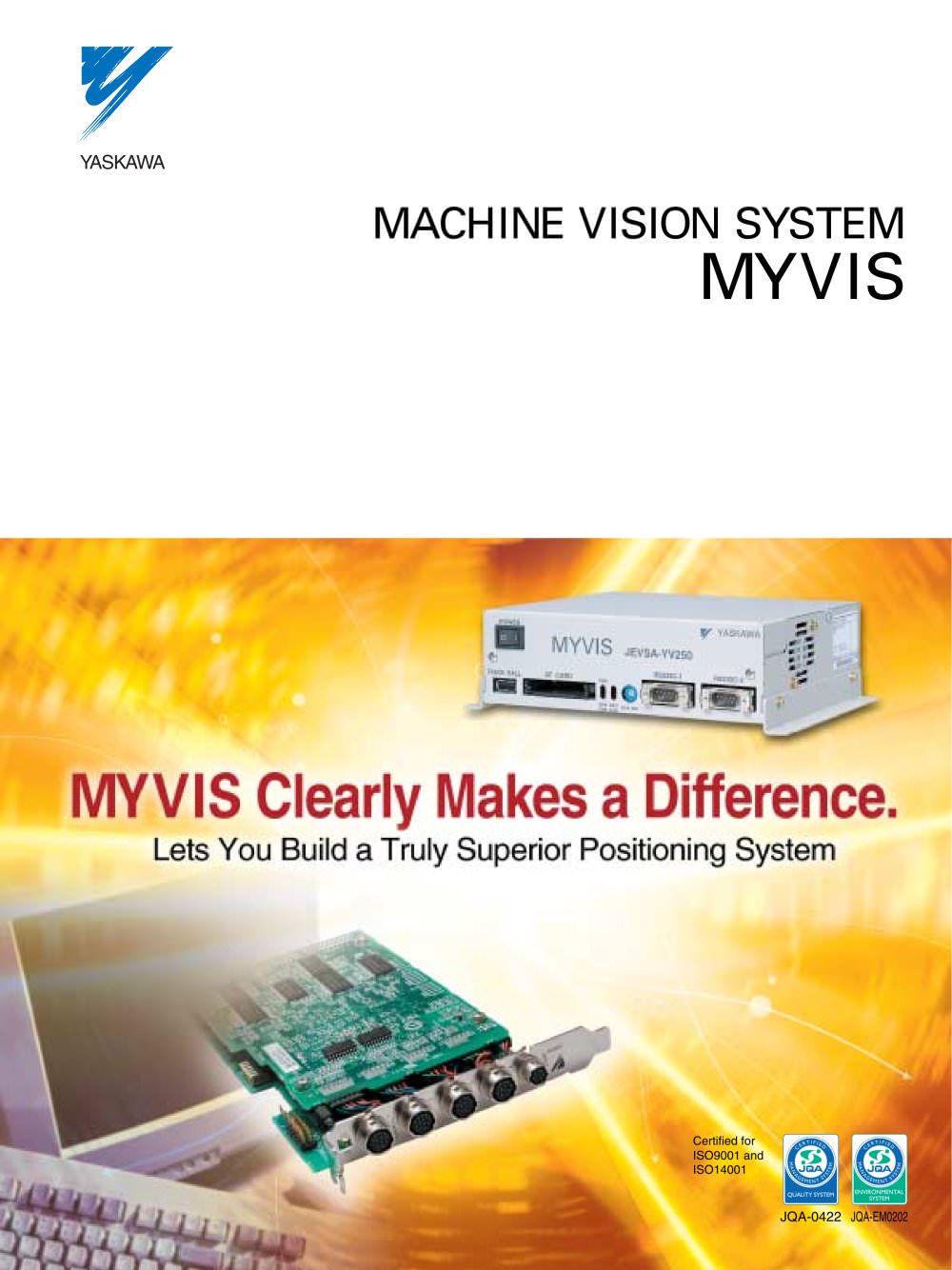

MACHINE VISION SYSTEM MYVIS YV250

Product catalog summary

Overview: The Yaskawa MYVIS Machine Vision System is engineered for high-speed, high-precision image processing, adhering to ISO9001 and ISO14001 standards. It features advanced hardware processing, instant alignment capabilities, and supports sophisticated image analysis techniques such as gray scale pattern matching and subpixel detection.

Specifications: The system can simultaneously capture images from two cameras and supports various camera types, including double-speed scan and full-frame shutter cameras. It can store up to 48 images in memory, facilitating the management of non-conforming images and raw image storage. An input image lookup table is included for brightness conversion or black/white reversal during capture.

Hardware and Compatibility: Available in PCI-bus and standalone types, the MYVIS system is compatible with multiple monitors and supports up to 16 cameras connected to a personal computer. It includes features like image freeze display and various monitor display modes.

Image Processing Features: The system offers high-speed, high-precision processing with capabilities such as ambiguous mark detection and positioning mark detection of any shape. It includes built-in hardware for special camera use and supports various monitor display modes.

Application Examples: Examples include non-stop alignment for substrate chip mounters and four-image alignment for large FPD substrates, demonstrating the system's high-precision subpixel detection and integration with motion controllers for precise corrections.

Performance and Efficiency: Designed for high-speed processing, the MYVIS system significantly reduces image capture and processing times, supporting simultaneous captures from multiple cameras to enhance speed and efficiency.

Machine Controllers: Compatible with MP2000 series machine controllers, the system offers high-speed multi-axis control and synchronization, improving machine precision and operability.

MPE720 Engineering Tool: The document outlines the MPE720 tool's capabilities in efficiently creating and editing ladder programs, with improvements in system settings and program management to enhance design and maintenance efficiency.

Transmission and Communication: Details on transmission timing for machine controllers and MYVIS systems are provided, highlighting a 0.5 ms transmission cycle and the high-speed CPU in the MP2000 series for high-accuracy motion control.

Yaskawa Alignment Systems: Yaskawa's linear servomotors offer high-speed, high-accuracy positioning with minimal maintenance, featuring direct feedback of position data.

System Configuration: The standalone MYVIS system with MECHATROLINK- communications allows real-time data reception from connected servomotors for accurate machine positioning.

Program Development: Program development environments for standalone and PCI-bus type MYVIS systems are described, including the use of C language and Windows programming languages, with a list of available functions and APIs for image processing.

Specifications: Detailed specifications for various MYVIS models are provided, covering power supply requirements, camera interfaces, image processing capabilities, and environmental conditions.

Product List and Accessories: A list of MYVIS models and accessories, such as power cables and communication software, is included with descriptions and requirements.

Contact Information: Contact details for Yaskawa Electric Corporation and its global offices are provided for further inquiries and support.
