Yageo
Thin Film Chip Resistors

Thin Film Chip Resistors

Product catalog summary

Overview: The YAGEO Corporation's RT Series Thin Film Chip Resistors are designed for high stability and accuracy, featuring low temperature coefficient of resistance (TCR) and low noise. They are constructed with an alumina substrate and a NiCr resistor, with internal and external electrodes for enhanced performance.

Features: The resistors offer high stability, low TCR, and high accuracy with tolerances of ±0.1% and ±0.5%. They are built with an overcoat, internal Ag-Pd electrodes, and external solder and nickel-plated electrodes.

Dimensions: The RT Series includes various styles such as RT0201, RT0402, RT0603, RT0805, RT1206, RT1210, RT2010, and RT2512, each with specific dimensions in millimeters for length (L), width (W), height (H), and electrode spacing (I1, I2).

Electrical Characteristics: The resistors cover a wide resistance range from 1Ω to 2MΩ, depending on the style. They support different operating modes (Precision, Standard, Power) with power ratings at 70°C ranging from 1/64W to 1W. The operation temperature range varies by type, with precision types operating from -10°C to +85°C, standard types from -55°C to +125°C, and power types from -55°C to +155°C. Maximum working and overload voltages are specified for each style, with dielectric withstand voltages up to 400V.

Environmental Characteristics: The resistors are tested for temperature coefficient, thermal shock, low temperature operation, short time overload, insulation resistance, dielectric withstand voltage, resistance to soldering heat, moisture resistance, life, solderability, and bending strength. These tests follow standards such as MIL-STD-202F and JIS-C-5202, ensuring reliability and performance under various conditions.

Conclusion: The YAGEO RT Series Thin Film Chip Resistors are suitable for applications requiring high precision and stability, with customizable options for resistance tolerance and temperature coefficient. They are designed to withstand rigorous environmental conditions, making them ideal for a wide range of electronic applications.

Catalog excerpts

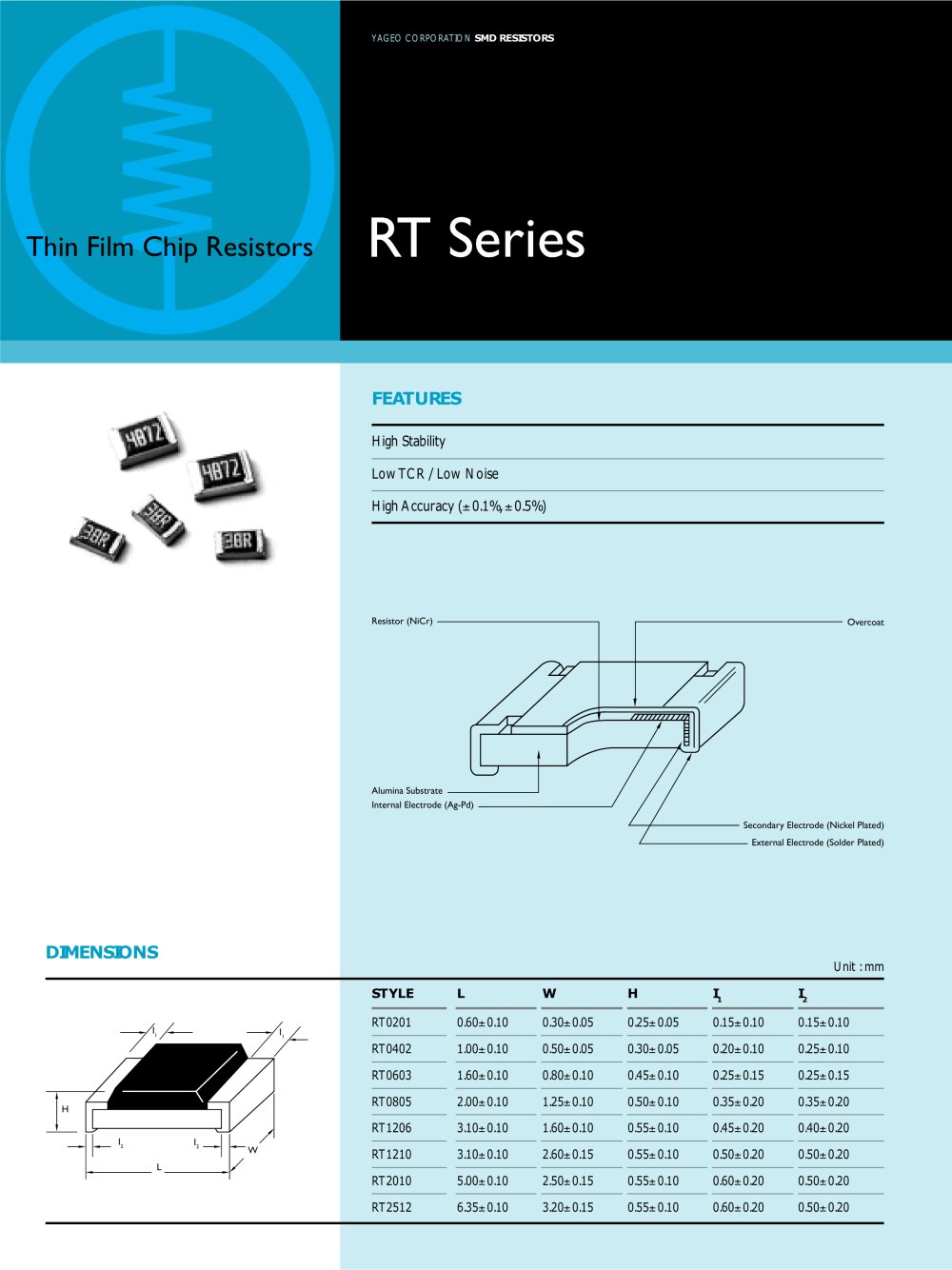

YAGEO CORPORATION SMD RESISTORS Overcoat Internal Electrode (Ag-Pd)Alumina Substrate Resistor (NiCr) External Electrode (Solder Plated)Secondary Electrode (Nickel Plated)

Open the catalog to page 1

STYLERT0201RT0402RT0603RT0805 Resistance Range in E24/E9610 ~ 30K 10 ~ 121K 3 ~ 681K 3 ~ 1.5M (E192; Special Value on Request)(<10 ; 30 ~ 56K on Request)(<10 ; 121 ~ 220K on Request)(<3 ; 681 ~ 750K on Request)(<3 ; 1.5 ~ 2M on Request) Operating ModePrecisionStandardPowerPrecisionStandardPowerPrecisionStandardPower *PrecisionStandardPower * Power Rating @ 70 C1/64W1/20W1/16W1/64W1/16W1/10W1/32W1/10W1/8W1/20W1/8W1/5W Operation Temperature Range-10 а C to +85 C for Precision Type; -55 а C to +125 C for Standard; -55 а C to +155 C for Power Type Maximum Working Voltage5V15V15V12.5V50V50V25V75V75V35V150V150V...

Open the catalog to page 2
