Product Selection Guide 2011

Product Selection Guide 2011

Product catalog summary

Product Selection Guide Overview:
This document serves as a comprehensive guide for selecting various electronic components such as SMD resistors, MLCCs, SMD ceramic EMI filter capacitors, and multilayer chip varistors offered by Yageo Corporation. It includes detailed specifications, ordering information, and case size codes.

Ordering and Part Numbering:
Components can be ordered using a clear text or a 12-digit ordering code. The guide provides logistic and packing information, with minimum shipment quantities and pricing details available through Yageo's sales organization or franchised distributors.

Case Size Codes:
Inch-based codes are used for component sizes, with metric-based codes having the suffix 'M'. A table cross-references inch-based and metric case sizes.

Chip Resistors:
The guide covers various types of chip resistors, including thick film, thin film, low ohmic, high precision, and automotive grade resistors, detailing specifications such as power rating, maximum voltage, operating temperature range, resistance range, tolerance, and T.C.R.

MLCCs (Multilayer Ceramic Capacitors):
MLCCs are categorized by dielectric types such as NP0, X7R, X5R, and Y5V, with specifications for general purpose, medium voltage, high voltage, and high frequency applications.

X2Y® EMI Filter Capacitors:
Selection charts and ordering information for SMD ceramic EMI filter capacitors in the X2Y® series are provided.

High Frequency Products:
Includes patch antennas, chip antennas, band pass filters, low pass filters, diplexers, baluns, and balanced filters, with selection charts and specifications.

Multilayer Chip Varistors (MLV):
Specifications and selection charts for MLVs are provided, detailing case dimensions and ordering information.

Contact Information:
Yageo Corporation offers a global presence with production and sales facilities worldwide. Contact details for sales offices and distributors are available on the back cover of the catalogue and on the Yageo website.

Specifications:

Series Codes: Different series codes identify resistor types, such as RC for thick film general purpose, RE for thick film precision grade, and RT for thin film high precision.
Resistance Values: Specified in ohms (Ω), ranging from 0.01Ω to 100MΩ.
Size Codes: Available in various sizes, indicated by codes such as 0100 (0.4 x 0.2 mm) and 2512 (6.35 x 3.2 mm).
Tolerance: Ranges from ±0.05% to ±30%.
T.C.R.: Specified in ppm/°C, with options ranging from ±10 ppm/°C to ±2000 ppm/°C.

Procedures:

Ordering Information: Outlines the global part number system for ordering resistors, including series name, size code, resistance value, tolerance, and packaging style.
Packing Styles: Available in various styles, such as paper tape reel, embossed plastic tape reel, and ESD safe reel.

Standards and Norms:

RoHS Compliance: All RSMD products are RoHS compliant.
IEC Publication 63: References standard values in a decade according to IEC publication 63.

Recommendations:

Application Suitability: Guidance on selecting the appropriate resistor type based on application requirements.
Environmental Characteristics: Performance tests include life, high temperature exposure, moisture resistance, and thermal shock.

Key Data from Tables and Charts:

Derating Curve: Shows maximum dissipation as a function of operating ambient temperature.
Dimensions: Detailed dimensions for each resistor type.
Packing Quantities: Lists packing quantities for different size codes and tape widths.

MLCC Engineering Design Kits:

High Capacitance Kits: Available in X5R, X7R, and Y5V dielectrics.
High Voltage Kits: Include NP0 and X7R dielectrics with voltage ratings up to 3 kV.
Safety Certification Kits: Feature NP0 and X7R dielectrics with safety certifications.
High Frequency Kits: NP0 dielectric capacitors rated at 50 V.

SMD Ceramic EMI Filter Capacitors:

X2Y® Products: Include Y-capacitors and X-capacitors with various capacitance values and voltage ratings.

GPS Antennas:

Patch Antennas: Specifications for GPS patch antennas with varying gains and dimensions.
Active Modules: Include dimensions, frequency range, polarization, LNA gain, noise figure, current consumption, and temperature range.

High Frequency Products:

Chip Antennas: Lists chip antennas for applications such as GPS, UHF, WiFi, Bluetooth, and DECT/WCDMA.
Filters: Specifications for band pass and low pass filters.
Diplexers: Specifications for diplexers used to separate or combine signals.
Baluns and Balanced Filters: Details on baluns and balanced filters for impedance matching and signal balancing.
Multilayer Chip Varistors: Specifications for protecting circuits from voltage spikes.

Conclusion: This document serves as a detailed reference for selecting and ordering electronic components, providing essential information on specifications, ordering codes, and packaging options to meet diverse application needs.

Catalog excerpts

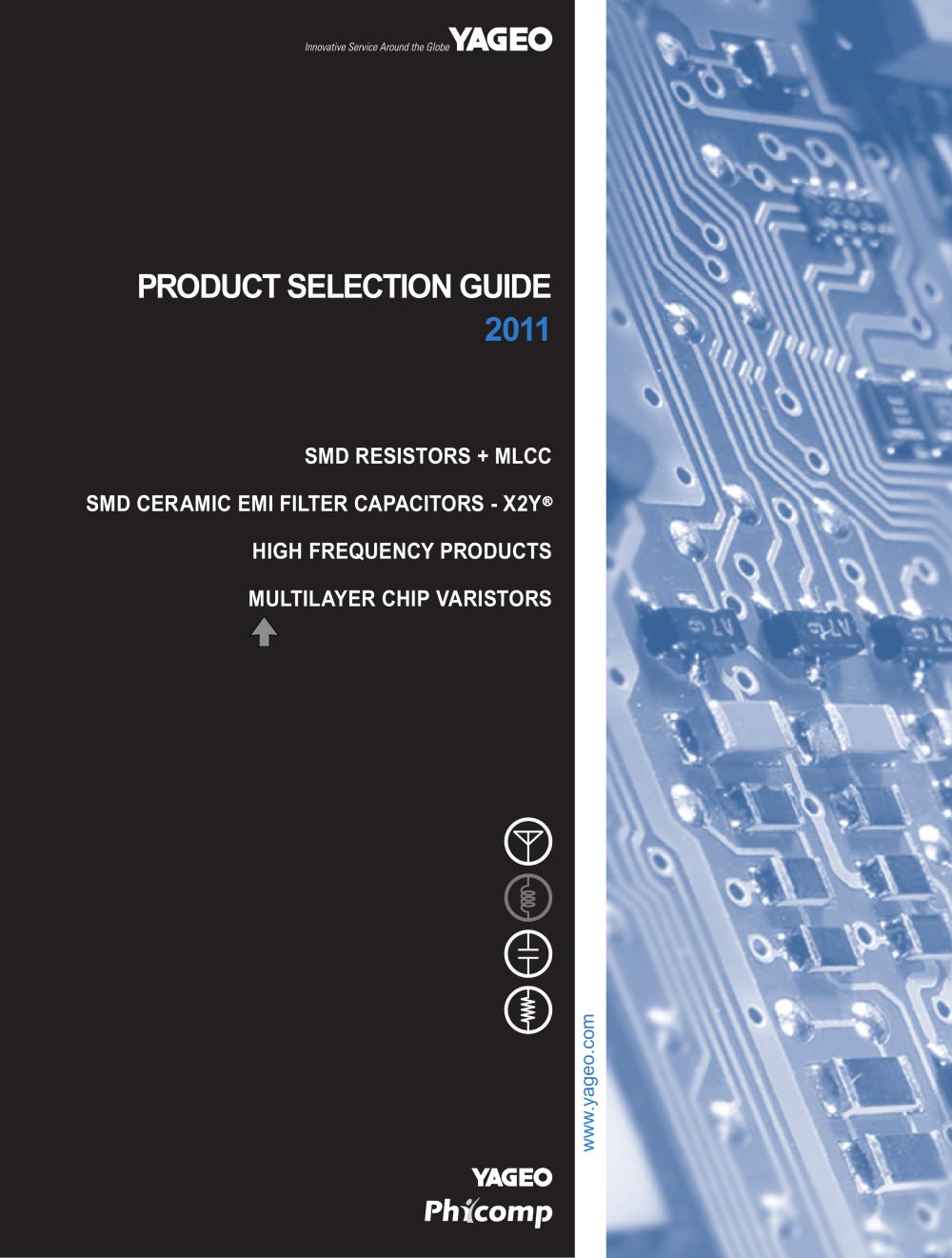

PRODUCT SELECTION GUIDE 2011 www.yageo.com SMD RESISTORS + MLCC SMD CERAMIC EMI FILTER CAPACITORS - X2Y ® HIGH FREQUENCY PRODUCTS MULTILAYER CHIP VARISTORS

Open the catalog to page 1

Part numbering system and ordering You can order components from this catalogue in two ways. Both ways give logistic and packing information. Clear text ordering code This unique number is an easily-readable code. - 15 digits code (PHYCOMP CTC ) -14 to 17 digits code (GLOBAL PART NUMBER for both Yageo and Phycomp branded products) 12 digits ordering code This unique 12NC number forms the basis of the Phycomp logistic system. You will find details for ordering in the "Ordering" section next to each selection chart. Minimum shipment quantities, prices and delivering details can be obtained from...

Open the catalog to page 3

Chip Resistors General Information 8 Specification overview 8 Ordering information - Global part number 11 Ordering information - North America 13 IEC publication 63, SPQ, last digit of 12NC 14 Chip Resistors Selection Charts 15 Thick film chip resistors 15 Introduction to thick film general purpose chip resistors 15 01005 to 2512 17 Thick film high ohmic chip resistors 19 Introduction to thick film high ohmic chip resistors 19 Thick film precision grade chip resistors 21 Introduction to thick film precision grade chip resistors 21 0402 to 1206 23 Thin film high precision high stability chip...

Open the catalog to page 4

Trimmable chip resistors 59 Introduction to trimmable chip resistors 59 0402 to 1206 61 Anti-sulfurated chip resistors 62 Introduction to anti-sulfurated chip resistors 62 0402 to 1206 64 Automotive grade chip resistors 65 Introduction to automotive grade chip resistors 65 0402 to 1206 67 RF attenuator chip resistors 68 Introduction to RF attenuator chip resistors 68 0404 70 Chip Resistors Engineering Design Kits 71 Engineering design kits 71 MLCC General Information 74 Specification overview 74 Case dimensions 75 Ordering information - Global part number 77 Ordering information for North America...

Open the catalog to page 5

Y5V 111 Y5V - General purpose & High capacitance 6.3 to 25V, 0201 / 0402 111 Y5V - General purpose & High capacitance 6.3 to 25V, 0603 / 0805 112 Y5V - General purpose & High capacitance 6.3 to 25V, 1206 / 1210 113 Y5V - General purpose & High capacitance 50V, 0402 to 1206 114 Safety certification MLCCs 116 NP0 - High voltage SC type, 1808 / 1812 116 X7R - High voltage SC type, 1808 / 1812 117 Arrays 119 NP0 - 4C Arrays, 0508 / 0612 119 X7R - 4C Arrays, 0508 / 0612 120 Y5V - 4C Arrays, 0612 121 MLCC Engineering Design Kits 123 Sample kits for 0201 / 0402 123 Sample kits for 0603 / 0805 124 Sample...

Open the catalog to page 6

SURFACE-MOUNT CHIP RESISTORS

Open the catalog to page 7

11 Global part number - Single resistor (3) R C 0 4 02 J R ¯ 7 D 1 0 R L Series name (code 1-2) Default code (1/2) (code 17) RC = Thick film general purpose RE = Thick film precision grade Resistance (code 12-16) RT = Thin film high precision high stability 0R = Jumper RJ = Thin film general purpose 0R1 = 0.1Ù RL = Low ohmic 1R = 1Ù PT = Thick film low ohmic low T. C. R. 10R = 10Ù PR / PF / PH / PE = Current sensor - low T. C. R. 100R = 100Ù TR = Trimmable 1K = 1 000Ù SR = Surge 1M = 1 000 000Ù AR = NiAu termination 100M = 100 000 000Ù RV = High voltage AF = Anti-sulfurated Taping reel (code...

Open the catalog to page 11

12 Global part number - Power enhancement R L 0 8 0 5 J R ¯ 7 W 0 R 0 1 5 L Series name (code 1-2) Default code (code 17) RC = Thick film general purpose L = Default code RL = Low ohmic Z = Special packing PT = Thick film low ohmic low T. C. R. PR / PF = Current sensor - low T. C. R. Resistance (code 12-16) 0R01 = 0.01Ù Size code (code 3-6) 0R1 = 0.1Ù (inch / metric) 0805 = 2.0 x 1.25 Taping reel (code 10-11) 0815 = 2.15 x 3.75 07 = 7 inch Dia. reel 1206 = 3.2 x 1.6 7W = 2 x standard power 2010 = 5.0 x 2.5 7T = 3 x standard power 2512 = 6.35 x 3.2 47 = 4 x standard power Tolerance (code 7) T....

Open the catalog to page 12

13 Phycomp CTC ordering code - Noth America Ordering example: 9C06031A10R0FKHFT = R-Chip 0603, 10R0, 1%, 5K reel 1-2 3-6 7-8 9-12 13 14 15-16 17 X X X X X X X X X X X X X X X X X Series name (code 1-2) Packing style (code 17 ) 9C = Phycomp thick film chip resistors T = 5K paper 9T = Phycomp thin film chip resistors 3 = 10K paper 4 = 20K paper Size code (standard resistors, code 3-6) 5 = 4K blister 0201 0201 (0603) 6 = 5K blister 0402 0402 (1005) 7 = 50K paper 0603 0603 (1608) P = 25K bulk case 0805 0805 (2012) 1206 1206 (3216) Special coding (code 15-16) 1210 1210 (3225) HF = SnPb 1218 1218 (3248)...

Open the catalog to page 13

17 Global part number - Preferred type for ordering Yageo / Phycomp branded products Ordering example: RC0402JR-07100KL R C 0 4 0 2 J R ¯ 0 7 1 0 0 K L Series name (code 1-2) Default code(1/2) (code 17) RC = General purpose thick film Resistance (code 12-16) Size code (code 3-6) 0R = Jumper (inch / metric) 10R = 10Ù 0100 = 0.4 x 0.2 100R = 100Ù 0201 = 0.6 x 0.3 100K = 100KÙ 0402 = 1.0 x 0.5 0603 = 1.6 x 0.8 Taping reel (code 10-11) 0805 = 2.0 x 1.25 07 = 7 inch Dia. reel 1206 = 3.2 x 1.6 10 = 10 inch Dia. reel 1210 = 3.2 x 2.6 13 = 13 inch Dia. reel 1218 = 3.2 x 4.5 7D = 7 inch Dia. reel 2010...

Open the catalog to page 17

19 Features Reduced size of final equipment Low assembly costs Higher component and equipment reliability High ohmic values up to 100MÙ Suitable for power supplies in small equipments • • • • • Derating curve Construction Maximum dissipation (P) in percentage of rated power as a function of the operating ambient temperature (Tamb). 100 80 60 40 20 -55 -40 -20 0 20 40 60 80 70 100 120 140 160 Ambient Temperature (°C) Rated Power (%) 155 overcoat primary glass layer resistive layer (jumper chip is a conductor) inner electrode termination (Ni / matte tin) ceramic substrate marking layer Dimensions...

Open the catalog to page 19

20 Electrical characteristics Type Power P70 Operating Temp. range MWV RCOV DWV Resistance range & tolerance T. C. R. ( ppm/°C) RC0805 1/8W -55°C to +155°C 150V 300V 300V E24 ±5%, ±10%, ±20% 24MÙ R 100MÙ ±300 RC1206 1/4W -55°C to +155°C 200V 400V 500V Note: See page 11 for ordering code. For more detailed, please contact our sales offices, distributors and representatives in your region. Environmental characteristics Performance test Test method Procedure Requirements Life MIL-STD-202Gmethod 108A 1 000 hours at 70 ±5°C applied RCWV 1.5 hours on, 0.5 hours off, still air required ±(2% +0.05Ù)...

Open the catalog to page 20
