Inductors
Inductors
Yageo Corporation offers a wide range of SMD chip beads and inductors aimed at addressing electromagnetic interference (EMI) issues. The document details various series of these components, each with unique characteristics and applications.
The products are categorized into several series, such as SB, NB, HF, GB, PB, and UPB for chip beads, and various series for multilayer and wire-wound chip inductors. Each series is tailored with specific impedance values, frequency characteristics, and dimensions to meet different EMI suppression needs.
Detailed specifications for each product series include impedance values with a tolerance of ±25%, test frequencies, DC resistance, and rated current. These specifications are essential for selecting the right component for specific applications.
The document provides dimensions for each type of chip bead, including measurements for length, width, height, and terminal electrode size, ensuring compatibility with circuit designs.
Each series of chip beads and inductors is detailed with its electrical characteristics, including part numbers, impedance, test frequency values, maximum DC resistance, and rated current values. These characteristics help determine the suitability of each component for specific electronic applications.
The document serves as a technical guide for selecting appropriate SMD chip beads and inductors from Yageo Corporation's extensive product lineup, providing essential specifications and characteristics necessary for addressing EMI challenges in electronic circuits.
Details on UPB, FB, and CL series, including impedance, test frequency, DC resistance, and rated current. The CL series is noted for low-frequency applications and high mounting density.
Information on tape dimensions, reel dimensions, and recommended mounting patterns for each series, including packaging quantities per reel.
Specifications for mechanical performance tests such as flexure strength and vibration tests, including conditions and test durations. Resistance to soldering heat is also tested.
Components are suitable for use in stereos, car radios, mobile phones, VCRs, computer disk drives, and PC boards, primarily for EMI filtering and compact circuit designs.
Includes initial value changes, pre-heating, solder composition, solder temperature, and solderability requirements.
Details on temperature cycle, humidity resistance, high and low temperature resistance tests.
Applications include RF resonance, impedance matching, RF and wireless communication, IT equipment, automotive electronics, etc. Features include RoHS compliance, excellent Q factor, cost-effectiveness, and support for up to 6 GHz frequency.
Recommended patterns for solder land and inductor placement, reel and tape dimensions.
Applications include personal and cordless phones, high-frequency communication products, GPS, personal computers. Features include high Q value, low DC resistance, excellent solder heat resistance.
Focus on SQC and NL series for use in personal computers, disk drives, and DC power supply circuits. Specifications include impedance, tolerance, test frequency, SRF, DC resistance, and rated current.
Soldering heat resistance of 260°C for 10 seconds after a 150°C preheat cycle for 4 minutes. Operating temperature range from -25°C to +85°C.
Suitable for personal computers, disk drives, computer peripherals, pagers, cordless phones, and DC power supply circuits. The NL series is also applicable in microtelevisions, video cameras, car radios, and other electronic devices.
Low DC resistance, high current capacity, high impedance characteristics, excellent solder heat resistance, and ability to withstand mechanical shocks and temperature changes.
Detailed specifications for various series such as SSL04LP, SSL0400, SSL0402, SSL0614, SSL0802, SSL0804, SSL0810, SSL1306, SSL0503HC, and SSL0804HC. Designed for high current, low voltage DC-DC converter applications.
High energy storage, very low resistance, smallest size with high performance, wide operating temperature range from -40°C to +85°C.
Inductance tested at 100 KHz, 0.1 Vrms. Inductance drop typically 10% to 20% at Isat (Saturation Current). ΔT typically a 30°C to 40°C rise at Irms (Rated Current).
Available in tape and reel or bulk packaging. Each product identified by a specific part number indicating its series, inductance, tolerance, and packaging style.
Suitable for use in notebook computers, step-up and step-down converters, flash memory programmers, and other applications.
The document serves as a comprehensive guide for selecting the appropriate SMD power inductor based on specific electrical characteristics and application requirements. It emphasizes the importance of understanding the rated and Itemp currents, as well as the physical dimensions and packaging for integration into electronic systems.
Catalog excerpts

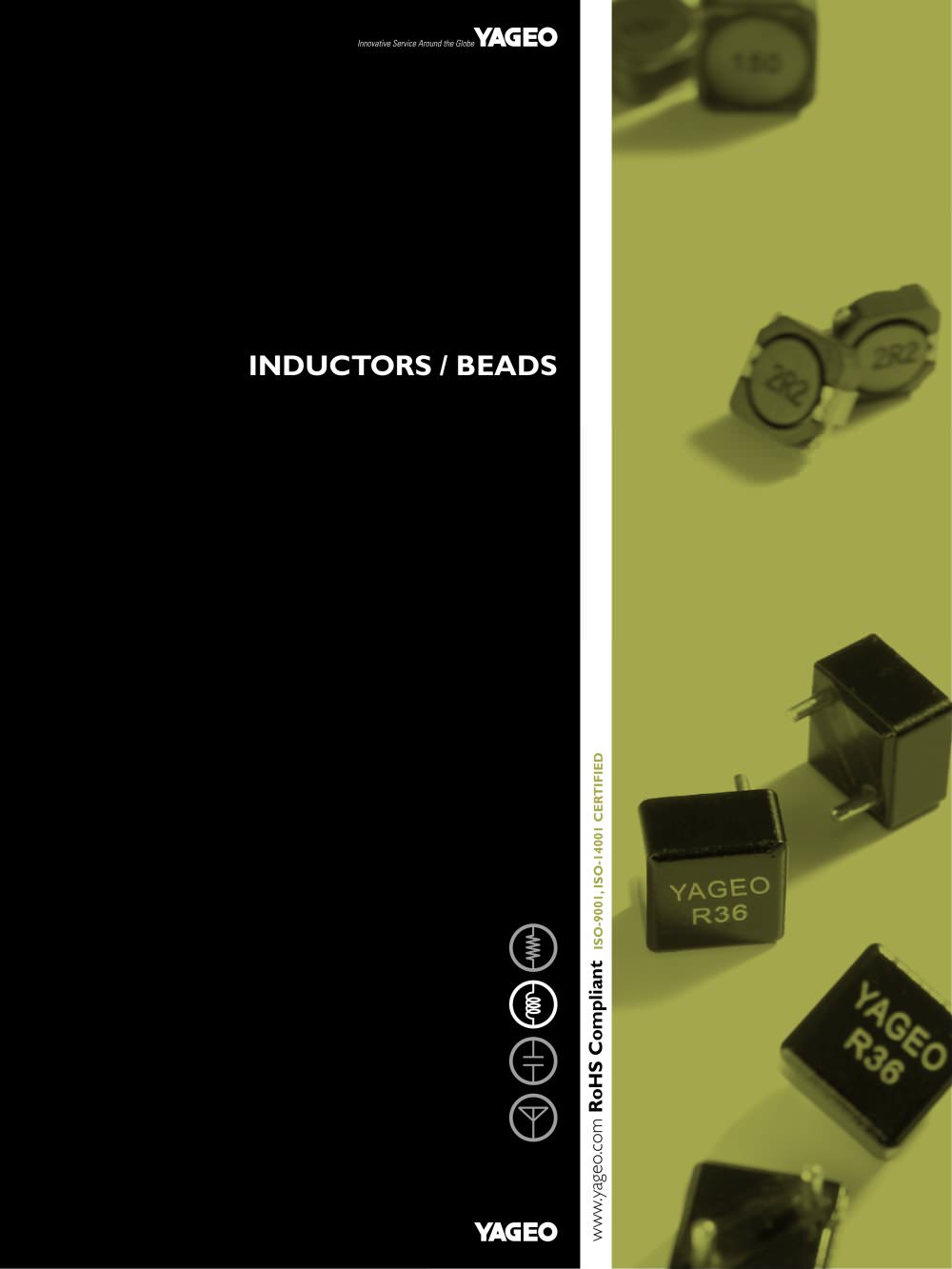

INDUCTORS / BEADS www.yageo.com RoHS Compliant ISO-9001, ISO-14001 CERTIFIED
Open the catalog to page 1
INDEX 4 SMD Chip Beads [SB/NB/HF/GB/PB/UPB Series] 18 SMD Chip Beads [FB Series] 21 SMD Multilayer Chip Inductors [CL Series] 28 SMD Multilayer Chip Inductors [CLH Series] 33 SMD Wire Wound Chip Inductors [SQV Series] 37 SMD Wire Wound Chip Inductors [SQC Series] 42 SMD Wire Wound Chip Inductors [NL Series] 48 SMD Wire Wound Chip Inductors [NLC Series] 51 SMD Wire Wound Chip Inductors [NLV Series] 55 SMD Wire Wound Chip Inductors [NLCV Series] 58 SMD Wire Wound Chip Inductors [LS Series] 62 SMD Wire Wound Chip Inductors [LT Series] 66 SMD Wire Wound Chip Inductors [LD Series] 69 SMD Wire Wound...
Open the catalog to page 3
27 CL SERIES RELIABILITY TEST 1-1 MECHANICAL PERFORMANCE NO. ITEM SPECIFICATION TEST CONDITIONS 1-1-1 Flexure Strength The forces applied on the right conditions must not damage the terminal electrode and the ferrite. Test device shall be soldered on the substrate. Substrate Dimension: 100 x 40 x 1.6 mm Deflection: 2.0 mm Keeping Time: 30 sec *For 100505, substrate dimension is 100 x 40 x 0.8 mm 1-1-2 Vibration Test device shall be soldered on the substrate. Oscillation Frequency: 10 to 55 to 10 Hz for 1 Min. Amplitude: 1.5 mm Time: 2 Hrs. for each Axis (X, Y & Z), Total 6 Hrs. 1-1-3 Resistance...
Open the catalog to page 27
36 Dimensions: mm REEL DIMENSIONS TAPE DIMENSIONS TAPE MATERIAL Carrier Tape: Polystyrene Cover Tape: Polyethylene TYPE TAPE REEL QUANTITY/ DIMENSIONS DIMENSIONS REEL A B K D E W P P0 P2 A B C D SQV322520 2.90 3.60 2.25 1.50 1.75 8 4 4 2 178 60 9.0 1.5 2,000 SQV453226 3.60 4.90 3.00 1.50 1.75 12 8 4 2 178 60 13.2 1.5 500 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader K B W P0 P2 P D E A A C D B
Open the catalog to page 36
43 SHAPES AND DIMENSIONS Unit: mm NL201614 NL252018 NL252018 B Max: at 5N0~R10 = 2.79 mm, at R12~101 = 2.50 mm TYPE A B C D E F G H I J Max. Max. Max. Ref. NL252018 2.92 2.5 / 2.79 2.2 0.51 0.51 - - 2.54 1.02 1.27 TYPE A B C D E F G H I J Max. Max. Max. Ref. NL201614 2.4 1.72 1.52 0.7 1.27 0.5 1.02 1.78 1.02 0.76 B Overall E Terminal A F G F C D Terminal Warparound : Approx. 0.015”/0.38mm Both Ends H I J I Pad Layout E B A C D TerminalWarparound : Approx. 0.015î /0.38mm Both Ends H I J I Pad Layout
Open the catalog to page 43
50 TAPE MATERIAL REEL DIMENSIONS Unit: mm PACKAGING QUANTITY TAPE DIMENSIONS Unit: mm TYPE A B K W P F T NLC252018 2.61 2.93 0.23 8 4 3.5 2.25 NLC322522 2.95 3.85 0.25 12 4 3.5 2.45 TYPE A B C D NLC252018 178 60 12 1.5 NLC322522 178 60 16 1.4 A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.75±0.1 T±0.05 K±0.05 W±0.2 F±0.05 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader A C D B TYPE QUANTITY/REEL NLC252018 2,000 NLC322522 2,000
Open the catalog to page 50
54 Dimensions: mm TAPE DIMENSIONS REEL DIMENSIONS TAPE MATERIAL RECOMMENDED PATTERN TYPE TAPE RECOMMENDED REEL QUANTITY/ DIMENSIONS PATTERN DIMENSIONS REEL A B T W P F K A B C A B C D NLV322522 2.96 3.60 2.40 8 4 3.50 0.23 1.6 1.2 2.0 178 60 12 1.5 2,000 A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.75±0.1 T±0.05 K±0.05 W±0.2 F±0.05 A C D B 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader Inductor Pattern B A B C
Open the catalog to page 54
57 Dimensions: mm TYPE TAPE RECOMMENDED REEL QUANTITY/ DIMENSIONS PATTERN DIMENSIONS REEL A B T W P F K A B C A B C D NLCV453232 3.30 5.00 3.50 12 8 5.50 0.30 3.0 1.5 2.8 178 60 16 1.4 500 TAPE DIMENSIONS REEL DIMENSIONS TAPE MATERIAL RECOMMENDED PATTERN A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.75±0.1 T±0.05 K±0.05 W±0.2 F±0.05 A C D B 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader Inductor Pattern B A B C
Open the catalog to page 57
65 PACKAGING QUANTITY TAPE DIMENSIONS Unit: mm TYPE A B T W P F K LT0805 1.85 2.45 0.23 8 4 3.5 1.0 LT1210 3.05 3.70 0.25 12 4 5.5 1.1 TYPE QUANTITY/REEL LT0805 2,000 LT1210 2,000 REEL DIMENSIONS Unit: mm TAPE MATERIAL 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader A C D B A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.5±0.1 K T W±0.2 F±0.05 TYPE A B C D LT0805 178 60 12 1.5 LT1210 178 60 12 1.5
Open the catalog to page 65
68 REEL DIMENSIONS Unit: mm PACKAGING QUANTITY TYPE A B C D LD0805 178 60 12 1.5 TYPE QUANTITY/REEL LD0805 2,000 TAPE DIMENSIONS Unit: mm TAPE MATERIAL 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader A C D B TYPE A B T W P F K LD0805 1.60 2.42 0.22 8 4 3.50 1.45 A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.5±0.1 K T W±0.2 F±0.05
Open the catalog to page 68
71 TAPE DIMENSIONS Unit: mm A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.5±0.1 K T W±0.2 F±0.05 REEL DIMENSIONS Unit: mm A C D B TYPE A B C D PS1008 178 60 16 1.4 TYPE A B T W P F K PS1008 3.85 3.85 0.25 12 8 5.5 2.85 TAPE MATERIAL PACKAGING QUANTITY 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader TYPE QUANTITY/REEL PS1008 750
Open the catalog to page 71
80 Dimensions: mm TAPE DIMENSIONS TAPE MATERIAL A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.75±0.1 T±0.05 K±0.05 W±0.2 F±0.05 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader REEL DIMENSIONS RECOMMENDED PATTERN A C D B H I J I Pad Layout TYPE TAPE RECOMMENDED REEL QUANTITY/ DIMENSIONS PATTERN DIMENSIONS REEL A B T W P F K UNIT H I J A B C D CT0805 1.85 2.45 1.00 8 4 3.50 0.23 inch 0.070 0.040 0.030 178 60 12 1.5 2,000 mm 1.78 1.02 0.76
Open the catalog to page 80
83 TYPE TAPE RECOMMENDED REEL QUANTITY/ DIMENSIONS PATTERN DIMENSIONS REEL A B T W P F UNIT H I J A B C D HC0603 1.23 1.90 0.97 8 4 3.50 inch 0.040 0.025 0.025 178 60 12 1.5 4,000 mm 1.02 0.64 0.64 Dimensions: mm TAPE DIMENSIONS REEL DIMENSIONS TAPE MATERIAL RECOMMENDED PATTERN A C D B 160mm Min. Blank Part Cover Tape Chip Mounting Part Blank 330mm Min. Leader A±0.1 B±0.1 P±0.1 4±0.1 2±0.05 1.75±0.1 T±0.05 W±0.2 F±0.05 H I J I Pad Layout
