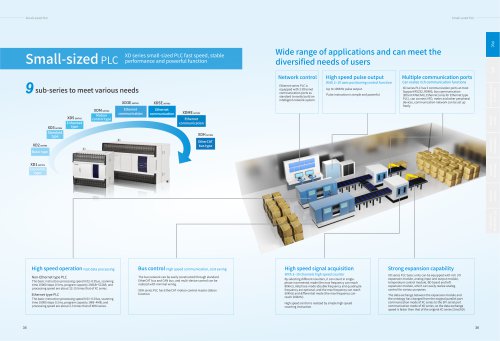

Small-sized plc XD series small-sized PLC fast speed, stable performance and powerful function Wide range of applications and can meet the diversified needs of users sub-series to meet various needs XD3E series XD5E series Enhancedtype Motion control type Ethernetcommunication Ethernet communication XDME series Ethernet communication Standard type Basic type type EtherCAT bus type High speed operation Fast data processing The basic instruction processing speed 0.02~0.05us, scanning time 10000 steps 0.5ms, program capacity 256kB~512kB, and processing speed are about 12-15 times that of XC series. The basic instruction processing speed 0.01~0.03us, scanning time 10000 steps 0.2ms, program capacity 1MB-4MB, and processing speed are about 2-3 times that of XDM series. Bus control High speed communication, cost saving The bus network can be easily constructed through standard EtherCAT bus and CAN bus, and multi-device control can be realized with minimal wiring. XDH series PLC has EtherCAT motion control master station function. High speed signal acquisition With 3~10 channels high speed counter By selecting different counters, it can count in singlephase incremental mode (the max frequency can reach 80kHz), AB phase mode (double frequency and quadruple frequency are optional, and the max frequency can reach 50KHz) and differential mode (the max frequency can reach 200kHz). High speed control is realized by simple high-speed counting instruction. Strong expansion capability XD series PLC basic units can be equipped with rich I/O expansion module, analog input and output module, temperature control module, BD board and left expansion module, which can easily realize analog control for various purposes. The data exchange between the expansion module and the ontology has changed from the original parallel port communication mode of XC series to the SPI serial port communication mode of XD series, so the data exchange speed is faster than that of the original XC series (2ms/AD).

I XD1 series The function is relatively simple. It can carry out logic control, data operation and other general functions. It does not support right expansion module, left expansion ED module or expansion BD board. © Program capacity 256KB © I/O sequential control © Max I/O 32 points © Basic instruction 0.02~0.05us ® RS232, RS485 © X-NET field bus I XD1 series model list Model “Note; ©Only the PLC with transistor output has high speed positioning fu nction; ©Thei n the table indicates that this model doesn't have this function; ©Special refers to system occupancy, cannot be used for other purposes....

I XD2 series The functions are complete. In addition to the basic data processing function, it also has special functions such as pulse output, highspeed counting, pulse width modulation, frequency measurement and so on. it supports left expansion ED and BD (16 points are not supported), and does not support right expansion module, which can meet the basic use needs of users. © Program capacity 256KB © I/O sequential control © Max I/O 60 points © Basic instruction 0.02~0.05us © RS232, RS485 © X-NET field bus ® 2 channels lOOKHz pulse output © 3 channels high speed counting (single phase max80K,...

I XD3 series The functions are complete. In addition to the basic data processing function, it also has special functions such as pulse output, highspeed counting, pulse width modulation, frequency measurement and so on. It supports left expansion ED, expansion BD (16 points are not supported) and right expansion module, which can meet the usage needs of the majority of customers. © Program capacity 256KB (D I/O sequential control © Max I/O 380 points © Basic instruction 0.02~0.05ps © RS232, RS485 © X-NET field bus ® 2~4 channels lOOKHz pulse output (Y2, Y3 max pulse output frequency of XD3-24T4/32T4...

Small-sized PLC Enhanced type I XD5 series In addition to all the functions of standard PLC, it has faster processing speed (about 15 times that of XC series), larger internal resource space and 2 -10 channels of high-speed pulse output. It supports the connection of right expansion module, expansion BD board (not supported by 16 points) and left expansion ED module, and supports SD card expansion (except 16 points), which can meet various requirements. © Program capacity 512KB (D I/O sequential control © Max I/O 592 points © Basic instruction 0.02~0.05ps © RS232, RS485 © X-NET field bus © 3-10...

I XD5-xDnTm series Xd5 series high-speed differential PLC is designed according to the fast response demand of servo motor. It does not need conversion circuit, wiring is convenient and standard equipped with all functions of enhanced PLC. ® Program capacity 512KB ® I/O sequential control © Max I/O 560 points © Basic instruction 0.02~0.05ps © RS232, RS485 © X-NET field bus © 4 axes 920KHz differential pulse output © 4 channels 1MHz differential high speed counter © USB port high speed download (max 12Mbps) I XD5 differential series model list Model "Note: ©The in the table indicates that this...

Motion control type PLC I XDM series In addition to all functions of standard PLC, it has faster processing speed (about 15 times that of XC Series), larger internal resource space, two-axis linkage, interpolation and follow-up functions, and supports external SD card for data storage. Support the connection of right expansion module, expansion BD board and left expansion module. ® Program capacity 512KB-1.5MB © I/O sequential control (D Max I/O 572 points © Basic Instruction 0.02~0.05ps © RS232, RS485 © X-NET field bus © 4-10 axes lOOKHz pulse output ® 4-10 channels high speed counter (single...

Ethernet communication type PLC I XD3E series In addition to all the functions of XD3 series (except SD card function), it has faster processing speed, supports RS232, RS485 serial port communication and Ethernet communication, and supports the connection of right expansion module, BD board and left expansion ED module. © Program capacity 256KB ® I/O sequential control (D Max I/O 572 points © Basic instruction 0.02~0.05|is © RS232, RS485, RJ45 © X-NETfieldbus © 2 axes lOOKHz pulse output ® 3 channels high speed counter (single phase up to 80K, AB phase up to 50K) I XD3E series model list Model...
