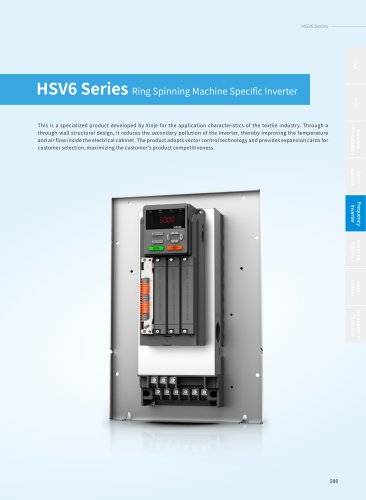

HSV6 Series Ring Spinning Machine Specific Inverter This is a specialized product developed by Xinje for the application characteristics of the textile industry. Through a through-wall structural design, it reduces the secondary pollution of the inverter, thereby improving the temperature and airflow inside the electrical cabinet. The product adopts vector control technology and provides expansion cards for customer selection, maximizing the customer's product competitiveness.

The use of heat pipe process heat sinks and phase-change material thermal grease provides stronger heat dissipation and ensures long-term stable operation under temperature. The increase in heat dissipation area helps improve heat port flow, thereby Increasing heat dissipation and allowing it to easily handle fanless situations. • To meet the high-temperature environment application requirement in textiles, capacitortemperature resistance is rated for 125°C for 3000 hours. • To meet the heat dissipation requirement in textiles, the inverter's reactor has been removed, and the capacitor capacity...

Installation DimensionsH SV6-4018/4022-B Drive Model Frequencyinverter HSV6-4055-B Drive Model

Panel Mounting Bracket Instruction The gray areas are the cut-out sections. The central cut-out measures 84.6 X 101.5 mm, and the four corner cut-outs are circularwith a diameter of 4.34 mm. M4 screws and nuts are inserted into these cut-outs to secure the bracket to the door panel.
