ATA-L6B Power Amplifier

Product catalog summary

Introduction
The ATA-L6B is a single-channel power amplifier designed for high-performance applications. It offers a maximum output voltage of 1200Vrms, continuous power of 800VA, and pulse power up to 2000VA. The device is suitable for both resistive and non-resistive loads, with adjustable output impedance to meet specific testing requirements.

Specifications

Maximum Output Voltage: 1200Vrms
Maximum Continuous Output Power: 800VA
Maximum Pulse Output Power: 2000VA, 10%@1S
Bandwidth (-3dB): 40Hz~150kHz
Total Harmonic Distortion (THD): ≤1%@1kHz, 53Vrms
Input Voltage for Full-Scale Output: 1Vrms
Input Impedance: 10kΩ
Voltage Monitoring: 5mV/V (±5%@Output, FS)
Current Monitoring: 100mV/A (±5%@Output, FS)
Protection Features: Over Temperature, Over Voltage, Over Current, Short Circuit, and No Load Protection
Power Supply Voltage: AC110~240V, 50/60Hz
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -20°C ~ 50°C
Working Humidity: ≤ 80% RH, non-condensing
Warranty: 1 year

Features
The ATA-L6B includes an LCD panel for displaying device status and parameters, ensuring ease of use. It has a single-ended input with a BNC connector, and the output can be monitored in real-time using an oscilloscope. The device is equipped with multiple protection features to prevent damage during operation.

Output Impedance and Monitoring
The output impedance is adjustable across multiple ranges, allowing for precise control based on testing needs. The device includes output current and voltage monitoring capabilities, with BNC connectors for easy connection to monitoring equipment.

Ordering Information
The ATA-L6B comes with a power cable, BNC cables, an aviation to alligator clip output cable, an RS232 program control cable, a user manual, a usage guide, a product qualification certificate, a calibration certificate, and a packing list.

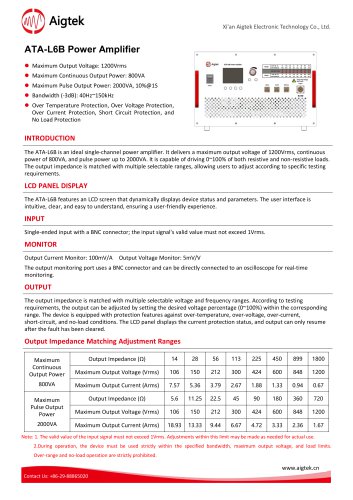

Catalog excerpts

Xi'an Aigtek Electronic Technology Co., Ltd. ATA-L6B Power Amplifier • Maximum Output Voltage: 1200Vrms • Maximum Continuous Output Power: 800VA • Maximum Pulse Output Power: 2000VA, 10%@1S • Over Temperature Protection, Over Voltage Protection, Over Current Protection, Short Circuit Protection, and No Load Protection The ATA-L6B is an ideal single-channel power amplifier. It delivers a maximum output voltage of 1200Vrms, continuous power of 800VA, and pulse power up to 2000VA. It is capable of driving 0~100% of both resistive and non-resistive loads. The output impedance is matched with multiple selectable ranges, allowing users to adjust according to specific testing requirements. The ATA-L6B features an LCD screen that dynamically displays device status and parameters. The user interface is intuitive, clear, and easy to understand, ensuring a user-friendly experience. Single-ended input with a BNC connector; the input signal's valid value must not exceed 1Vrms. Output Current Monitor: 100mV/A Output Voltage Monitor: 5mV/V The output monitoring port uses a BNC connector and can be directly connected to an oscilloscope for real-time monitoring. The output impedance is matched with multiple selectable voltage and frequency ranges. According to testing requirements, the output can be adjusted by setting the desired voltage percentage (0~100%) within the corresponding range. The device is equipped with protection features against over-temperature, over-voltage, over-current, short-circuit, and no-load conditions. The LCD panel displays the current protection status, and output can only resume after the fault has been cleared. Note: 1. The valid value of the input signal must not exceed 1Vrms. Adjustments within this limit may be made as needed for actual use. 2.During operation, the device must be used strictly within the specified bandwidth, maximum output voltage, and load limits. Over-range and no-load operation are strictly prohibited.
