Natural Gas NGX Solutions

Product catalog summary

Introduction
Xebec Inc. provides engineered adsorption solutions for drying natural gas at NGV fueling stations. The document outlines the importance of maintaining a low water dew point in compressed natural gas (CNG) to prevent corrosion and blockages in fuel systems, as per ISO 15403:2000 standards.

Importance of Drying Natural Gas
The ISO 15403:2000 standard emphasizes the need for a low water dew point to avoid liquid water formation, which can lead to corrosive compounds and system failures. Despite some builders' reluctance, desiccant dryers are crucial for maintaining the required dew point, especially in colder climates.

Drying Technologies
Two main drying technologies are discussed: suction side and high-pressure discharge drying. Suction side drying is preferred due to better performance and lower maintenance costs, as it avoids oil vapor contamination and does not require purge gas.

Xebec's Expertise
Xebec is a leader in natural gas drying solutions with over 25 years of experience. They offer comprehensive dehydration and filtration solutions, with major installations worldwide. Their products are built to ASME code and can meet specific international pressure vessel codes.

Product Offerings

STVNGX Series: Low-cost, low-capacity single tower dryers for low to medium flows.
STRNGX Series: Regenerable single tower dryers with AutoDew feature for medium to high flows.
DTRNGX Series: Twin tower dryers with compact design for low to medium flows.
HRBNGX Series: Fully automatic twin tower dryers for large flow and continuous duty cycles.

Additional Solutions
Xebec also offers treatment solutions for hydrogen, biogas, and other industrial gases, along with a range of filtration accessories.

Maintenance and Support
Regular maintenance is emphasized for optimal performance, with Xebec providing worldwide support, service, and spare parts.

Catalog excerpts

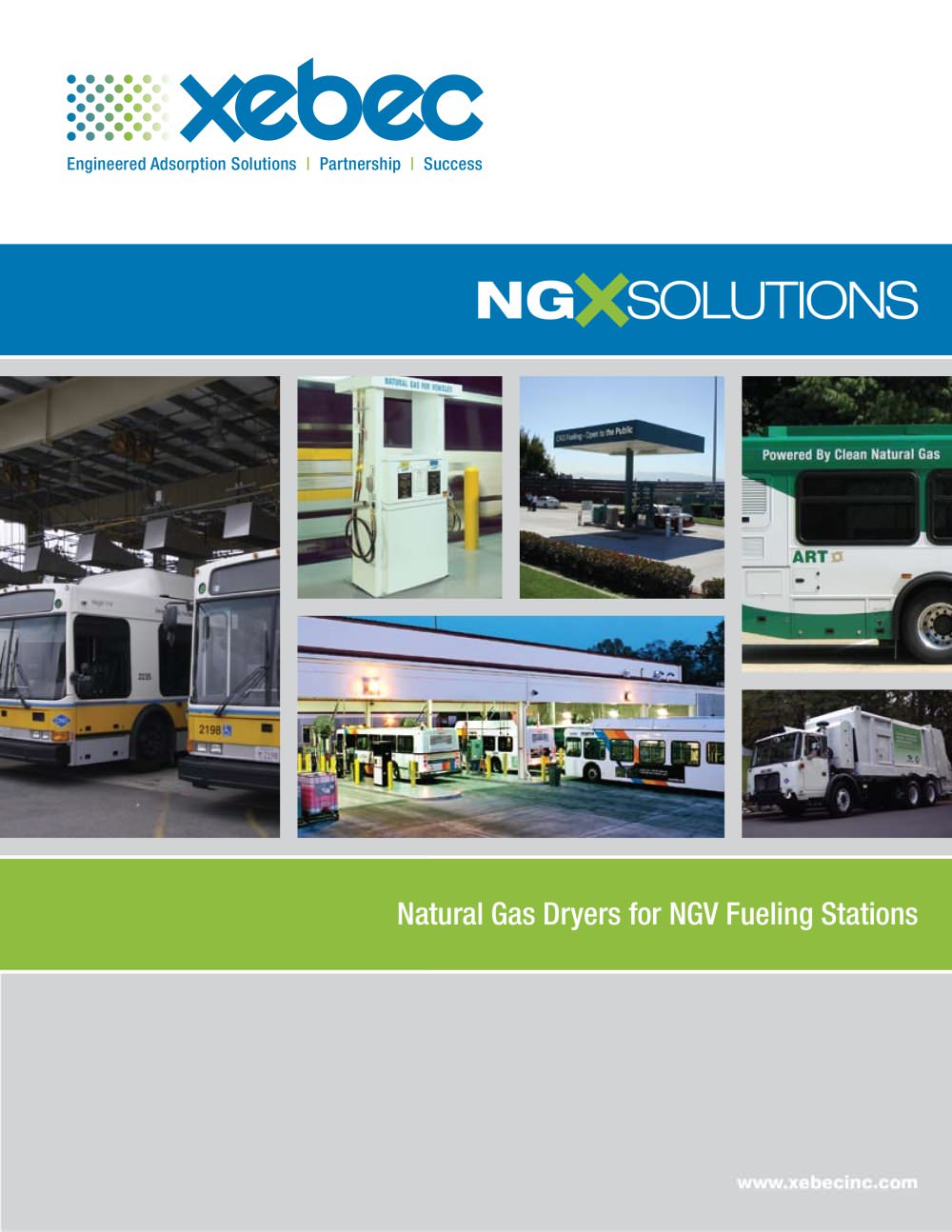

Engineered Adsorption Solutions | Partnership | Success NG SOLUTION S > Natural Gas Dryers for NGV Fueling Stations www.xebecinc.com size="-2">

Open the catalog to page 1

ISO 15403:2000 (E) standard states (paragraph 5.1): The single most important safety requirement of compressed natural gas (CNG) fuel is a very low water dew point temperature to preclude the formation of liquid water at any time. Liquid water is the precursor to the formation of corrosive compounds through combination with components in natural gas, namely carbon dioxide and hydrogen sulphide. The combination of corrosive agents, and the pressure cycling, caused by fuel consumption and subsequent refilling of the fuel storage container, can result in crack growth in metals and ultimately damage...

Open the catalog to page 2

s 25 years experience in designing and manufacturing gas dryers > s Complete dehydration and filtration solutions > s Proven engineered solutions for custom applications > s Major installations throughout the world: North America, China, Russia, Australia, South America, Indonesia and the Middle East > s Dedicated CNG team at every level of the process > s Worldwide support, service, replacement parts > s Built to ASME code and National Board certified > s Can be built to specific requirements such as the Chinese and Malaysian pressure vessel codes > s Hydrogen > s Biogas > s Industrial gases...

Open the catalog to page 3

Xebec filtration solutions include:Wide range of accessories available: s Committed to first class customer service.Call Toll-Free: 1-877-GO-XEBEC Email: [email protected] > Xebec stands behind the service, spare parts and technical support needed to ensure the most complete and effective solution for every installation throughout the world. Gas treatment equipment is installed in hazardous locations. In order to maintain optimum performance, Xebec stresses the importance of performing regular maintenance. XEBEC ADSORPTION INC. | 730 Boul. Industriel, Blainville (Quebec) CANADA J7C 3V4Toll Free:...

Open the catalog to page 8
