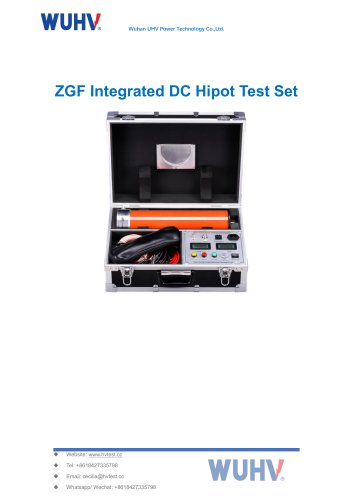

Product Introduction
The Integrated DC Hipot Test Set by Wuhan UHV Power Technology Co., Ltd. is a portable high-voltage detection instrument designed according to the China Power Industry Standard DL/T848.1-2004. It is used to test electrical insulation strength and leakage current of power devices. The device features a high-frequency voltage doubling circuit, PWM pulse width modulation technology, and voltage-current double-closed-loop feedback technology for improved voltage stability and low ripple. It includes imported high-power IGBT devices to eliminate switching interference and enhance portability.

Product Features
1. Stable Output Voltage: Utilizes high-frequency voltage doubler circuit and advanced technologies for high voltage stability and minimal ripple.
2. Comprehensive Protection: Features zero protection, over-voltage, over-current, and breakdown protection with fast-acting sensors.
3. 0.75U Function: Includes a high-precision button for zinc oxide arrester testing.
4. Zero Boost: Uses a multi-turn potentiometer for stable boosting and high adjustment precision.
5. Over-voltage Setting: Digital dialing switch for easy operation and high accuracy.
6. One-piece Design: Integrated design with compact double pressure cylinder for efficiency and portability.
7. Reliable Performance: High-performance imported components ensure good electrical performance and moisture resistance.
8. Simple Operation: User-friendly interface with clear instructions.

Technical Parameters
The test set is available in various specifications with rated voltages of 60 kV and 120 kV, and rated currents ranging from 2 mA to 10 mA. The rated power varies from 120 W to 1200 W, with machine weights of 9 kg or 10 kg. The device operates intermittently with a rated load for 30 minutes and can handle overload conditions. It requires an AC220V±10% 50Hz power supply and operates in temperatures from -10 to 40°C, with a relative humidity of up to 85% at 25°C, and altitudes below 1500 meters.
