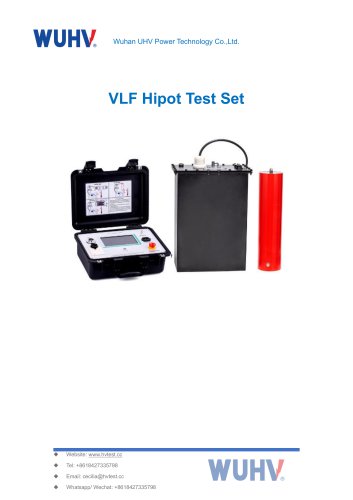

VLF Hipot Tester-Catalog

Product catalog summary

Product Introduction
The VLF Hipot Test Set by Wuhan UHV Power Technology Co., Ltd. is designed for high-voltage withstand voltage testing of electrical equipment, crucial for insulation preventive tests. It supports both AC and DC tests, with a focus on the 0.1Hz ultra-low frequency technology recommended by the International Electrotechnical Commission. This method is favored for its efficiency and reduced equipment size and weight compared to traditional power frequency tests.

Advantages of 0.1Hz Ultra-Low Frequency Testing
The 0.1Hz ultra-low frequency test is an alternative to power frequency tests, offering equivalence in results while significantly reducing equipment size and weight. It is particularly beneficial for large-capacity test samples like generators and power cables, where traditional methods require bulky and expensive transformers.

Product Features

High intelligence with digital frequency conversion and microcomputer control for automated testing.
Simple operation with a 7-inch LCD touch screen and user-friendly interface.
Comprehensive protection with overvoltage and overcurrent safeguards.
Safe and reliable with low-voltage connections and photoelectric control.
Accurate data sampling directly from the high-voltage side.
Compact and lightweight design suitable for outdoor use.
Multi-language display options.

Technical Parameters
The test set operates on a 220V power supply and supports multiple frequencies (0.1Hz, 0.05Hz, 0.02Hz, 0.01Hz) with a measurement accuracy of 3%. It is designed to function in temperatures ranging from -10°C to +40°C and humidity up to 85% RH.

Performance Comparison
Compared to mechanical devices, electronic 0.1Hz withstand voltage test equipment offers energy savings, reduced noise, and longer electrical life. The product is available in various models with different rated voltages and load capacities, ensuring versatility for different testing needs.

Catalog excerpts

Wuhan UHV Power Technology Co.,Ltd.

Open the catalog to page 1

Wuhan UHV Power Technology Co.,Ltd. The high-voltage withstand voltage test of electrical equipment is one of the most important items specified in the "Insulation Preventive Test”. The withstand voltage test can be divided into AC withstand voltage test and DC withstand voltage test. AC withstand voltage test can also be divided into power frequency, frequency conversion, and 0.1Hz ultra-low frequency testing techniques. Among them, 0.1Hz ultra-low frequency technology is the latest technology and is currently recommended by the International Electrotechnical Commission. According to the actual...

Open the catalog to page 2

Wuhan UHV Power Technology Co.,Ltd. imported products with short service life, high failure rate, and large volume. Compared to other types of voltage withstand testing equipment, 0.1 Hz ultra-low frequency has many advantages. Through years of practice, feedback from a large number of users has shown that this series of ultra-low frequency high-voltage technology is leading in the market and has the highest cost-effectiveness! Performance comparison of various pressure test equipment 1. High degree of intelligence: adopting digital frequency conversion technology, microcomputer control, fully...

Open the catalog to page 3

Wuhan UHV Power Technology Co.,Ltd. 3. Comprehensive protection: multiple protections (overvoltage protection, high and low voltage side overcurrent protection), quick action (action time ^ 10ms), instrument safety and reliability. 4. Safe and reliable: The controller and high-voltage generator are connected at low voltage, with photoelectric control, ensuring safe and reliable use. 5. Adopting high and low voltage closed-loop negative feedback control circuit, the output has no capacitance rise effect. 6. Accurate sampling: High voltage current and voltage data are directly obtained through...

Open the catalog to page 4
