VLF Hipot Test Set-Catalog

Product catalog summary

Product Introduction
The VLF Hipot Test Set by Wuhan UHV Power Technology Co., Ltd. is designed for high-voltage withstand voltage testing of electrical equipment, a critical component of insulation preventive tests. The test can be conducted using AC or DC methods, with the 0.1Hz ultra-low frequency AC test being the latest and recommended by the International Electrotechnical Commission. This method is particularly advantageous for large and medium-sized generators and motors due to its reduced equipment size and weight, offering a capacity about one-fifth of the power frequency test.

Product Features
The ultra-low frequency high-voltage generators feature a 7-inch touch screen, high-speed AD acquisition circuit, and advanced production technology. Key features include:

High intelligence with digital frequency conversion and microcomputer control for automated testing.
Simple operation with a user-friendly interface.
Comprehensive protection mechanisms for safety and reliability.
Accurate data sampling and wide testing range with multiple frequency options.
Compact and lightweight design for easy transport.
Multi-language display capabilities.

Technical Parameters
The equipment operates on a 220V±5%, 50/60Hz power supply, with a measurement accuracy of 3% and a voltage waveform distortion of ≤5%. The working environment ranges from -10°C to +40°C with humidity ≤85%RH. Various models are available with different rated voltages and load capacities, each with specific power requirements and weights.

Performance Comparison
Compared to other voltage withstand testing equipment, the 0.1Hz ultra-low frequency test offers advantages in equivalence, insulation destructiveness, operation safety, and ease of wiring. It is also lighter and smaller in size compared to power frequency and frequency withstand voltage equipment.

Conclusion
The VLF Hipot Test Set is a cost-effective, reliable, and advanced solution for high-voltage testing, suitable for a wide range of applications in the power industry.

Catalog excerpts

Wuhan UHV Power Technology Co.,Ltd.

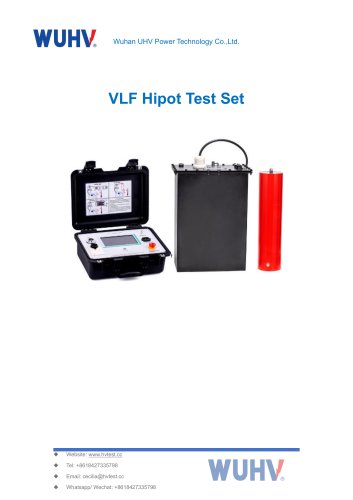

Open the catalog to page 1

Wuhan UHV Power Technology Co.,Ltd. The high-voltage withstand voltage test of electrical equipment is one of the most important items specified in the "Insulation Preventive Test”. The withstand voltage test can be divided into AC withstand voltage test and DC withstand voltage test. AC withstand voltage test can also be divided into power frequency, frequency conversion, and 0.1Hz ultra-low frequency testing techniques. Among them, 0.1Hz ultra-low frequency technology is the latest technology and is currently recommended by the International Electrotechnical Commission. According to the actual...

Open the catalog to page 2

Wuhan UHV Power Technology Co.,Ltd. imported products with short service life, high failure rate, and large volume. Compared to other types of voltage withstand testing equipment, 0.1 Hz ultra-low frequency has many advantages. Through years of practice, feedback from a large number of users has shown that this series of ultra-low frequency high-voltage technology is leading in the market and has the highest cost-effectiveness! Performance comparison of various pressure test equipment 1. High degree of intelligence: adopting digital frequency conversion technology, microcomputer control, fully...

Open the catalog to page 3

Wuhan UHV Power Technology Co.,Ltd. 3. Comprehensive protection: multiple protections (overvoltage protection, high and low voltage side overcurrent protection), quick action (action time ^ 10ms), instrument safety and reliability. 4. Safe and reliable: The controller and high-voltage generator are connected at low voltage, with photoelectric control, ensuring safe and reliable use. 5. Adopting high and low voltage closed-loop negative feedback control circuit, the output has no capacitance rise effect. 6. Accurate sampling: High voltage current and voltage data are directly obtained through...

Open the catalog to page 4
