Product Introduction

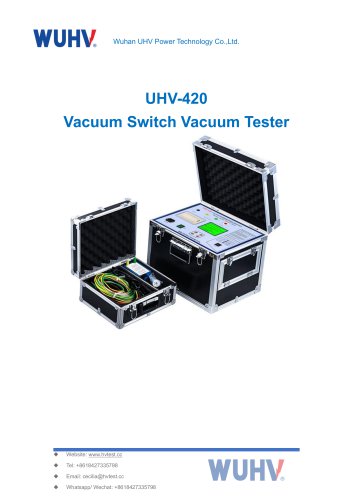

The UHV-420 Vacuum Switch Vacuum Tester by Wuhan UHV Power Technology Co., Ltd. is designed to assess the vacuum degree in vacuum circuit breakers. Traditional methods like the power frequency withstand voltage method can only determine vacuum degradation when it reaches 10-2-10-1 Pa. This tester uses a magnetron discharge method with a new excitation coil, allowing for non-disassembly testing and achieving sensitivity up to 10-5 Pa. It features microcomputer control for data acquisition and processing, making it highly accurate and practical for various industries.

Product Features
1. Quantitative measurement of vacuum degree in various vacuum switches.
2. On-site measurement without disassembly.
3. Accurate and reliable test results.
4. Simple and convenient operation.
5. Capability to save, print, and view test data.
6. Applicable across multiple sectors including electric power, steel, petrochemical, textile, coal, and railway.
7. Lightweight and portable design.

Technical Parameters
- Detection Object: Various types of vacuum switch tubes.
- Detection Method: New excitation coil for non-disassembly measurement.
- Scope of Application: Multi-purpose for various vacuum switches.
- Measuring Range: 10-5 to 10-1 Pa.
- Measuring Accuracy: 10% across different ranges.
- Magnetic Field Voltage: 1700V.
- Pulsed Electric Field High Voltage: 30kV.
- Switch Tube Opening Distance: Normal use distance.
- Use Environment: -20℃ to 40℃.
- Net Weight: 24kg.
- Size: 410×320×370mm.
- Sampler: Magnetron coil.
