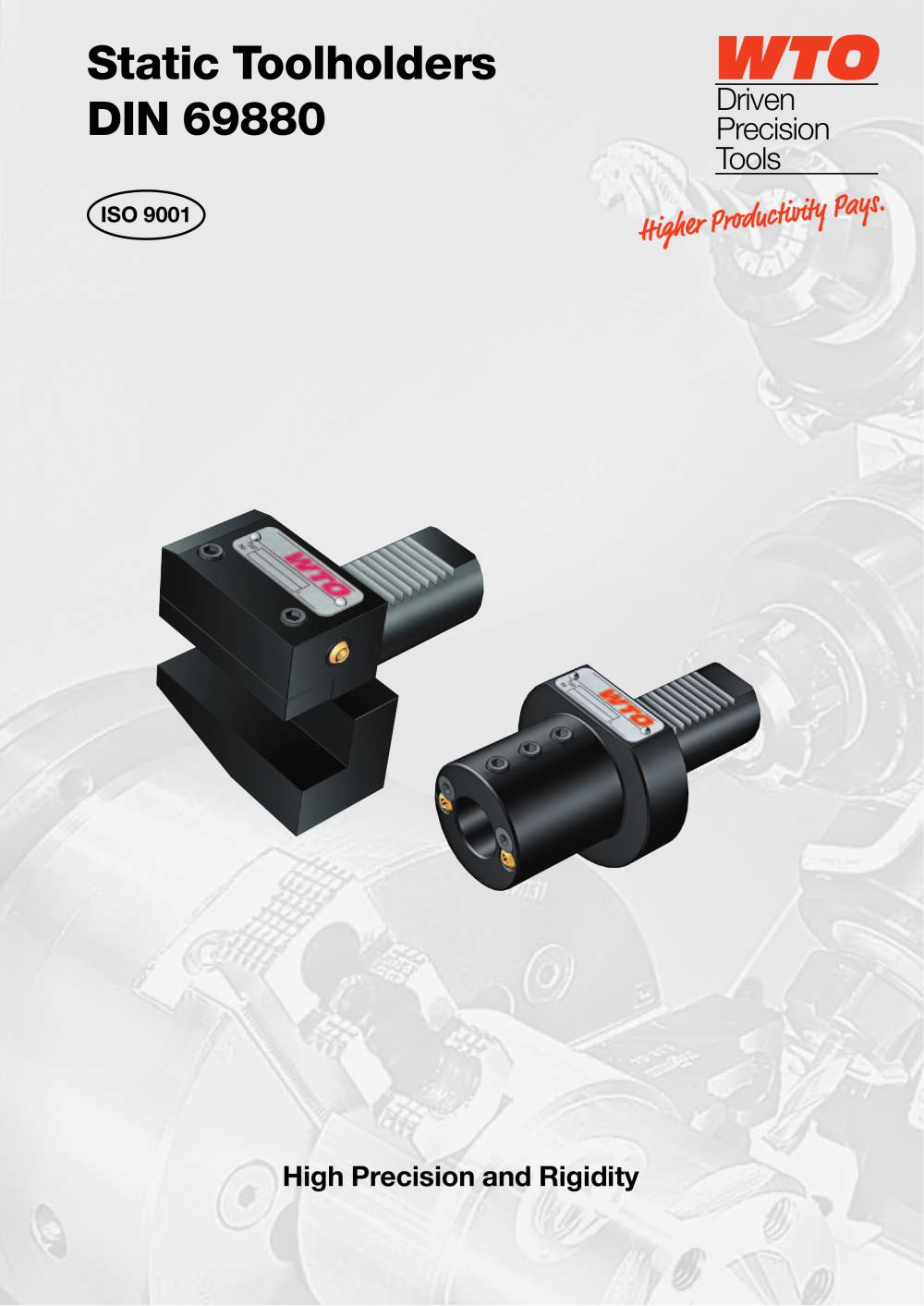

Static Toolholders

Product catalog summary

Program Overview: The document provides a comprehensive overview of various toolholders and accessories, categorized by their specific functions and designations. Key items include rotating bar stops, bar pullers, test bars, bushings, ER collet chucks, wrenches, clamping nuts, sealing washers, tapping collets, and collets. Each item is associated with a specific page number for detailed information.

Toolholders DIN 69880: This section details the specifications of toolholders conforming to DIN 69880 standards. It includes dimensions and configurations such as diameter (D1), height (H1, H2, H3), and length (L1, L2). The document emphasizes high precision and rigidity, essential for maintaining performance and productivity.

Accessories: The accessories section lists various components like bushings, collet chucks, and tapping heads, which are crucial for enhancing the functionality of toolholders. The dimensions and specifications are provided to ensure compatibility and optimal performance.

Tap Dimensions: This part outlines the dimensions of taps, which are critical for threading operations. The document provides detailed measurements to ensure precision in manufacturing processes.

Innovative Solutions: The document introduces the WT System, which is flexible, compact, and easy to handle, featuring interchangeable presetable spindles. The Coromant CaptoTM system is highlighted for its quick-change capability, enhancing productivity and offering a rapid return on investment. The Performance Series is noted for its innovative design, offering internal coolant up to 80 bar (1100 PSI), setting a new standard for performance.

Contact Information: The document provides contact details for WTO GmbH in Germany and WTO Inc. in the USA, offering avenues for further inquiries and support.

Catalog excerpts

High Precision and Rigidity >

Open the catalog to page 1

ISO 9001 4 48-WA > Rotating Bar Stop Page 2248-STŅ > Bar Puller Page 2248-Z2 > PlugZ2 Page 2348-PDŅ > Test Bar Page 232400 > Bushings Page 24 - 252401Ņ2410 > ER Collet Chuck with cylindrical shank Page 261075Ņ > Wrenches Page 262000 > Clamping Nuts Page 272101Ņ > Sealing Washers Page 271800 > Tapping Collets Page 281810Ņ1900 > Collets Page 291901Ņ > Tap Dimensions Page 30 > WTO GmbH ɕ Subject to change without notice. size="-2">
