PSB Series

Product catalog summary

Overview: Winters Instruments offers StabiliZRTM gauges designed to address the challenges of vibration and pulsation in industrial applications. These gauges provide accurate pressure readings without the need for liquid filling, eliminating common issues such as leaks and recalibration difficulties.

Common Problem: In industrial settings, heavy vibration and pulsation can lead to inaccurate readings and reduced gauge lifespan when using dry gauges. Liquid-filled gauges, while effective in dampening vibration, can leak and may not be compatible with all processes.

StabiliZRTM Solution: The StabiliZRTM gauges feature a unique movement that minimizes pointer flutter caused by vibration, extending the gauge's life and ensuring easy pressure reading. These gauges eliminate the need for liquid filling, thus avoiding leaks and compatibility issues. They also allow for easier recalibration and can operate at higher temperatures than glycerin-filled gauges.

Technical Details: The StabiliZRTM movement involves extending the pointer shaft through the back of the movement, with a flat paddle at the end. A stainless steel cap filled with a dampening compound covers the paddle, providing resistance similar to liquid-filled gauges but without associated concerns.

Product Options: The StabiliZRTM movement is available as an option on several Winters pressure gauge series, including PCC, PFP, PFQ, PPC, and PSC (4.5” only), with specific options detailed in the full catalogue.

Catalog excerpts

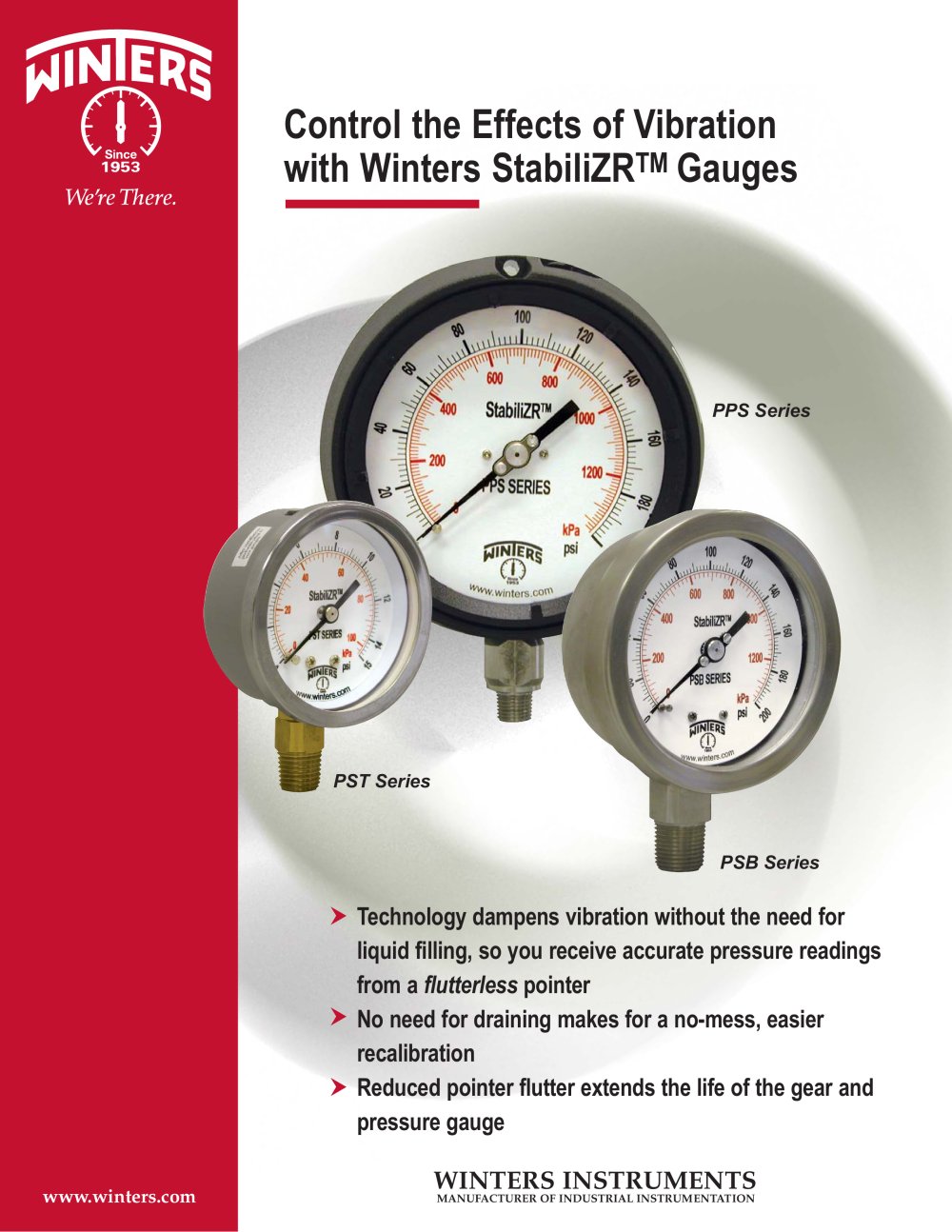

www.winters.com Control the Effects of Vibration with Winters StabiliZRTM Gauges WINTERS INSTRUMENTS MANUFACTURER OF INDUSTRIAL INSTRUMENTATION Technology dampens vibration without the need for liquid filling, so you receive accurate pressure readings from a flutterless pointer No need for draining makes for a no-mess, easier recalibration Reduced pointer flutter extends the life of the gear and pressure gauge PPS Series PST Series PSB Series

Open the catalog to page 1

StabiliZRTM Gauges WINTERS INSTRUMENTS Tel: 1-800-WINTERS / www.winters.com Common Problem Many industrial applications are subject to heavy vibration and pulsation. Using a dry gauge produces unacceptable results as seen to the right. Not only is it impossible to get an accurate reading from the gauge, the life of the gauge is vastly reduced. Liquid filling a gauge works well to dampen vibration but brings its own set of problems - potential leaking and incompatibility with the process. The Winters StabiliZRTM Solution StabiliZRTM gauges are dry gauges that come with a StabiliZRTM movement that...

Open the catalog to page 2

PSB Series

PSB Series
