PN2 NACE Gauge

Product catalog summary

Overview: The PN2 NACE Gauge by Winters Instruments is designed for sour gas applications, adhering to NACE Standards MR0175-2002, with an option for MR0103-2003. It features a pressure release disk, is CRN registered, and comes with a 5-year warranty.

Specifications:

Dial: 4” (100mm) aluminum with black and red markings.
Case: 304 stainless steel.
Lens: Laminated safety glass.
Ring: 304 stainless steel, bayonet type.
Socket: 316L stainless steel.
Connection: Available in 1/4” or 1/2” NPT, bottom or back.
Bourdon Tube: 316 stainless steel.
Movement: Stainless steel.
Pointer: Aluminum, anodized black, micrometer adjustable.
Fill Liquid: Glycerin/H2O.
Temperature Range: -40°F to 150°F (-40°C to 65°C) when filled.
Accuracy: ±1% ANSI/ASME Grade A.
Enclosure Rating: IP65.

Order Codes: The gauge is available in various configurations based on dial size, connection type, and pressure range. Options include dry supply, front or back flange, U-clamp, and more.

Options: Additional options include different fill liquids, maximum adjustable pointer, oxygen cleaning, silicone fill, stainless steel tag plate, StabiliZR™ movement, and test certificates.

Contact Information: Winters Instruments operates globally with offices in Toronto, Buffalo, Houston, Calgary, Shanghai, and Buenos Aires. They are distributed in over 80 countries.

Catalog excerpts

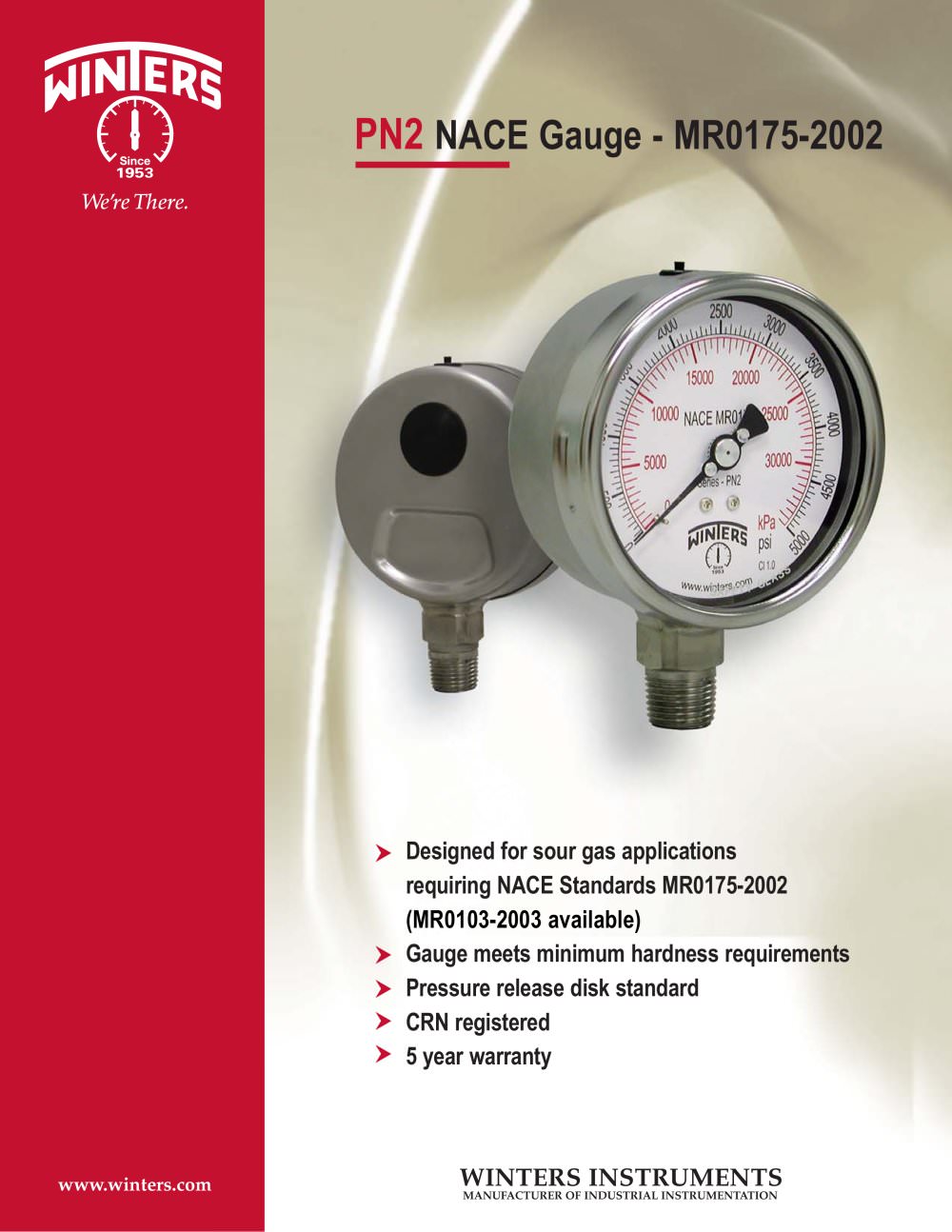

www.winters.com PN2 NACE Gauge - MR0175-2002 Designed for sour gas applications requiring NACE Standards MR0175-2002 (MR0103-2003 available) Gauge meets minimum hardness requirements Pressure release disk standard CRN registered 5 year warranty WINTERS INSTRUMENTS MANUFACTURER OF INDUSTRIAL INSTRUMENTATION
