17" Intel® Core™ i7-1265UE Defence Console Rack Panel PC R17IAD3S-MLA1-89

Product catalog summary

Key Features
The document describes a 17" SXGA TFT LCD Defence Console Rack Panel PC featuring an Intel® Core™ i7-1265UE processor with speeds up to 4.70 GHz. It includes an anti-corrosion housing and fanless design, compliant with MIL-STD-810G standards. The device supports flush rack or rack mount mechanical design (8U) and offers convenient on-screen display controls. It operates on AC 110~240 V power input by default, with an optional isolation DC 9~36 V power input. A built-in light sensor allows for automatic brightness control, and it uses defence-grade power and signal connectors (MIL-DTL-38999/1 & 38999/3).

Introduction
The Winmate Defence Console Rack Panel PC Series is engineered for mission-critical applications in defense and industrial settings. Available in sizes from 15" to 32", these systems are equipped with Intel® processors, fanless anti-corrosion housing, and projective touch screens. They comply with MIL-STD-810G/F and MIL-STD-461E/F/G standards, ensuring reliability in extreme conditions. The rack-mount (8U) design and optional isolation DC power input enhance versatility, making them suitable for command centers, control rooms, and rugged field deployments.

Specifications
Display: 17.0 inches with a resolution of 1280x1024, contrast ratio of 1000:1, and brightness of 350 nits. Viewing angles are 85,85,80,80, with an active area of 337.920x270.336 mm. Optional touch/glass features include AR Protection Glass, 5 Wires Resistive Touch, and EMI Glass.
System Specification: The processor is an Intel® Core™ i7-1265UE with memory options of 8GB (default), 16GB, or 32GB. Storage ranges from 256GB to 2TB. It includes 2 x Intel® Ethernet Controllers and TPM 2.0 for security. Operating systems supported are Windows 11 IoT Enterprise, Windows 11 Pro, and Linux Ubuntu 22.04.
Environment: Operating humidity is 10% to 95% RH, with an operating temperature range of -20~60°C and storage temperature of -30°C~70°C. It meets various military standards for vibration, drop, and TEMPEST compliance.
Compliance: The device complies with MIL-STD 461G and MIL-STD 810H standards, with optional NATO compliance.
Certification: CE, FCC certified.
IO Ports: Includes 1 x USB 2.0 A Type, 2 x RS232, and 1 x LAN, all using MIL-DTL-38999/3 connectors.
Mechanical: Dimensions are 482 x 354 x 80 mm, with VESA mount/rack mount options. The enclosure is metal housing with an aluminum bezel, and it features a fanless cooling system.
Power: Power rating is AC 100~240V, with an optional DC 9~36V input.
Control: Features a 6-key OSD control pad for power, brightness, and menu navigation.

Notes
This document includes a simplified drawing, and some components are not marked in detail. Specifications are subject to change without notice. For customized or optional I/O diagrams, contact the Winmate Sales Team.

Catalog excerpts

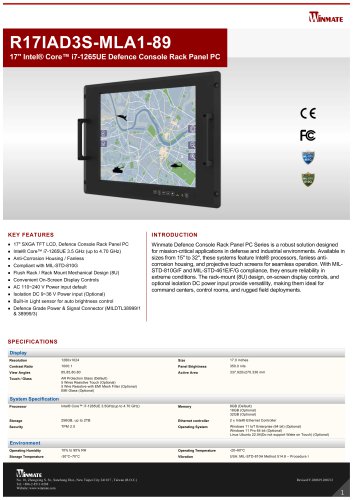

17" Intel® Core™ i7-1265UE Defence Console Rack Panel PC R17IAD3S-MLA1-89-1

R17IAD3SMLA189 17" Intel® Core™ i71265UE Defence Console Rack Panel PC 17" SXGA TFT LCD, Defence Console Rack Panel PC Intel® Core™ i71265UE 3.5 GHz (up to 4.70 GHz) AntiCorrosion Housing / Fanless Compliant with MILSTD810G Flush Rack / Rack Mount Mechanical Design (8U) Convenient OnScreen Display Controls AC 110~240 V Power input default Isolation DC 9~36 V Power input (Optional) Builtin Light sensor for auto brightness control Defence Grade Power & Signal Connector (MILDTL38999/1 & 38999/3) Winmate Defence Console Rack Panel PC Series is a robust solution designed for missioncritical applications in defense and industrial environments. Available in sizes from 15" to 32", these systems feature Intel® processors, fanless anti corrosion housing, and projective touch screens for seamless operation. With MIL STD810G/F and MILSTD461E/F/G compliance, they ensure reliability in extreme conditions. The rackmount (8U) design, onscreen display controls, and optional isolation DC power input provide versatility, making them ideal for command centers, control rooms, and rugged field deployments. SPECIFICATIONS Display Resolution Contrast Ratio Panel Brightness View Angles Active Area Touch / Glass AR Protection Glass (Default) 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) System Specification Processor 8GB (Default) 16GB (Optional) 32GB (Optional) Ethernet controller 2 x Intel® Ethernet Controller Operating System Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) Operating Humidity Operating Temperature Storage Temperature NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 401–Procedure I (optional) USA: MILSTD810H Method 516.8 Drop No. 18, Zhongxing S. St., Sanchong Dist., New Taipei City 241017 , Taiwan (R.O.C.) NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Tel: +886285110288 Procedure II (Optional) Website: www.winmate.com USA: NSA NSTISSAM TEMPEST/192 (optional) NATO: NAT

Open the catalog to page 1

17" Intel® Core™ i7-1265UE Defence Console Rack Panel PC R17IAD3S-MLA1-89-2

Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) Environment Operating Humidity Operating Temperature Storage Temperature USA: MILSTD810H Method 514.8 – Procedure I NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 401–Procedure I (optional) USA: NSA NSTISSAM TEMPEST/192 (optional) NATO: NATO SDIP27 (optional) USA: MILSTD810H (default): Vibration Method 514.8 Humidity Method 507.6 Transit Drop Method516.8 NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II (Optional) NATO (optional): Vibration Test STANAG 4370/AECTP401 Shock STANAG 4370/AECTP402 Procedure I Drop and...

Open the catalog to page 2
