15.6" Intel® Core™ i9/i7/i5/i3 (Alder Lake S) Panel Mount Panel PC W15IAD7T-PMA2

Product catalog summary

Key Features
The document describes a 15.6” Panel Mount PC with a resolution of 1366 x 768. It is powered by the 12th Gen Intel® Core™ Alder Lake S processors, ranging from i3 to i9. The system supports up to 64GB of DDR5 RAM and features integrated dual 2.5 Gigabit Ethernet. It offers multiple display options including DP 1.4a and HDMI 2.0b, and includes various I/O ports such as 4 USB 3.2 Gen2x1 and 2 serial ports. The power input is 12V DC.

Introduction
The Winmate Panel Mount Panel PC Series is designed for industrial applications, offering robust computing performance and versatility. Available in sizes from 6" to 24", these PCs support multiple operating systems and high-resolution displays. They feature extensive I/O options, dual Ethernet, and flexible storage configurations, making them suitable for factory automation, control systems, and interactive kiosks.

Specifications

Display: 15.6 inches, 1366x768 resolution, 500:1 contrast ratio, 400 nits brightness.
System: Supports optional WLAN and Bluetooth. Processors range from Intel® Core™ i3-12100TE to i9-14900T. Memory supports up to 64GB RAM. Storage options range from 128GB to 4TB SSD, with RAID support for additional storage.
Operating System: Options include Windows 11 IoT Enterprise, Windows 11 Pro, and Linux Ubuntu 22.04.
Mechanical: Dimensions are 400 x 280 x 84.5 mm, weighing 3.9 kg. It features a metal housing and fan cooling system.
Environment: Operating humidity is 10% to 90% RH, with an operating temperature range of 0°C to 50°C.
Certification: CE, FCC certified.
IO Ports: Includes power input, USB ports, serial ports, video outputs, audio inputs/outputs, and expansion ports.
Power: Rated at 12V DC with a 220W adapter.

Notes
The document notes that the drawing is simplified and some components are not detailed. Specifications are subject to change without notice, and for customized options, contact the Winmate Sales Team.

Catalog excerpts

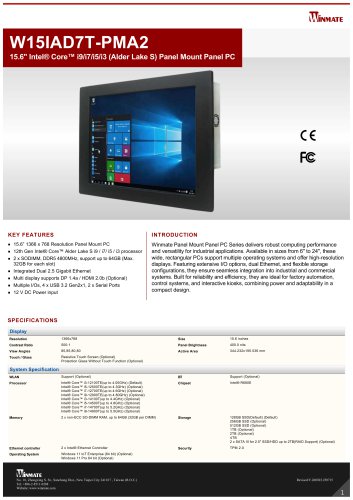

15.6" Intel® Core™ i9/i7/i5/i3 (Alder Lake S) Panel Mount Panel PC W15IAD7T-PMA2-1

W15IAD7TPMA2 15.6" Intel® Core™ i9/i7/i5/i3 (Alder Lake S) Panel Mount Panel PC 15.6” 1366 x 768 Resolution Panel Mount PC 12th Gen Intel® Core™ Alder Lake S i9 / i7/ i5 / i3 processor 2 x SODIMM, DDR5 4800MHz, support up to 64GB (Max. 32GB for each slot) Integrated Dual 2.5 Gigabit Ethernet Multi display supports DP 1.4a / HDMI 2.0b (Optional) Multiple I/Os, 4 x USB 3.2 Gen2x1, 2 x Serial Ports 12 V DC Power input Winmate Panel Mount Panel PC Series delivers robust computing performance and versatility for industrial applications. Available in sizes from 6" to 24", these wide, rectangular PCs support multiple operating systems and offer highresolution displays. Featuring extensive I/O options, dual Ethernet, and flexible storage configurations, they ensure seamless integration into industrial and commercial systems. Built for reliability and efficiency, they are ideal for factory automation, control systems, and interactive kiosks, combining power and adaptability in a compact design. SPECIFICATIONS Display Resolution Contrast Ratio Panel Brightness View Angles Active Area Touch / Glass Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) System Specification WLAN Support (Optional) Support (Optional) Intel® Intel® Intel® Intel® Intel® Intel® Intel® Intel® Core™ i312100TE(up to 4.00GHz) (Default) Core™ i512500TE(up to 4.3GHz) (Optional) Core™ i712700TE(up to 4.6GHz) (Optional) Core™ i912900TE(up to 4.80GHz) (Optional) Core™ i314100T(up to 4.4GHz) (Optional) Core™ i514500T(up to 4.8GHz) (Optional) Core™ i714700T(up to 5.2GHz) (Optional) Core™ i914900T(up to 5.5GHz) (Optional) 2 x nonECC SODIMM RAM, up to 64GB (32GB per DIMM) 128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional) 1TB (Optional) 2TB (Optional) 4TB 2 x SATA III for 2.5" SSD/HDD up to 2TB(RAID Support) (Optional) Ethernet controller 2 x Intel® Ethernet Controller Operating System Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) Metal Housing Mechanical 400 x 280 x 84.5 mm Dimension No. 18, Zhongxing S. St., Sanchong Dist., New Taipei City 241017 , Taiwan (R.O.C.) Panel mount (Default) Tel: +886285110288 Mounting VESA mount (Optional) Website: www.winmate.com Cooling
