15” Intel® Core™ i5 (Tiger Lake) Chassis Wide Temperature Panel PC R15IT7T-CHA3WT

Product catalog summary

Key Features
The Winmate Chassis Panel PC Series features Intel® Core™ Tiger Lake UP3 i5 processors, available with or without vPro technology. It supports a 1024x768 resolution and offers multi-display capabilities through DP, HDMI, LVDS, and eDP interfaces. The system includes multiple I/O options, such as 2 serial ports and 4 USB 3.2 Gen. 1 ports, and operates on a 12V single voltage power input.

Introduction
This series provides robust and versatile solutions for industrial applications, with sizes ranging from 7" to 24". Designed for reliability, these PCs support various operating systems and advanced display interfaces, featuring front IP65 protection. They are suitable for control rooms, kiosks, and factory automation, with a rugged design and wide operating temperature range ensuring durability in challenging environments.

Specifications
Display: The panel has a 15-inch display with a resolution of 1024x768, a contrast ratio of 2500:1, and a brightness of 500 nits. It offers optional resistive touch screen or protection glass without touch function.
System: The PC is powered by an Intel Core i5-1135G7 processor, with memory support up to 64GB. Storage options range from 128GB to 4TB SSDs, with additional SATA III support for 2.5" SSD/HDD. It includes 2 Intel® Ethernet Controllers and TPM 2.0 for security. Operating systems supported include Windows 11 IoT Enterprise, Windows 11 Pro, and Linux Ubuntu 22.04.
Mechanical: The dimensions are 360 x 290 x 70 mm, with a weight of 4.2 kg. It features a VESA mount and metal housing, with a fanless cooling system.
Environment: Operating humidity ranges from 30% to 90% RH, non-condensing, with an operating temperature range of -20°C to 60°C and storage temperature range of -25°C to 65°C.
Certification: The product is CE and FCC certified.

IO Ports
The PC includes a 12V DC power input, 4 USB 3.2 Gen2x1 ports, 2 serial ports, DP1.4 and optional HDMI 2.0 video outputs, audio inputs/outputs, and expansion ports for NVME SSD and Wi-Fi modules. It also features LAN connectivity with Giga LAN and 2.5 Giga LAN RJ45 connectors.

Control and Accessories
The system includes power and reset buttons, a brightness adjustment knob, and accessories such as a 100~240V AC to DC adapter, power cord, and VESA screws.

Notes
The document notes that the drawing is simplified and some components are not detailed. Specifications are subject to change without notice, and for customized or optional I/O diagrams, contact the Winmate Sales Team.

Catalog excerpts

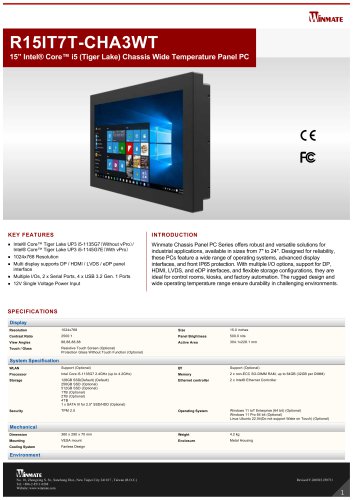

15” Intel® Core™ i5 (Tiger Lake) Chassis Wide Temperature Panel PC R15IT7T-CHA3WT-1

R15IT7T-CHA3WT 15” Intel® Core™ i5 (Tiger Lake) Chassis Wide Temperature Panel PC INTRODUCTION C€F© ■ Intel® Core™ Tiger Lake UP3 i5-1135G7(Without vPro)/ Intel® Core™ Tiger Lake UP3 i5-1145G7E(With vPro) ■ Multi display supports DP / HDMI / LVDS / eDP panel interface ■ Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports ■ 12V Single Voltage Power Input Winmate Chassis Panel PC Series offers robust and versatile solutions for industrial applications, available in sizes from 7" to 24". Designed for reliability, these PCs feature a wide range of operating systems, advanced display interfaces, and front IP65 protection. With multiple I/O options, support for DP, HDMI, LVDS, and eDP interfaces, and flexible storage configurations, they are ideal for control rooms, kiosks, and factory automation. The rugged design and wide operating temperature range ensure durability in challenging environments. Resolution Contrast Ratio View Angles Touch / Glass Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) Panel Brightness 500.0 nits System Specification WLAN Support (Optional) 1 x SATA III for 2.5" SSD/HDD (Optional) Security TPM 2.0 Support (Optional) Memory 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) Ethernet controller 2 x Intel® Ethernet Controller Operating System Windows 11 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) Mounting VESA mount Cooling System Fanless Design Enclosure Metal Housing No. 18, Zhongxing S. St., Sanchong Dist., New Taipei City 241017 , Taiwan (R.O.C.) Website: www.winmate.com

Open the catalog to page 1

15” Intel® Core™ i5 (Tiger Lake) Chassis Wide Temperature Panel PC R15IT7T-CHA3WT-2

Operating Humidity Storage TemperatureCertification 30% to 90% RH, Non-Condensing -25°C to 65°C CertificationIO PortsPower Input Serial Port CE, FCC USB Port Video Expansion Port LAN 1 x Giga LAN RJ45 Connector Brightness Knob 1 x Brightness Adjustment Knob 1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) 1 x PCIe 4.0 (x16) slot (x4 signal) 1 x LED Indicator for power 1 x LED Indicator for storage Button 1 x Power Button Power Cord VESA screws NOTE 1. This is a simplified drawing and some components are not marked in detail. 2. Please contact our sales representative...
