15" Intel® Core™ i5-1235U Front IP65 Panel PC R15IAD3S-IPC3

1 / 2 PagesView full catalog

15" Intel® Core™ i5-1235U Front IP65 Panel PC R15IAD3S-IPC3

Product catalog summary

Key Features

15” display with 1024 x 768 resolution and Front IP65 rating.
Powered by 12th Gen Intel® Core™ i5-1235U processor.
Supports up to 32GB DDR5 4800MHz RAM.
Integrated Dual 2.5 Gigabit Ethernet.
Multiple I/Os including 2 x USB 3.2 Gen2x1 and 2 x Serial Ports.
12 V DC Power input.

Introduction

The Winmate Front IP65 Panel PC Series is designed for robust performance in wet and dusty environments such as factory automation, outdoor kiosks, and poolside installations. Available in sizes from 5.7" to 24", these PCs support various operating systems and processors, featuring intuitive touchscreen options and a compact design for enhanced usability. The IP65-rated front ensures durability and reliability in industrial and outdoor applications.

Specifications

Display: 15.0 inches, 1024x768 resolution, 2000:1 contrast ratio, 300 nits brightness.
System: Intel® Core™ i5-1235U processor, up to 32GB RAM, storage options up to 4TB, dual Intel® Ethernet controllers, TPM 2.0 security.
Operating Systems: Windows 11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 22.04.
Mechanical: Dimensions 400 x 320 x 69 mm, weight 5.1 kg, metal housing, fanless design.
Environment: Operating temperature 0°C to 50°C, storage temperature -10°C to 60°C, operating humidity 10% to 90% RH.
Certification: CE, FCC.
IO Ports: Includes power input, USB ports, serial ports, HDMI, audio, expansion ports, LAN connectors, and LED indicators.
Power: 12V DC, 120W adapter.

Notes

This is a simplified drawing; some components are not marked in detail.
Contact sales for further product information or customized options.
Specifications are subject to change without prior notice.

Catalog excerpts

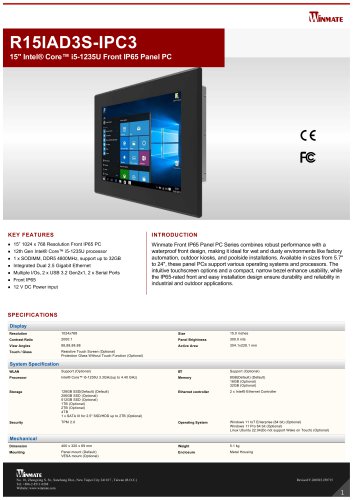

15" Intel® Core™ i5-1235U Front IP65 Panel PC R15IAD3S-IPC3-1

R15IAD3S-IPC3 15” Intel® Core™ i5-1235U Front IP65 Panel PC INTRODUCTION C€F© ■ 15” 1024 x 768 Resolution Front IP65 PC ■ 12th Gen Intel® Core™ i5-1235U processor ■ Integrated Dual 2.5 Gigabit Ethernet ■ Multiple I/Os, 2 x USB 3.2 Gen2x1,2 x Serial Ports Winmate Front IP65 Panel PC Series combines robust performance with a waterproof front design, making it ideal for wet and dusty environments like factory automation, outdoor kiosks, and poolside installations. Available in sizes from 5.7" to 24", these panel PCs support various operating systems and processors. The intuitive touchscreen options and a compact, narrow bezel enhance usability, while the IP65-rated front and easy installation design ensure durability and reliability in industrial and outdoor applications. Resolution Contrast Ratio View Angles Touch / Glass Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) Panel Brightness 300.0 nits Ethernet controller System Specification WLAN Support (Optional) Processor Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) Storage 128GB SSD(Default) (Default) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) Security TPM 2.0 Support (Optional) 2 x Intel® Ethernet Controller Operating System Windows 11 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) Enclosure Metal Housing Mounting Panel mount (Default) VESA mount (Optional)

Open the catalog to page 1

15" Intel® Core™ i5-1235U Front IP65 Panel PC R15IAD3S-IPC3-2

Cooling System Environment Fanless Design Operating Humidity Storage Temperature IO Ports Power Input Serial Port M.2 2280 M-Key Slot (for NVME SSD) M.2 2230 E-KeySlot (for Wi-Fi Module) LED Indicator for power LED Indicator for storage Brightness Knob 1 x Brightness Adjustment Knob Control Button 1 x Power Button Accessory Accessory 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips Power Power Rating 12V DC NOTE 1 .This is a simplified drawing and some components are not marked in detail. 2. Please contact our sales representative if you need further product information. 3. All...

Open the catalog to page 2
