10.4inch Waterproof Tablet with Intel® Pentium® N4200 R10IP8M-RTT2GP

Product catalog summary

Key Features
The tablet is equipped with an Intel® Pentium® N4200 Apollo Lake processor and is waterproof. It features a 10.4" 1024 x 768 resolution transflective TFT-LCD panel, a plastic front cover, and an Alu-Mg alloy rear cover with protective rubber. It includes a Trusted Platform Module (TPM) V2.0, built-in wireless, Bluetooth, GPS, and optional 4G LTE. An adjustable kickstand handle is also available as an option.

Introduction
The Winmate Ultra Rugged Tablet Series is designed for challenging industrial and field environments, offering durability and advanced performance. Available in sizes from 8.4" to 10.4", these tablets have robust Alu-Mg alloy housings with protective rubber, meeting MIL-STD-810G standards for shock, vibration, and drop resistance. They provide IP-rated water and dust protection, TPM V2.0, built-in wireless, GPS, and optional 4G LTE for seamless connectivity and security. Optional adjustable kickstand handles enhance mobility, making them ideal for field services, transportation, and industrial operations.

Specifications
Display: 10.4 inches, 1024x768 resolution, 1000:1 contrast ratio, 700 nits brightness, optional resistive touch screen.
System: Intel Pentium N4200 processor, 4GB DDR3L memory (8GB optional), 128GB M.2 SSD storage (up to 512GB optional), TPM 2.0 security, Windows 10 IoT Enterprise or Linux Ubuntu 20.04 OS.
Connectivity: Wi-Fi, Bluetooth, optional 4G/LTE or 3G, GPS support with optional GLONASS, Galileo, BeiDou.
Mechanical: Dimensions 266 x 224 x 50.4 mm, weight 2.4 kg, VESA mount, magnesium alloy & ABS+PC enclosure, fanless design.
Environment: Operating humidity 10% to 90% RH, operating temperature -10°C to 50°C (battery mode), -20°C to 60°C (AC mode), storage temperature -20°C to 60°C, MIL-STD-810G shock and vibration standards, IP54 rating.

Certification
CE, FCC certified.

IO Ports
Includes 2 x USB3.2 Gen1x1 (Type-A), 1 x RS232/422/485 serial port, 1 x Micro SD card slot, 1 x Micro SIM card slot, audio combo connector, 2 speakers, 1 x Giga LAN RJ45 connector, and multiple LED indicators.

Accessories
Comes with a 100~240V AC to 19V DC 65W adapter, power cord, 11.1V/5200mAh battery, quick start guide, and stylus. Optional accessories include an adjustable kickstand, desktop docking station, vehicle mounting charger kit, car power charger, hand strap, shoulder strap, soft shell case, carry bag, 2D barcode reader, and cameras (2MP front, 5MP rear).

Catalog excerpts

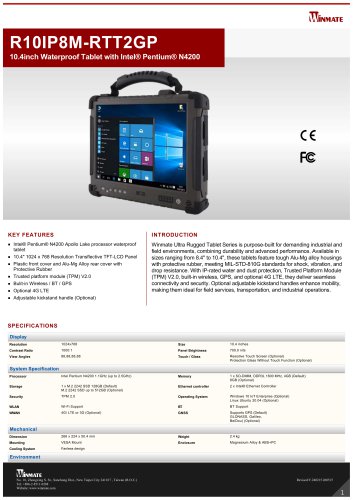

10.4inch Waterproof Tablet with Intel® Pentium® N4200 R10IP8M-RTT2GP-1

R10IP8MRTT2GP 10.4inch Waterproof Tablet with Intel® Pentium® N4200 Intel® Pentium® N4200 Apollo Lake processor waterproof tablet 10.4" 1024 x 768 Resolution Transflective TFTLCD Panel Plastic front cover and AluMg Alloy rear cover with Protective Rubber Trusted platform module (TPM) V2.0 Bulitin Wireless / BT / GPS Optional 4G LTE Adjustable kickstand handle (Optional) Winmate Ultra Rugged Tablet Series is purposebuilt for demanding industrial and field environments, combining durability and advanced performance. Available in sizes ranging from 8.4" to 10.4", these tablets feature tough AluMg alloy housings with protective rubber, meeting MILSTD810G standards for shock, vibration, and drop resistance. With IPrated water and dust protection, Trusted Platform Module (TPM) V2.0, builtin wireless, GPS, and optional 4G LTE, they deliver seamless connectivity and security. Optional adjustable kickstand handles enhance mobility, making them ideal for field services, transportation, and industrial operations. SPECIFICATIONS Display Resolution Contrast Ratio Panel Brightness View Angles Touch / Glass Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) 1 x SODIMM, DDR3L 1600 MHz, 4GB (Default) 8GB (Optional) Ethernet controller 2 x Intel® Ethernet Controller Operating System Windows 10 IoT Enterprise (Optional) Linux Ubuntu 20.04 (Optional) WiFi Support Supports GPS (Default) GLONASS, Galileo, BeiDou) (Optional) VESA Mount Magnesium Alloy & ABS+PC Cooling System Fanless design System Specification Environment Operating Humidity Operating Temperature 10°C to 50°C (14°F to 122°F) (Battery mode) 20°C to 60°C (4°F to 158°F) (AC mode)" Storage Temperature No. 18, Zhongxing S. St., Sanchong Dist., New Taipei City514.6 241017Procedure , Taiwan (R.O.C.) MILSTD810G Method I Vibration Tel: +886285110288 MILSTD810G Method 516.6 Procedure IV DropWebsite: www.winmate.com

Open the catalog to page 1

10.4inch Waterproof Tablet with Intel® Pentium® N4200 R10IP8M-RTT2GP-2

Operating Humidity 10% to 90% RH, Non-Condensing Storage TemperatureVibrationDropCertificationCertificationIO PortsUSB Port SD Card Slot AudioIndicator -20°C to 60°C MIL-STD-810G Method 514.6 Procedure I MIL-STD-810G Method 516.6 Procedure IV iHiNMATE Operating Temperature -10°C to 50°C (14°F to 122°F) (Battery mode) Shock MIL-STD-810G Method 516.6 Procedure I 1 x Micro SD card Slot 1 x Audio Combo Connector (Mic in / Line Out) 1 x LED Indicator for power 1 x LED Indicator for HDD 1 x LED Indicator for Battery status 1 x LED Indicator for Wifi Serial Port SIM Card Slot LAN 1 x Micro SIM card...

Open the catalog to page 2
