10.4" Intel® Celeron® N6211 Chassis Wide Temperature Panel PC R10IE3S-CHA1WT

Product catalog summary

Key Features
The document describes a 10.4” TFT LCD Panel PC powered by an Intel® Celeron® Elkhart Lake N6211 Processor. It supports up to 16GB DDR4 memory, features 2 Gigabit Ethernet ports, and offers multiple connectivity options including SATA III, COM, USB 3.2 Gen 2x1, and USB 2.0. The device is designed with front IP65 protection and is suitable for wide temperature environments.

Introduction
The Winmate Chassis Panel PC Series is designed for industrial applications, offering sizes from 7" to 24". These PCs are built for reliability with a variety of operating systems, advanced display interfaces, and robust protection. They are ideal for use in control rooms, kiosks, and factory automation, with a rugged design that withstands challenging environments.

Specifications
Display: The panel features a resolution of 800x600, a contrast ratio of 700:1, and a brightness of 400 nits. It offers optional resistive touch screen functionality.
System Specification: The system supports optional WLAN and Bluetooth, with a default memory of 4GB, expandable up to 16GB. Storage options range from 128GB to 2TB SSDs. It includes 2 Intel® Ethernet Controllers and supports various operating systems including Windows 11 and Linux Ubuntu.
Mechanical: The device measures 270 x 225 x 60 mm and weighs 2.6 kg. It features a VESA mount and a fanless design.
Environment: It operates in humidity levels of 30% to 90% RH and temperatures from -20°C to 60°C.
Certification: The device is CE and FCC certified.
IO Ports: Includes power input, USB ports, serial ports, HDMI, audio, expansion ports, LAN connectors, and LED indicators.

Notes
The document notes that specifications are subject to change and advises contacting sales representatives for further information. The product is a standard model, with options for customization available through the Winmate Sales Team.

Catalog excerpts

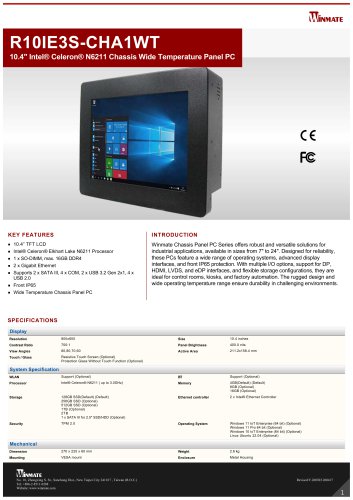

10.4" Intel® Celeron® N6211 Chassis Wide Temperature Panel PC R10IE3S-CHA1WT-1

R10IE3S-CHA1WT 10.4” Intel® Celeron® N6211 Chassis Wide Temperature Panel PC ■ Intel® Celeron® Elkhart Lake N6211 Processor ■ Wide Temperature Chassis Panel PC Winmate Chassis Panel PC Series offers robust and versatile solutions for industrial applications, available in sizes from 7" to 24". Designed for reliability, these PCs feature a wide range of operating systems, advanced display interfaces, and front IP65 protection. With multiple I/O options, support for DP, HDMI, LVDS, and eDP interfaces, and flexible storage configurations, they are ideal for control rooms, kiosks, and factory automation. The rugged design and wide operating temperature range ensure durability in challenging environments. Resolution Contrast Ratio View Angles Touch / Glass Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) Panel Brightness 400.0 nits System Specification WLAN Support (Optional) Processor Intel® Celeron® N6211 ( up to 3.0GHz) Storage Security 128GB SSD(Default) (Default) 1 x SATA III for 2.5" SSD/HDD (Optional) TPM 2.0 Ethernet controller Support (Optional) 2 x Intel® Ethernet Controller Operating System Windows 11 IoT Enterprise (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) Mounting VESA mount Enclosure Metal Housing No.18,Zhongxing S. St., SanchongDist.,NewTaipeiCity 241017,Taiwan (R.O.C.) Tel: +886-2-8511-0288 Website: www.winmate.com

Open the catalog to page 1

10.4" Intel® Celeron® N6211 Chassis Wide Temperature Panel PC R10IE3S-CHA1WT-2

Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) Mechanical Dimension VESA mount Metal Housing Cooling System Fanless Design Operating Temperature Environment Operating Humidity Storage Temperature Certification Certification IO Ports Power Input Serial Port Expansion Port 1 x M.2 2242 BKey Slot (for SATA III SSD) 1 x M.2 2230 EKey Slot (for WiFi module) 1 x LED Indicator for power 1 x LED Indicator for storage Brightness Knob 1 x Brightness Adjustment Knob Control Button 1 x Power Button 1 x Reset Button Accessory Accessory 100~240V AC to DC Adapter Power Cord VESA...

Open the catalog to page 2
